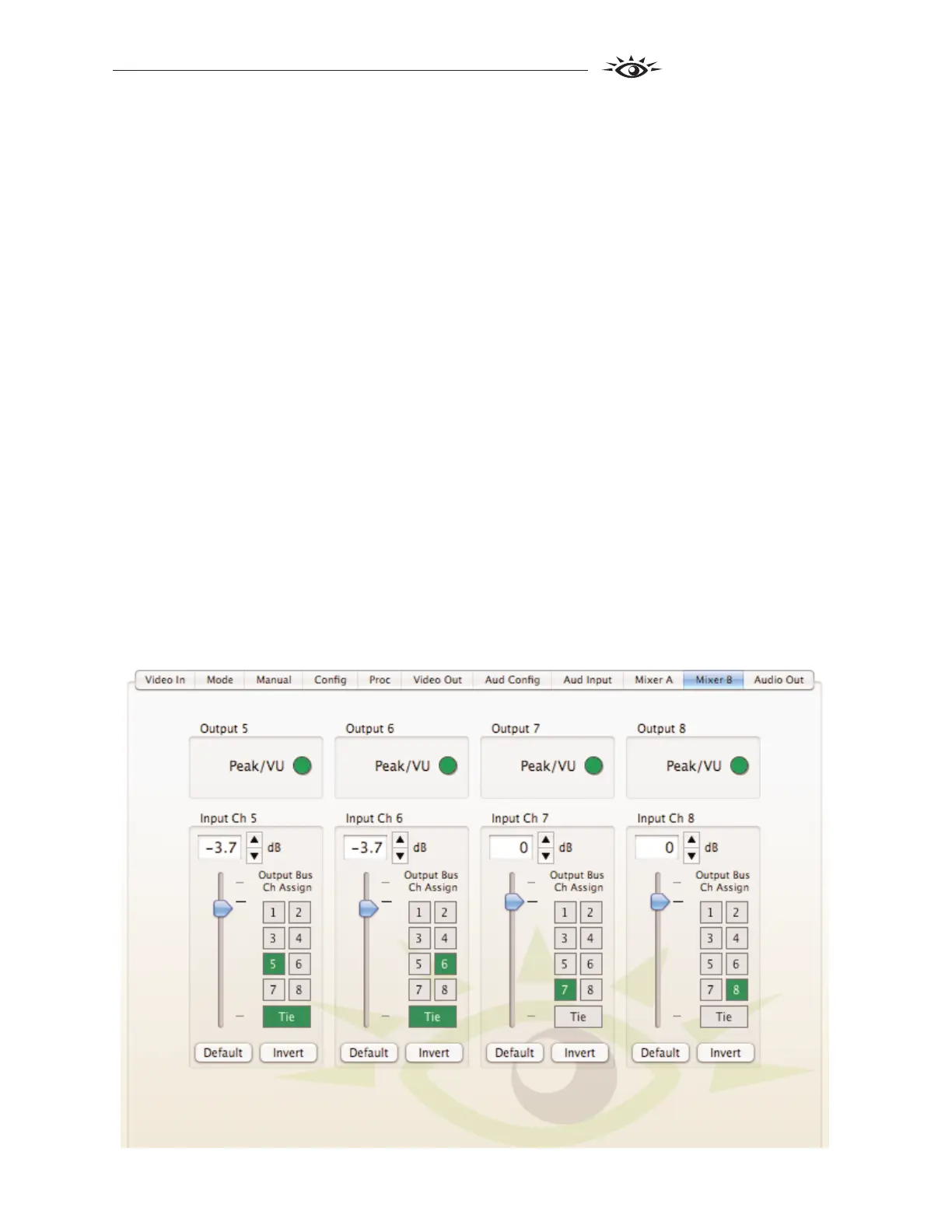

Mixer B

For Channels 5 – 8, use the Mixer B menu as follows:

• Outputs 5-8 – provides Peak/VU status, with the same methodology as the front

panel VU indicators, but on a per-channel basis, rather than per- channel pair.

Peak/VU indicators illuminate red when the audio level on that channel exceeds

the headroom level set by the user with the Peak Indicator control in the Audio

Config Menu Additionally, the VU indicator illuminates orange when the output

is above 0 VU, illuminates green when the output is above -20 VU, and doesn’t

illuminate when the output is below -20 VU.

• Inputs Ch 5-8 – these controls provide mixing and output level control for audio

channels 5 to 8 of the selected audio group. The text field at the top of the control

indicates the amount of gain applied to the channel in dB. The gain level can be

adjusted from -70 dB to +12 dB by moving the vertical slider control, using the up

down arrows, or entering a desired level directly in the field and pressing the

Enter key on your computer. On the right hand side of the control are Output

Bus Ch Assign buttons. These buttons control which analog output channel the

audio channels are mapped to.

The Tie function is used for stereo operation where gain of a pair of channels is

usually desired to be the same. Selecting the Tie button in Input Ch 5 or Input

Ch 6 will tie the two controls together. Selecting the Tie button in Input Ch 7 or

Input Ch 8 will tie the controls for these channels together.

Click the Default button to return to the default value.

Click the Invert button to invert the phase of the audio content.
