BrightEye 90-A HD Up/Down/Cross Converter and ARC with Analog Audio

BrightEye 90-A - Page 14

USING THE BRIGHTEYE CONTROL APPLICATION

The BrightEye PC and BrightEye Mac applications included on CD-ROM are

designed to allow you to configure and control the BrightEye 90-A from a

personal computer. Installation and instructions for using this software

application are given in the PDF manual on disk.

BrightEye PC/Mac Control application software is included on CD that came with

your unit, or the application can be downloaded here:

http://www.ensembledesigns.com/support/brighteye-support/

If the BrightEye 90-A is connected to a computer running this software, the

following menus are available for controlling and monitoring the unit.

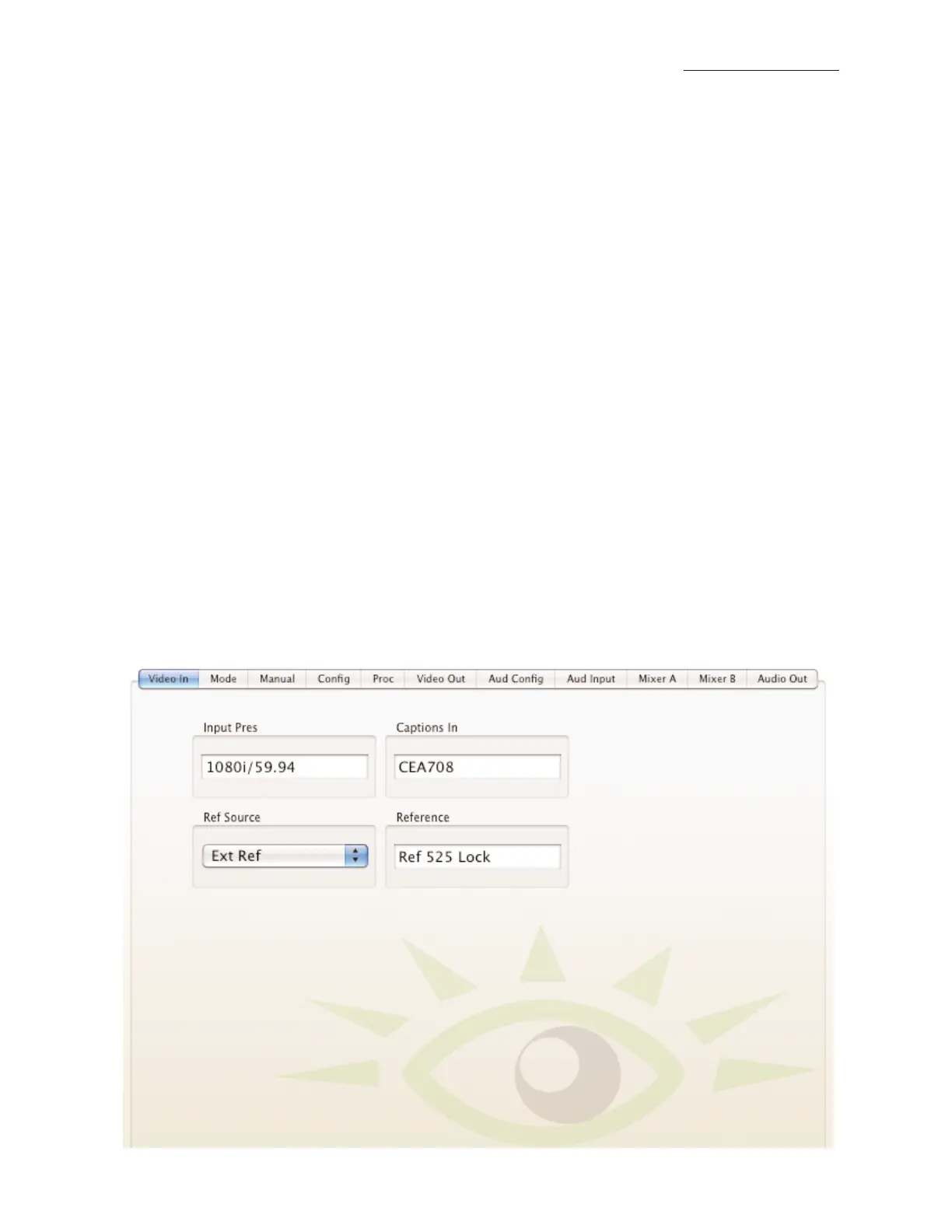

Video In

• Input Pres – indicates the status of the video input (720p/50, 720p/59.94,

720p/60, 1080i/50, 1080i/59.94, 1080i/60, 1080p/25, 1080p/23.98, 1080p/24,

1080sF/25, 1080sF/23.98, 1080sF/24, No Input, or Unknown.).

• Captions In – indicates the presence of closed captioned material on the

input signal (None, Line 21, CEA 708). The BrightEye 90-A translates

between CEA-608 and CEA-708 standards for closed captioning as needed.

• Ref Source – use this control to set the reference input source. Video In

Ref indicates that the video output will be locked to the incoming video

signal. Ext Ref indicates that the video output will be locked to the external

reference input.

• Reference – indicates the status of a reference video presence

(Ref Mismatch, Ref Unlocked, Ref TLS Lock, No Reference, Ref 525

Lock, Ref 625 Lock).
