OPERATION

Control and operation of the BrightEye 76 unit is performed from the front panel

or remotely from a networked PC with the BrightEye PC or Mac Control application.

Some control settings are only available with BrightEye PC or Mac. These parameters

cannot be monitored or controlled from the front panel.

Front Panel Controls and Indicators

The front panel of the converter, shown below, provides status and control indica-

tors for the module.

STATUS INDICATORS

The following status indicators are provided on the front panel:

Illuminates green when a valid analog video signal in the currently selected

format is detected on the corresponding BNC connector.

Ref (Reference)

Illuminates green when a valid NTSC or PAL reference is detected on the

rear panel Ref In BNC connector.

Laser

Illuminates green when an optical signal is detected on the HD/SD Optical

Out connector. Illuminates red if a failure is detected on the optical output.

Source Select

The currently selected video input format illuminates green.

TBC

Illuminates green when the TBC is enabled.

Vid Gain

Illuminates green when gain is set to its nominal or unity setting, or red

when set to other than unity.

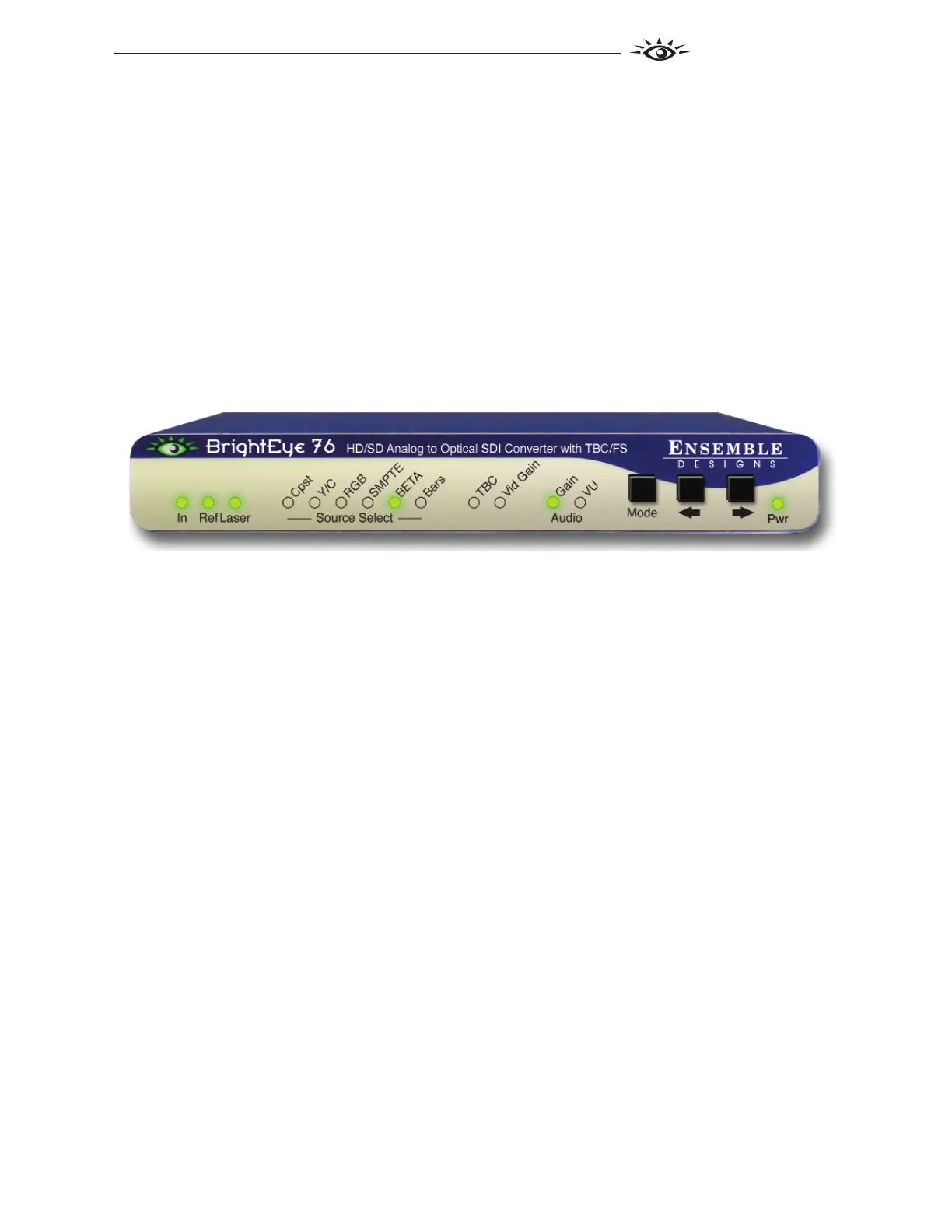

BrightEye 76 Front Panel
