BrightEye 72 and 72-F - Page 5

3G/HD/SD SDI to HDMI Converter User Guide

BrightEye 72 and 72-F

Audio Metering Overlay and Disembedding

The BrightEye 72/72-F has a sophisticated audio metering overlay capability

that uses four groups of four-channel on-screen VU meters. It includes a hanging

peak level indicator and a user-adjustable peak (headroom) indicator. You can

disembed and visually monitor up to sixteen channels of audio. Up to eight

channels of audio can be passed through the HDMI output.

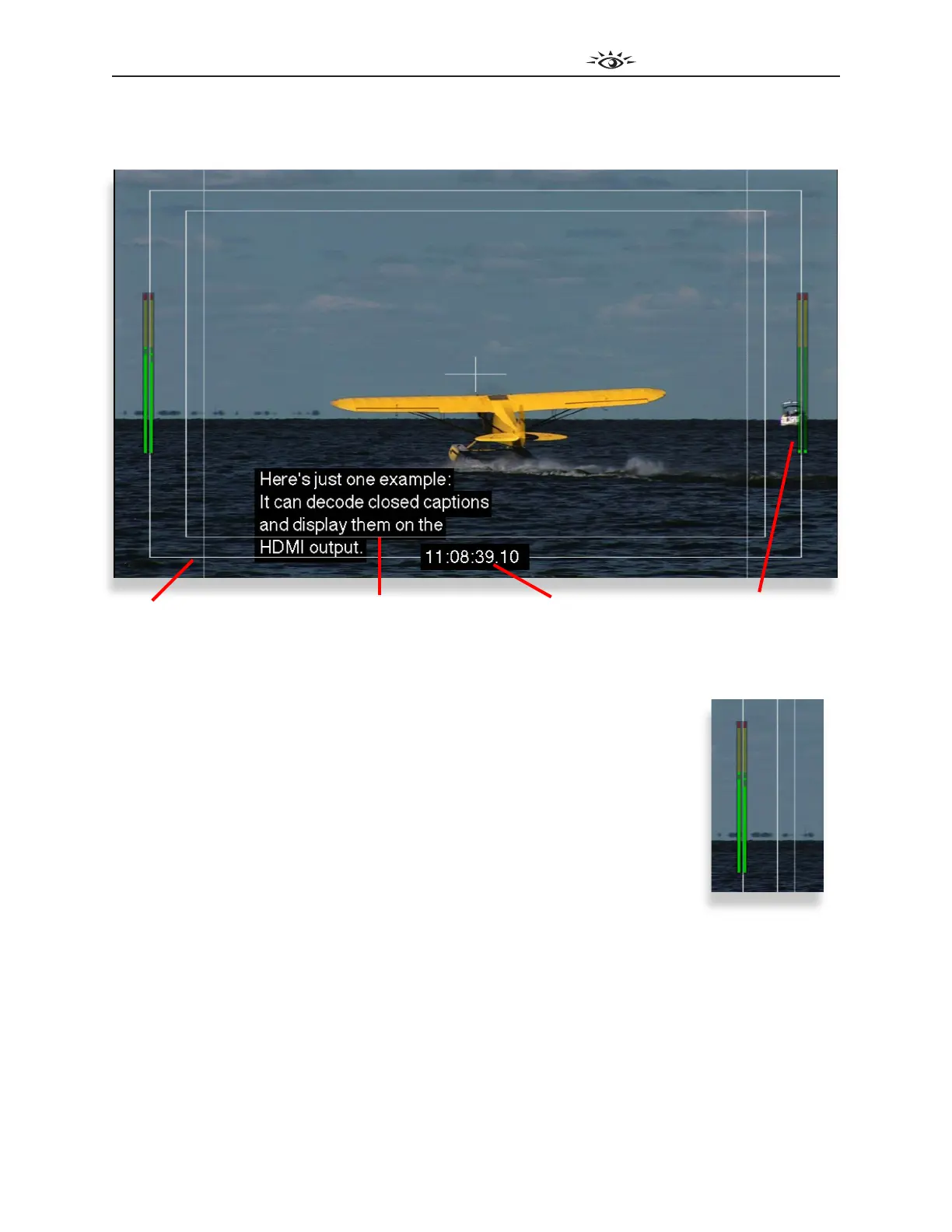

HDMI monitor output example illustrating audio metering overlay, graticule overlay, closed caption

decoding, and timecode reader.

Graticule Overlay

A built-in graticule generator puts up Safe Title and Safe Action reference markers as well as SD Safe

markers on HD signals. There are thin lines running from top to bottom that indicate the SD protect

area. These graticule reference markers aid in seeing how content is aligned, facilitating ﬁlm transfer,

post production and quality control measurements relating to picture location for both the 4:3 and

16:9 aspect ratios. Safe Title displays the safe title boxes. SD Protect Only displays only the SD Protect

area without displaying the safe title boxes. You can adjust the color and intensity of the graticules or

turn graticules oﬀ.

Audio metering

overlay

Audio MetersOpen Captions TimecodeGraticule
