BrightEye 72 and 72-F - Page 19

3G/HD/SD SDI to HDMI Converter User Guide

BrightEye 72 and 72-F

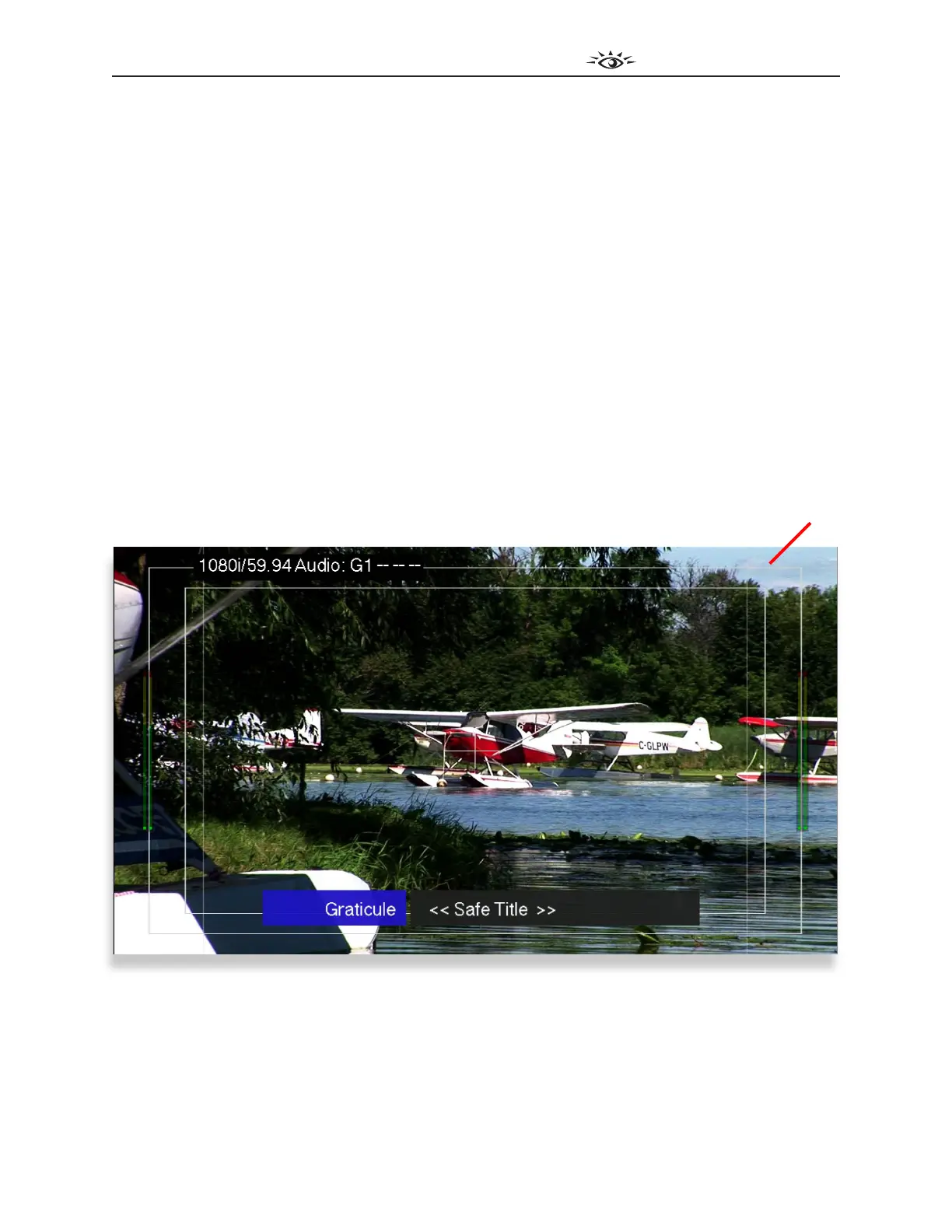

Example of on-screen display while adjusting the Graticule control from the front panel

Example 3

The image below is showing the Graticule control. This example shows what you would see if you

pressed the Mode button on the front panel until the Graticule LED started blinking. Graticule lines

are overlayed on top of the video. White graticule is shown below.

Note: If the control Include in OSD in the Color Correct menu has been turned on,

you will need to press the Mode button an additional six times to move from the

Hue control to the Caption Display control. These additional six presses will step

through the six Color Correction adjustments in the on-screen display, although no

LEDs will blink on the front panel for these six controls.

Just like in the previous examples, the editable parameter section is indicated in the blue box. To the

right of that is the speciﬁc value that you can adjust. Pressing the Left Arrow decreases the value

while pressing the Right Arrow increases the value.

Again, this example is displaying the input status in the upper left area of the monitor, indicating input

format, frequency, and the presence of embedded audio. This example also includes audio meters.

Graticule
