OPERATION

Control and operation of the BrightEye 24 is performed from the front panel or

with the BrightEye PC Control application.

Some control settings are only available with BrightEye PC. These parameters cannot

be monitored or controlled with the front panel.

Front Panel Controls and Indicators

The front panel, as shown in the figure below, provides status indicators and

control over video and audio output.

Status Indicators

The following status indicators are provided on the front panel:

This indicator illuminates green when a valid SDI signal is detected.

Analog Reference Level

The currently selected analog reference level (-10 dBu or +4 dBu) illuminates

green.

Group

The AES group (1, 2, 3, or 4) currently selected for disembedding and digital to

analog conversion illuminates green when the selected group contains audio, and

illuminates red when the selected group does not contain audio.

Ch 1/2 and Ch 3/4

VU output level and the status of the Gain adjustment for each of these channel

pairs is indicated by the state the VU and Gain indicators. The VU indicator illu-

minates red when the audio level exceeds the headroom level set by the user

(with the Peak Indicator control in BrightEye PC.) Additionally, the VU

indicator illuminates orange when the output is above 0 VU, illuminates green

when the output is above -20 VU, and doesn’t illuminate when the output is

below -20 VU. The Gain indicator illuminates red when the gain level has been

adjusted off from unity by the user. The 0 VU point corresponds in the digital

domain to the digital reference level (-18 or -20 dBFS) and in the analog domain

to the analog reference level (-10 or +4 dBu.)

Pwr (Power)

Illuminates green when power is applied to the converter and the internal voltage

regulator is functioning correctly.

BrightEye 24

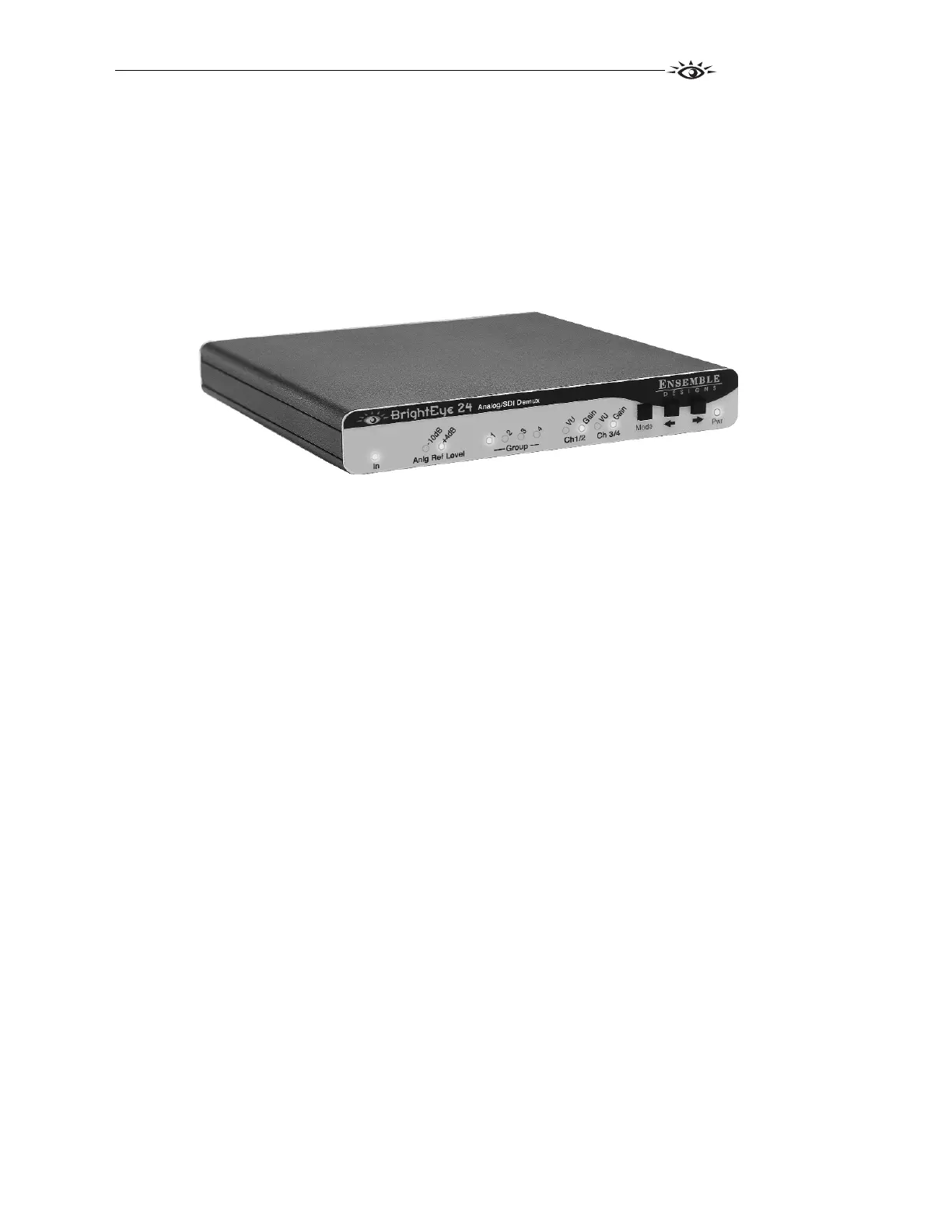

BrightEye 24 Front Panel

NOTE:
