BrightEye 2

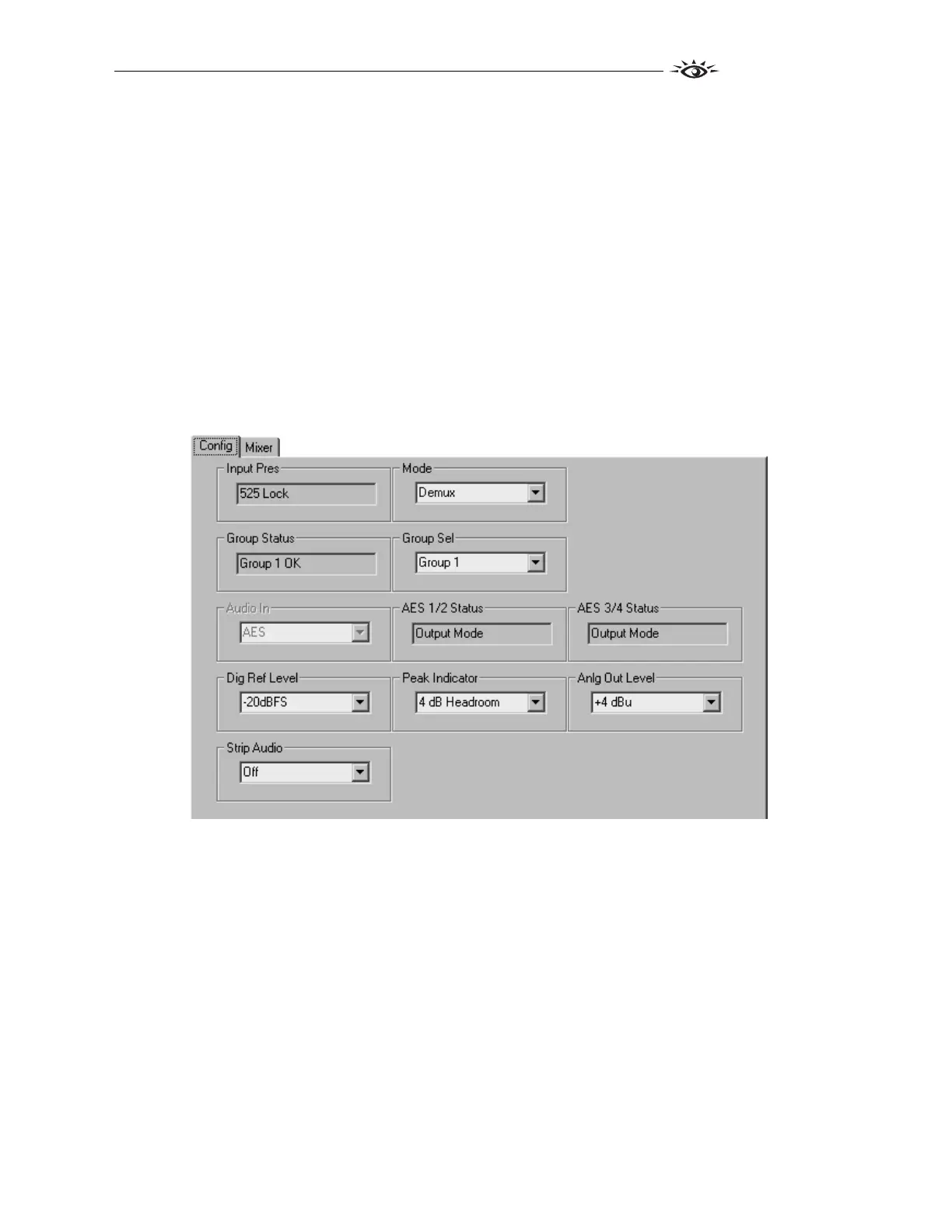

• AES 1/2 and AES 3/4 Status – these controls indicate the status/behavior

of the AES I/O connections. They show: No Input, Audio Present, Data

Present, or Output Mode.

• Dig Ref Level – selects the digital reference level. This pulldown lets you

choose between: -20 dBFS or -18 dBFS.

• Peak Indicator – selects the amount of headroom to use in determining

peak levels. This pulldown lets you chose between: Clipping, 2 dB

Headroom, 4 dB Headroom, 6 dB Headroom, 8 dB Headroom, or 10

dB Headroom.

• Anlg Out Level – selects analog output reference level. This pulldown lets

you chose between: -10 dBu or +4 dBu.

• Strip Audio – when On, all audio and EDH is stripped from the incoming

stream. Off leaves audio and EDH as it comes in on the input signal.

BrightEye-9
