USING THE BRIGHTEYE CONTROL APPLICATION

The BrightEye PC and BrightEye Mac applications included on CD-ROM are

designed to allow you to configure and control the BrightEye 11 from a personal

computer. Installation and instructions for using this software application are

given in the PDF manual on disk.

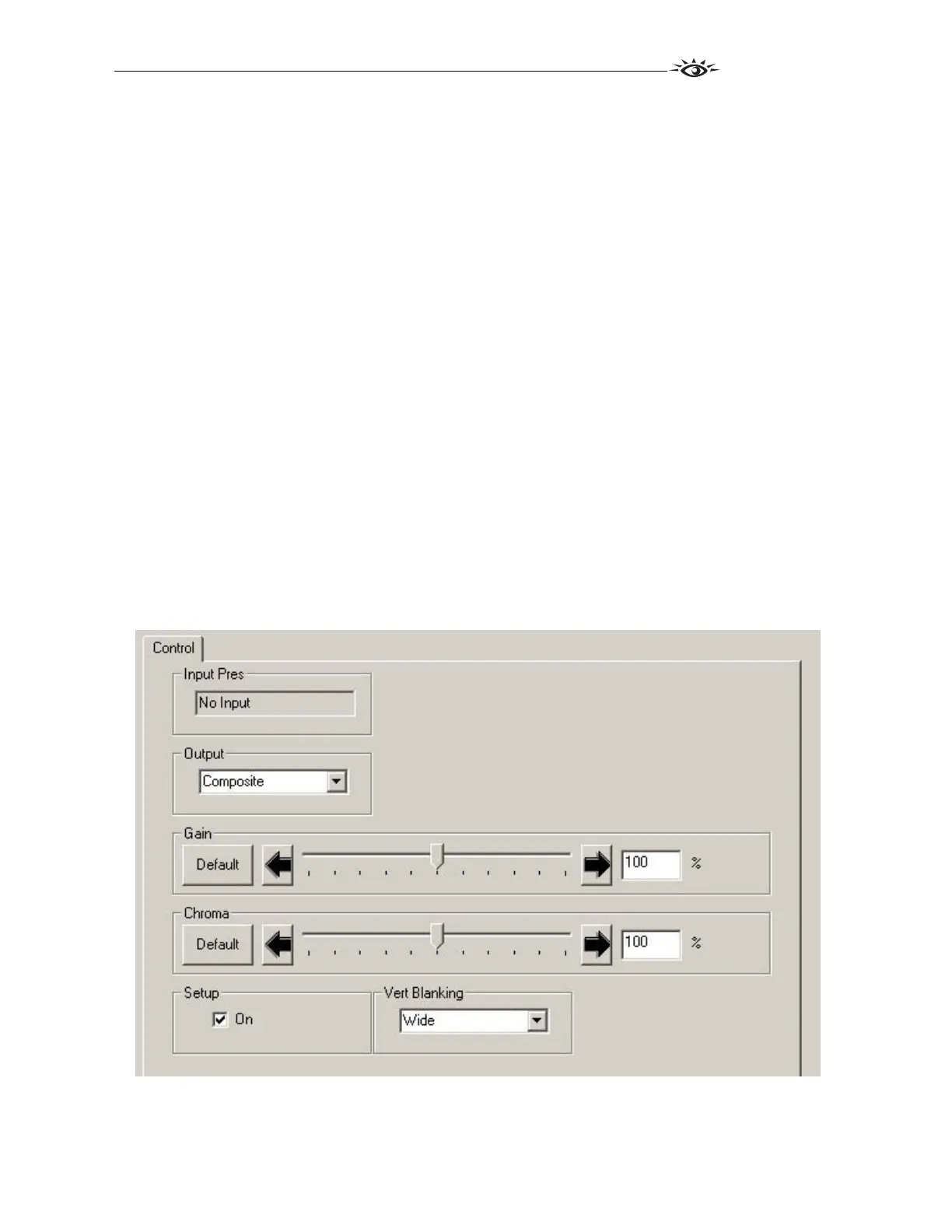

If the BrightEye 11 is connected to a computer running this software, the

following menu is available for controlling and monitoring the unit.

Control Menu

• Input Pres – gives read-only status indication of input presence..

• Output – select the type of output signal from the unit from the Output

pulldown as Composite (S-Video), Beta, SMPTE, or RGB.

• Gain – adjusts the gain of the analog video signals in the Digital-to-Analog

converter and encoder circuitry of the converter. The front panel indicator

will light green when the gain is set to its nominal or unity setting.

This is the setting which will produce correct analog output levels from a

digital input source which itself is at proper level. The indicator will light

red whenever the control is adjusted either higher or lower than the

nominal setting. The gain can be reset to nominal by selecting the Default

button.

• Chroma – adjust the amount of chroma on the output signal in percent as

required. This control is only available on BrightEye PC or Mac. There is no

front panel control or indication of this setting.
