BrightEye 11

BrightEye-5

REAR CONNECTORS

All connections to the BrightEye 11 converter are made on the rear of the unit.

Refer to the illustration below.

Power Connection

Connect a modular power supply to the 12 volt DC power input connection on the

far left of the unit. Use the locking ring to secure it.

USB Connector

The USB connector is used to provide more comprehensive control, diagnostics,

and upgrades to the unit from a PC or Mac. Use the BrightEye Control applica-

tion included on CD-ROM to make adjustments as described in the OPERATION

section of this user guide.

Input/Output BNCS

There are five rear BNC connectors which are used as inputs and outputs as

follows:

SDI In

This BNC input accepts a SMPTE 259M serial digital component signal, 525 or

625 line standard.

SDI Out

The Serial Digital Component signal from the reclocking circuitry is presented on

this connector. This output conforms to the ITU-R 601 standard for serial digital

video, with SMPTE 259M serialization at 270 Mb/s.

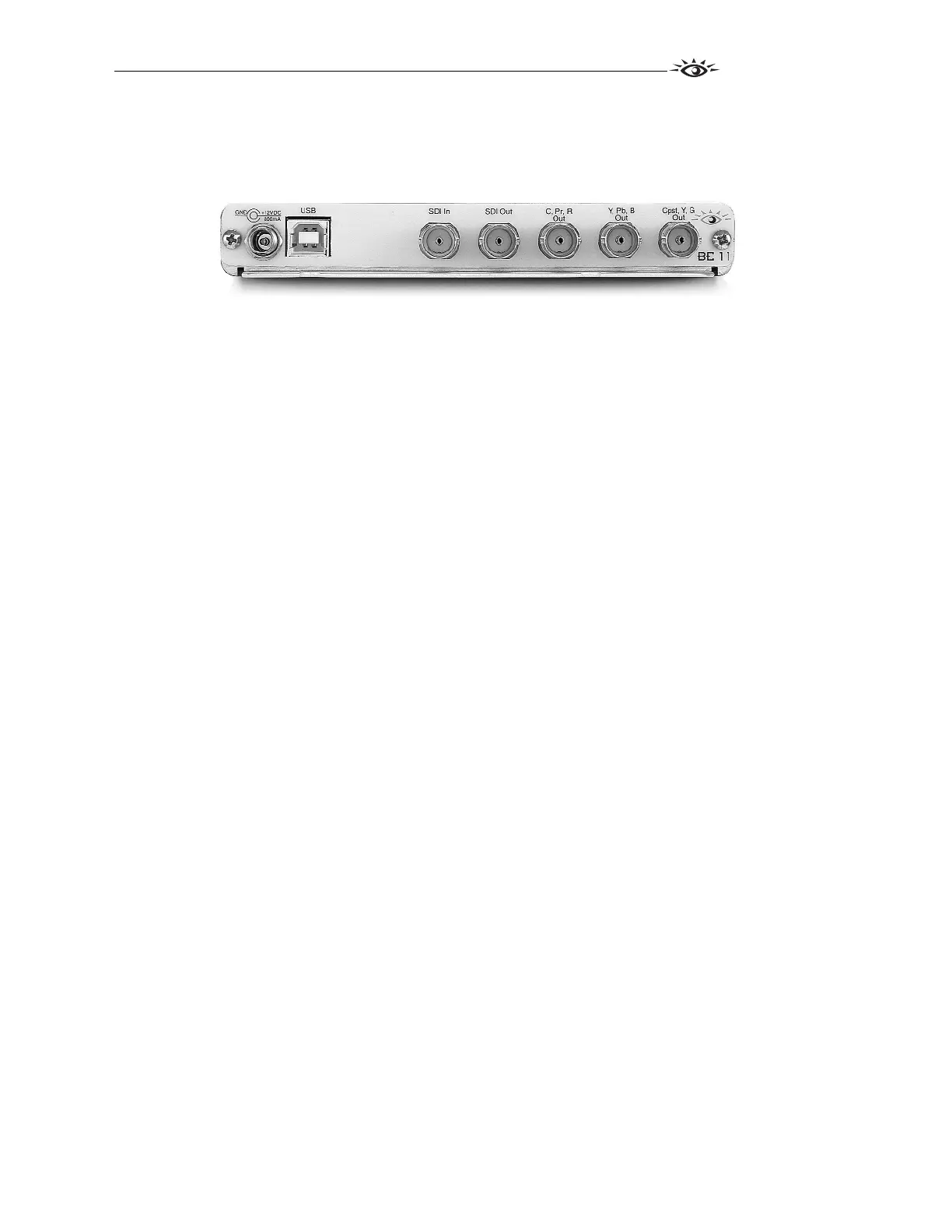

BrightEye 11 Rear Connectors
