TM
BrightEye 11-HD
APPLICATIONS
BrightEye 11-HD can be utilized in a number of different applications where
conversion of SDI to analog video is required. Examples of possible uses for
BrightEye 11-HD are given below.

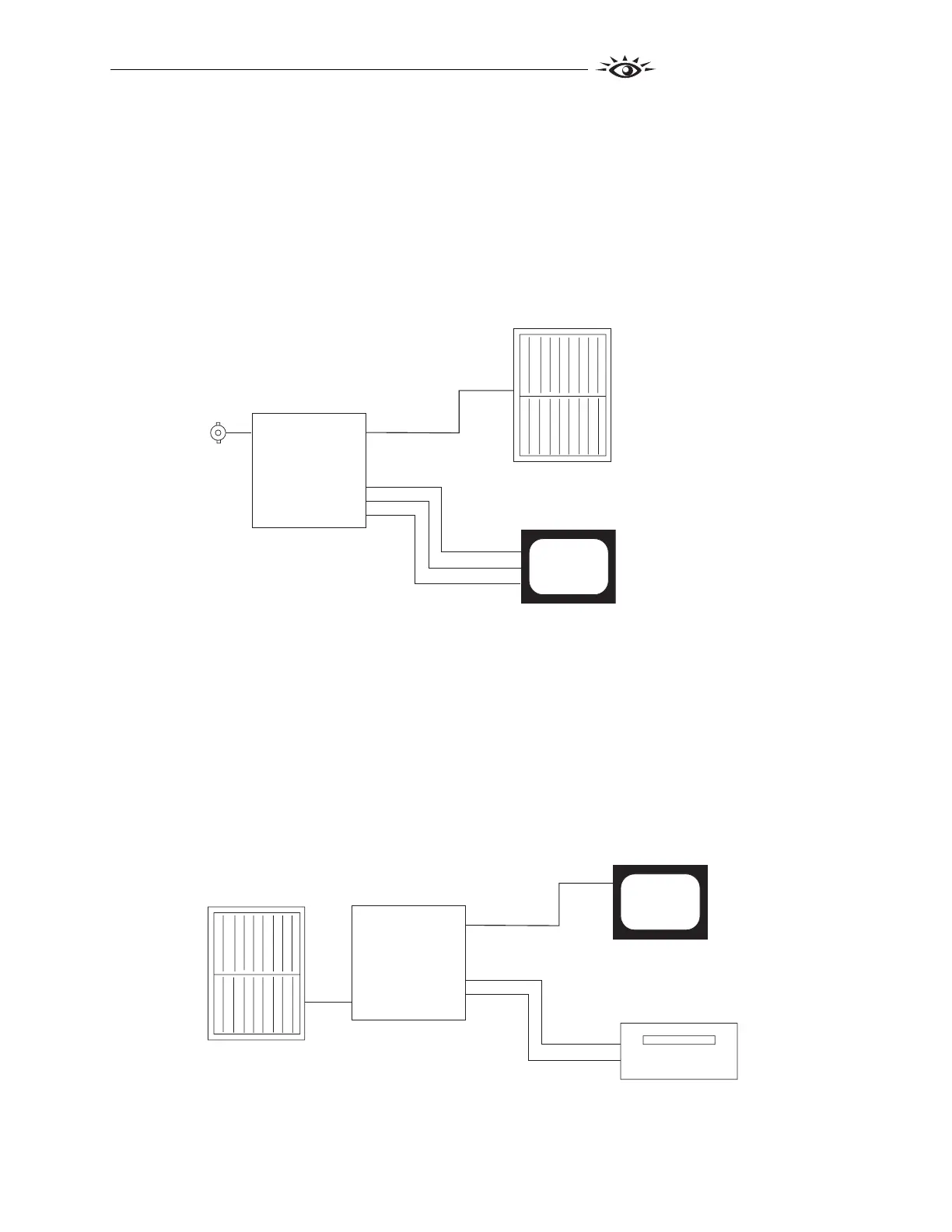

Electrical Conversion with Analog Monitoring
In this application, the full functionality of BrightEye 11-HD is demonstrated by
using the SDI output to feed a destination such as a video router while monitoring
the signal on an RGB monitor at the same time.
Analog Monitoring of an SDI Signal
In this application, BrightEye 11-HD converts an SDI signal from a production
switcher to the Composite/S-Video Y/C format and feeds it to an S-VHS tape
machine while monitoring the signal on a composite analog monitor.
BrightEye-3
BrightEye 11-HD
Router
SDI
Out
SDI In
R
G
B
R
G
B
Monitor
BrightEye 11-HD
Production
Switcher
Cmpst
Out
SD
SDI In
Y
C
Y
C
Composite
Monitor
S-VHS
HD or SD SDI Feeding Router with Analog Monitoring
Analog Monitoring of an SD SDI Signal
