BrightEye 10

BrightEye-5

REAR CONNECTORS

All connections to the BrightEye 10 converter are made on the rear of the unit.

Refer to the illustration below.

Power Connection

Connect a modular power supply to the 12 volt DC power input connection on the

far left of the unit. Use the locking ring to secure it.

USB Connector

The USB connector is used to provide more comprehensive control, diagnostics,

and upgrades to the unit from a PC or Mac. Use the BrightEye Control applica-

tion included on CD-ROM to make adjustments as described in the OPERATION

section of this user guide.

Optical In

The optical input connector carries the same ITU-R 601 component digital televi-

sion signal as a directly modulated optical carrier in accordance with SMPTE

297M. The output wavelength is 1310 nm (nanometers), with a nominal output

power of -7 dBm. This is an SC type connector which is capable of driving both

single mode (SM) and multi-mode (MM) fibers.

As multi-mode fiber has a larger diameter than single mode fiber, multi-mode

ingests more light and this can result in overload of the optical receiver. When

using multi-mode fiber it is usually necessary to put a short single mode patch

cable ahead of the multi-mode fiber at the transmit end to reduce the signal to a

normal level.

A suitable arrangement can be a S3YYSFISA one meter, single mode patch cord

and a F1-8310 coupler. These items are inexpensive and available from Fiber

Instrument Sales (www.fiberinstrumentsales.com).

The patch cord has SC connectors and is used at the BrightEye optical transmit-

ter output. The SC-to-SC coupler then connects this single mode patch cord to the

input of the multi-mode fiber link.

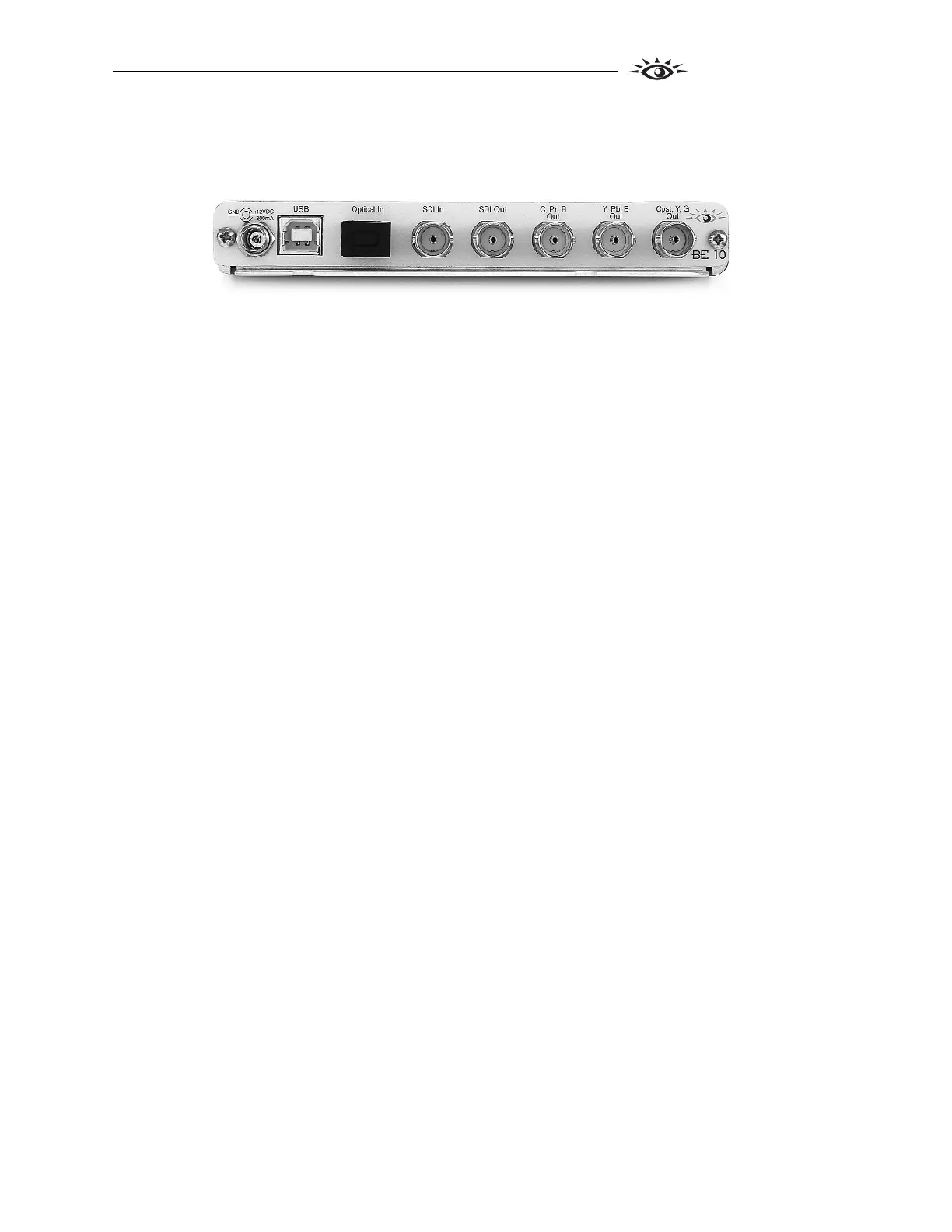

BrightEye 10 Rear Connectors
