APPLICATIONS
The versatility of BrightEye 10 can be utilized in a number of different applica-
tions where conversion of SDI or optical video to analog is required. Some
examples of using BrightEye 10 are given below.

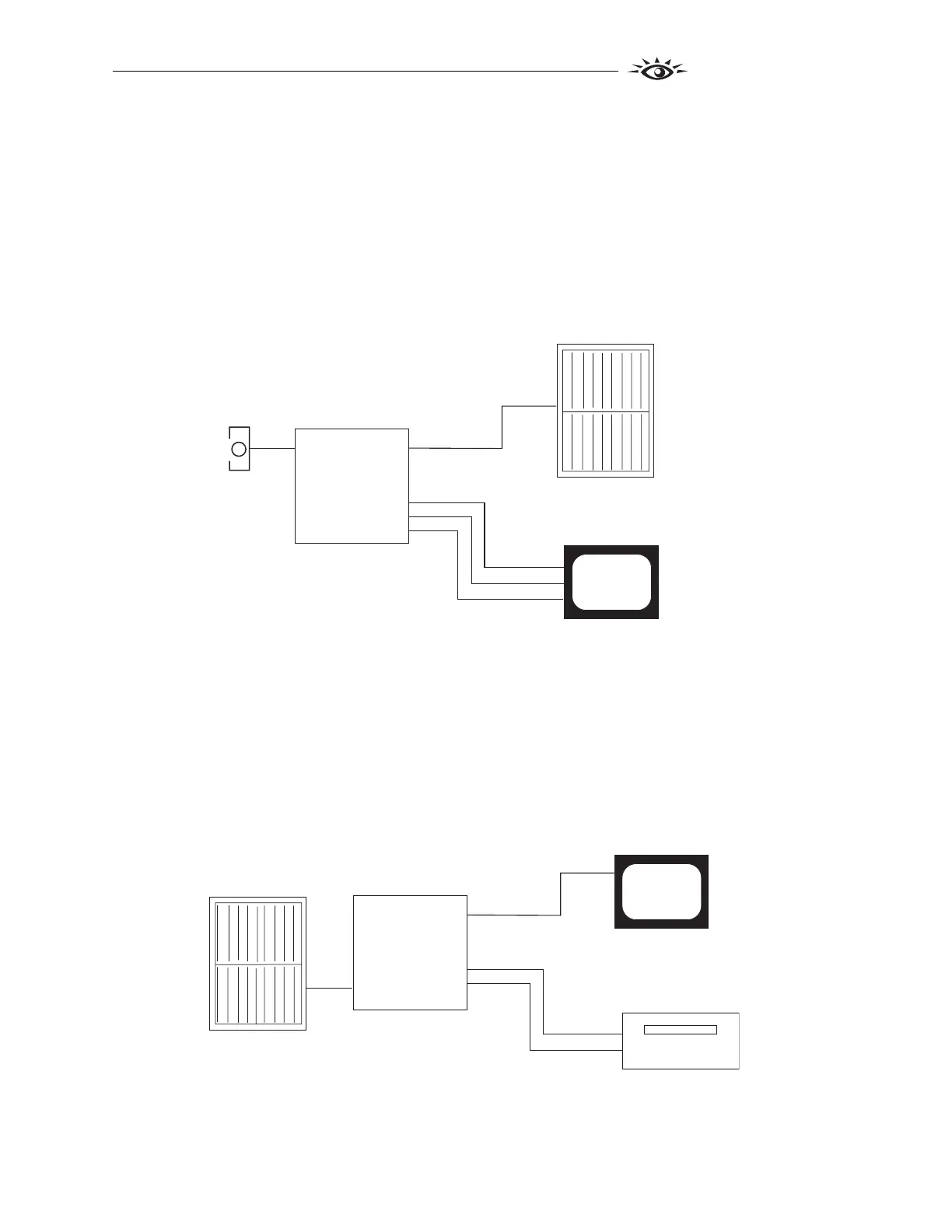

Optical to Electrical Conversion with Analog Monitoring
This application, shown in the illustration below, utilizes the full functionality of
BrightEye 10 by using the converted SDI output from an optical input to feed a
destination such as a video router while monitoring the signal on an RGB
monitor at the same time.
Analog Monitoring of an SDI Signal
This application performs conversion of an SDI signal from a production switcher
to the Composite/S-Video format for feeding an S-VHS tape machine with the Y/C
outputs while monitoring the signal on a composite analog monitor as shown
below.
BrightEye-3
BrightEye 10
Router
SDI
Out
Optical In
R
G
B
R
G
B
Monitor
BrightEye 10
Production
Switcher
Cmpst
Out
SDI In
Y
C
Y
C
Composite
Monitor
S-VHS
Optical to Electrical Conversion with Analog Monitoring Illustration
Analog Monitoring of an SDI Signal Illustration
