TV BUTTONS AND TERMINAL INTERFACE

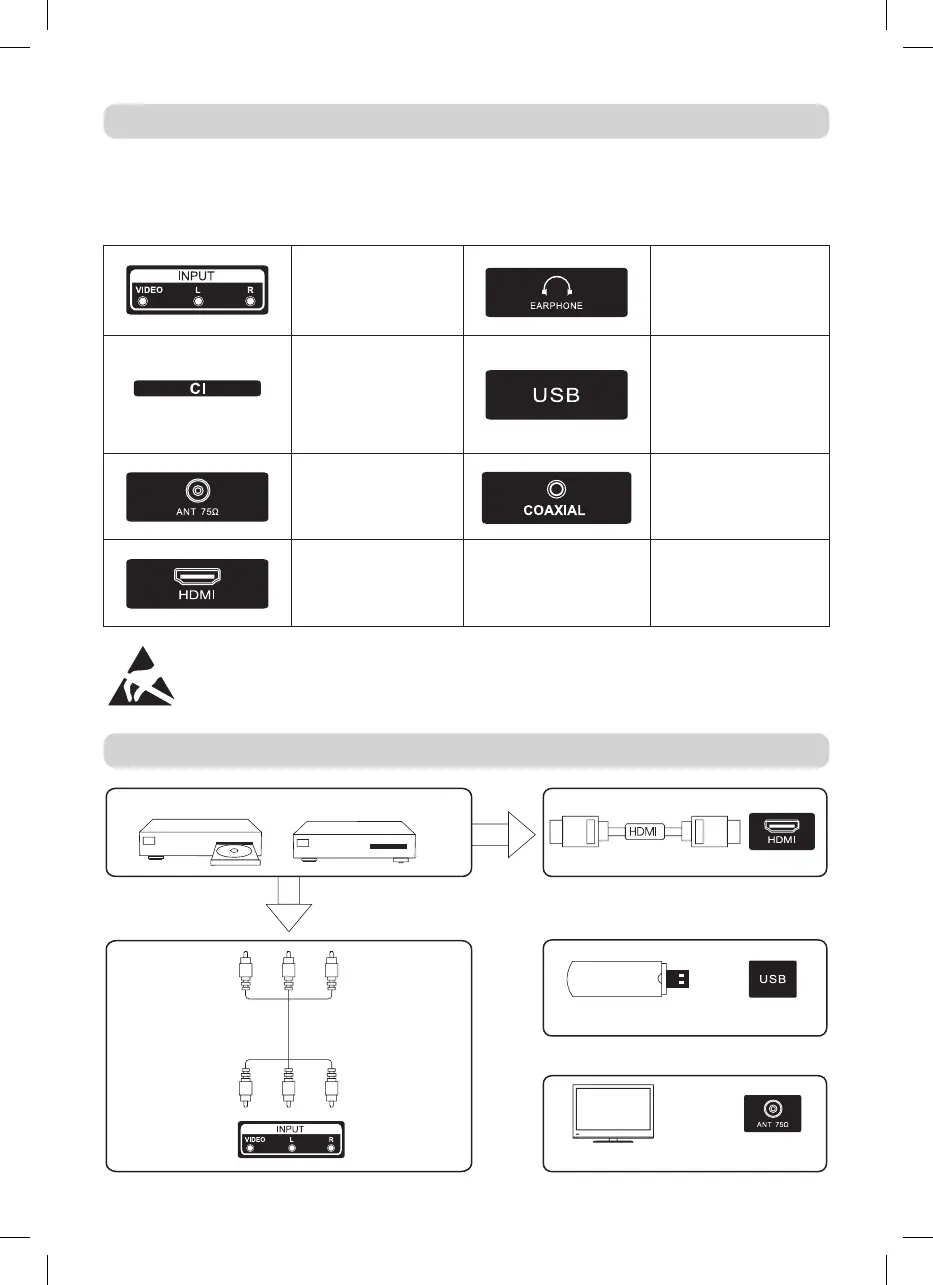

EXTERNAL DEVICE CONNECTION DIAGRAM
Terminal Interface
Note: The following are the various terminal interface, the actual posiion and arrangement, the number
of diferent models may be diferent.
*Do not touch or be close to the HDMI, USB terminals, and prevent electrostaic discharge to
disturb these terminals while in USB operaion mode, or it will cause the TV to stop working
or abnormal status.
AV input
External AV Signal lnput
and Relevant Right/Let
Sound Channel
CI SLOT
The card reader input
Cl (comon interface) this
requires CAM
(condiional access
module) used for pay TV
ANT75
Connect the antennal/
cable tv input (75VHF/
UHF)
HDMI input
Digital signal input from
HDMI video connector.
EARPHONE output
When earphones are
plugged in, speakers
are disabled
USB input
Connect a USB device
here to play its media iles
or to record programs via
the PVR funcion.
COAXIAL
Connect the SPDIF
receiver.
DVD Set-top boxes
HDMI input connector
USB connecion
TV connecion
AV input
connecion
