8

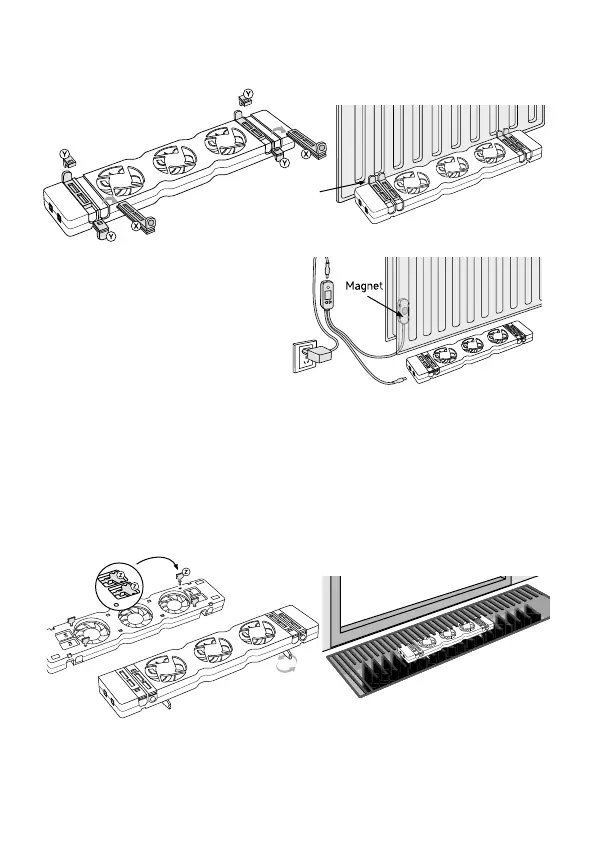

C. Installing onto a 1 Panel Radiator
1. Make sure the fan is pointed upwards and the end with the power connector is the one closer to
the electrical socket. The white covering grate of the fan unit must be facing upwards.
2. Rotate the adjustable magnets (X) 180 degrees to the same side and remove the sliders (Y).
3. Attach the magnets to the bottom of the radiator panel.
4. Mount the temperature sensor to the radiator or the radiator pipe using a magnet.
5. Mount the control unit with screen at least 20 cm from the radiator using double-sided tape or
the hook-and-loop fastener.
6. Plug the cable of the control unit into one of the power ports on the fan.
7. Plug the cable of the power adapter into the control unit.
D. Installing onto a Trench Heater (Convector)
