7
1. Make sure the fan is pointed upwards and the end with the power connector is the one closer to
the electrical socket. The white covering grate of the fan unit must be facing upwards.
2. Find a spot where the wall brackets on the radiator and the mounts of the fan unit do not get
in each other’s way.
3. Adjust the magnets to achieve suitable fan spacing as needed.
4. Mount the fan to the bottom of the radiator between the cooler grates using the adjustable
magnets (X).
5. Mount the temperature sensor to the radiator or the radiator pipe using a magnet.
6. Mount the control unit with screen at least 20 cm from the radiator using double-sided tape or
the hook-and-loop fastener.
7. Plug the cable of the control unit into one of the power ports on the fan.
8. Plug the cable of the power adapter into the control unit.

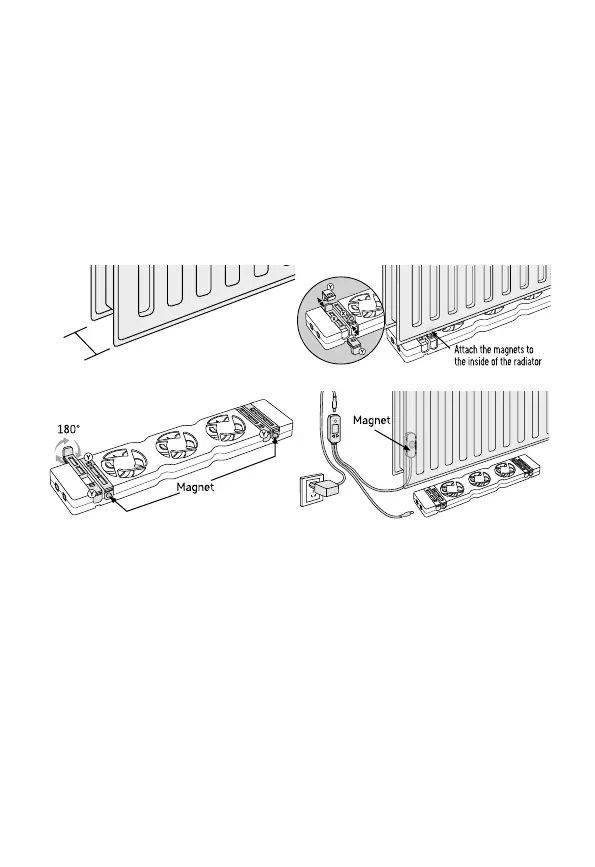

B. Installing onto a Radiator (Distance between Panels <70 mm)
< 70 mm
1. Make sure the fan is pointed upwards and the end with the power connector is the one closer to
the electrical socket. The white covering grate of the fan unit must be facing upwards.
2. Find a spot where the wall brackets on the radiator and the mounts of the fan unit do not get
in each other’s way.
3. Rotate the adjustable magnets (X) 180 degrees and remove the sliders (Y).
4. Adjust the magnets to achieve suitable internal spacing of the fans as needed.
5. Mount the fan to the bottom of the radiator between the cooler grates using the adjustable
magnets.
6. Mount the temperature sensor to the radiator or the radiator pipe using a magnet.
7. Mount the control unit with screen at least 20 cm from the radiator using double-sided tape or
the hook-and-loop fastener.
8. Plug the cable of the control unit into one of the power ports on the fan.
9. Plug the cable of the power adapter into the control unit.
