File: DualSigmaPro18ALargePASubwooferCab1000Watts.bb6
Dual SigmaPro18A Large PA Subwoofer Cabinet
By McJerry, Eminence Speaker LLC
Displacement limited to 1000 Watts; F3 of 47 Hz. Must use a 24 dB per octave high pass filter set to 35 Hz or higher
to protect driver from over excursion.
Box Properties
--Description--
Name:
Type: Vented Box
Shape: Prism, square
--Box Parameters--
Vb = 10 cu.ft
V(total) = 11.12 cu.ft
Fb = 44 Hz
QL = 7
F3 = 46.6 Hz
Fill = minimal
--Vents--
No. of Vents = 2
Vent shape = rectangle
Vent ends = one flush
Hv = 20 in
Wv = 3 in
Lv = 10.9 in
Driver Properties
--Description--
Name: Sigma Pro-18
Type: Standard one-way driver
Company: Eminence Speaker LLC
Comment: Revised NOV 2005
Piston: Paper cone.
Suspension: Cloth surround.
Dust Cap: Solid paper dust cap.
Frame: Diecast aluminum basket.
Voice Coil: 3 inch (76.2 mm) copper.
Magnet: 95 oz ferrite magnet.
--Configuration--
No. of Drivers = 2
Mounting = Standard
Wiring = Parallel
Drivers sum coherently = Yes
--Driver Parameters--
Fs = 28 Hz
Qms = 8.28
Vas = 441.2 liters [882.4]
Xmax = 6.1 mm
Sd = 1140 sq.cm [2280]
Qes = 0.3
Re = 6.29 ohms [3.145]
Le = 1.9 mH [0.95]
Z = 8 ohms [4]
Pe = 650 watts [1300]

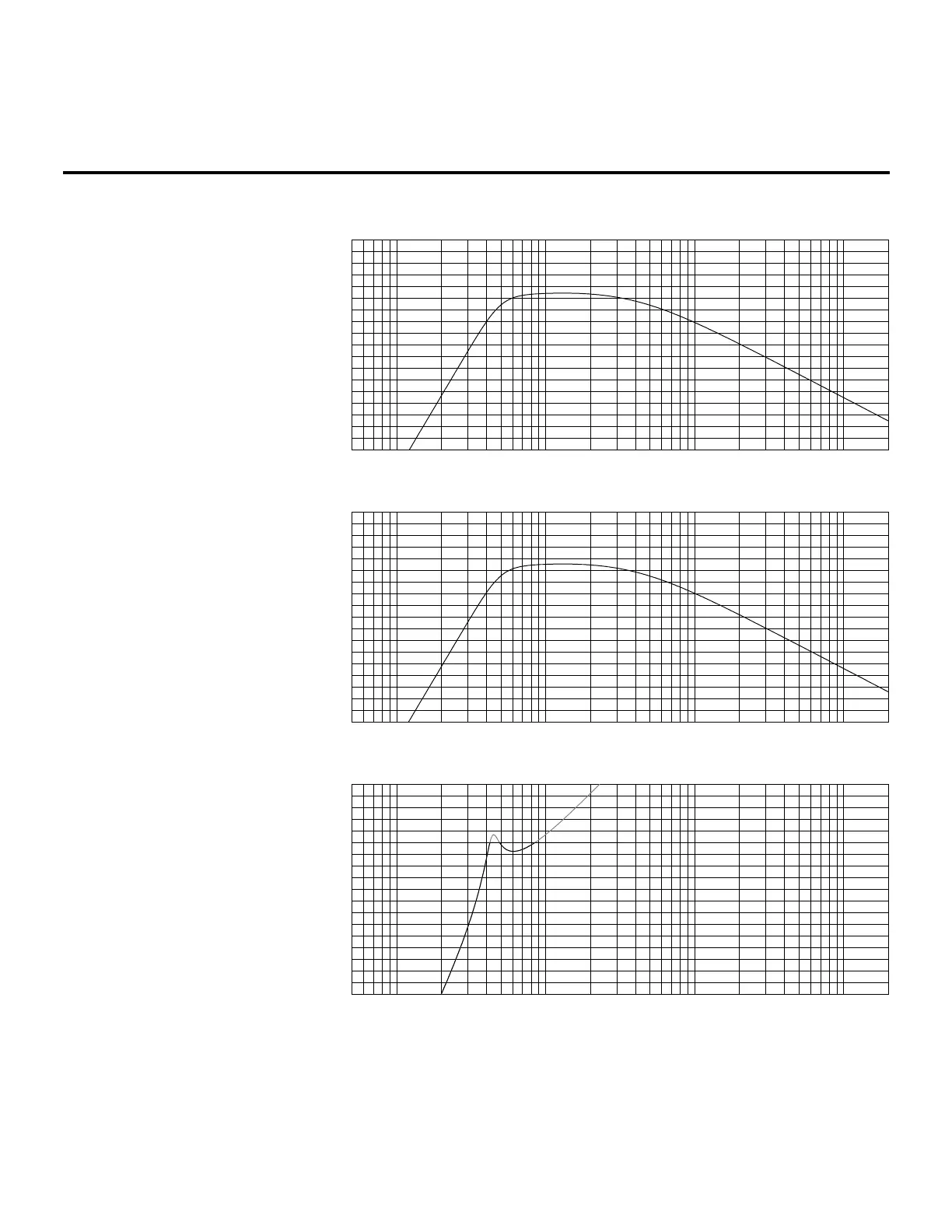

Normalized Amplitude Response (dB-SPL/Hz)
Eminence Designer
dB
6
0
-6
-12
-18
-24
-30
-36
5 Hz 10 50 100 500 1 K 5 K 10 K 20 K
Custom Amplitude Response (dB-SPL/Hz at 1 m) with 1600 watts
Eminence Designer
dB
139
133
127
121
115
109
103
97
5 Hz 10 50 100 500 1 K 5 K 10 K 20 K
Maximum Acoustic Power (dB-SPL/Hz at 1 m)
Eminence Designer
dB
137
131
125
119
113
107
101
95
5 Hz 10 50 100 500 1 K 5 K 10 K 20 K
