File: SigmaPro18AMedBox.bb6
SigmaPro18A in Med Vented Box, High Power, Med F3
By McJerry, Eminence Speaker LLC
Displacement limited to 600 watts. Must use 24 dB per octave high pass filter set to 35 Hz or higher
to protect driver from overexcursion. Place ports symetrically around driver if possible.
Box Properties
--Description--
Name:
Type: Vented Box
Shape: Prism, square (optimum)
--Box Parameters--
Vb = 4.5 cu.ft
V(total) = 5.049 cu.ft
Fb = 45 Hz
QL = 7
F3 = 48.72 Hz
Fill = minimal
--Vents--
No. of Vents = 4
Vent shape = round
Vent ends = one flush
Dv = 4 in
Lv = 9.805 in
Driver Properties
--Description--
Name: Sigma Pro-18
Type: Standard one-way driver
Company: Eminence Speaker LLC
Comment: Revised NOV 2005
Piston: Paper cone.
Suspension: Cloth surround.
Dust Cap: Solid paper dust cap.
Frame: Diecast aluminum basket.
Voice Coil: 3 inch (76.2 mm) copper.
Magnet: 95 oz ferrite magnet.
--Configuration--
No. of Drivers = 1
--Driver Parameters--
Fs = 28 Hz
Qms = 8.28
Vas = 441.2 liters
Xmax = 6.1 mm
Sd = 1140 sq.cm
Qes = 0.3
Re = 6.29 ohms
Le = 1.9 mH
Z = 8 ohms
Pe = 650 watts

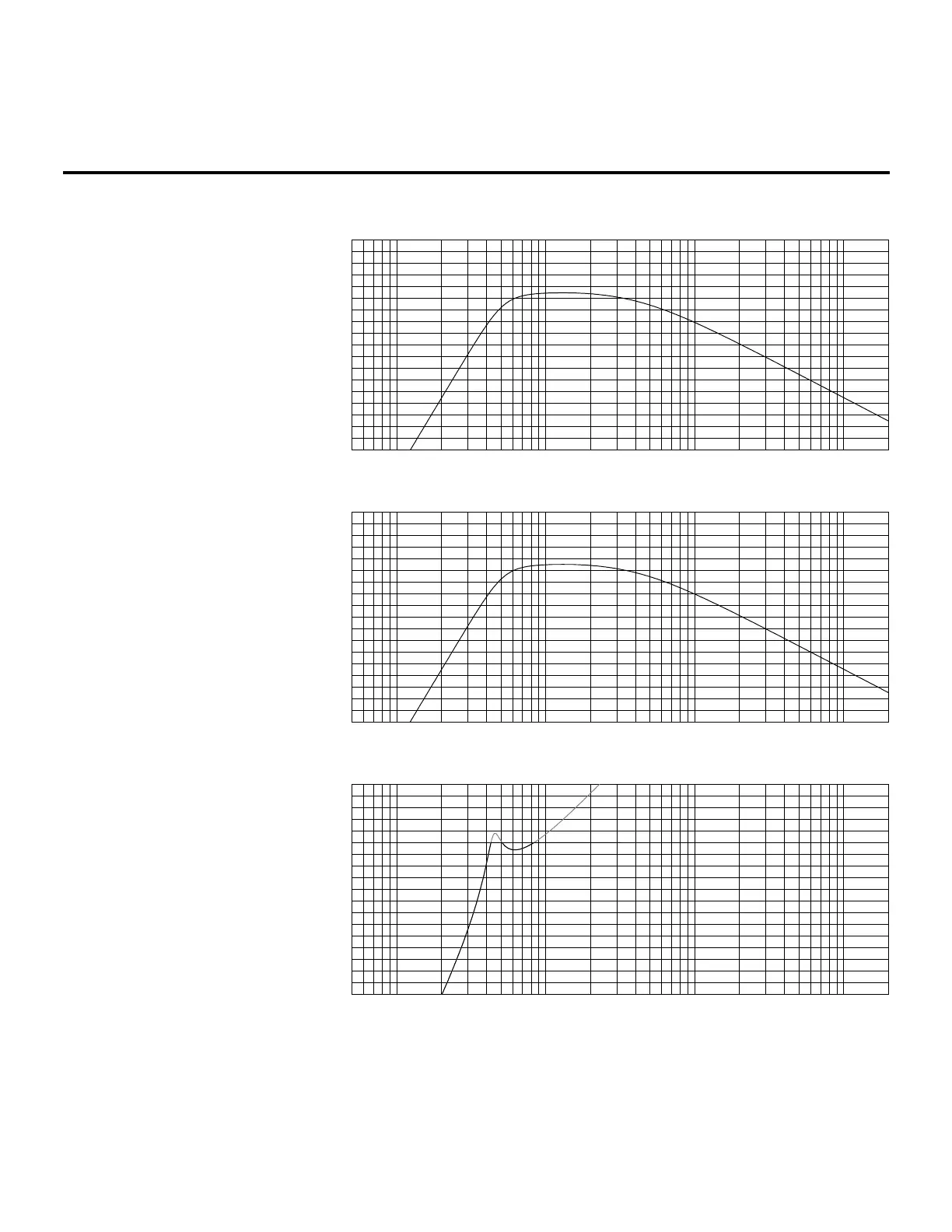

Normalized Amplitude Response (dB-SPL/Hz)
Eminence Designer
dB
6
0
-6
-12
-18
-24
-30
-36
5 Hz 10 50 100 500 1 K 5 K 10 K 20 K
Custom Amplitude Response (dB-SPL/Hz at 1 m) with 600 watts
Eminence Designer
dB
132
126
120
114
108
102
96
90
5 Hz 10 50 100 500 1 K 5 K 10 K 20 K
Maximum Acoustic Power (dB-SPL/Hz at 1 m)
Eminence Designer
dB
131
125
119
113
107
101
95
89
5 Hz 10 50 100 500 1 K 5 K 10 K 20 K
