File: SigmaPro18AMaxPowerBox.bb6
Sigma Pro18A Max Power Box, Hi Power, Med F3
By McJerry, Eminence Speaker LLC
Displacement and Thermally limited to 650 Watts. Must use a 24 dB per octave high pass filter set to 40 Hz or higher
to protect driver from over excursion. Place ports symetrically around driver.
Box Properties
--Description--
Name:
Type: Vented Box
Shape: Prism, square
--Box Parameters--
Vb = 3 cu.ft
V(total) = 3.396 cu.ft
Fb = 45 Hz
QL = 7
F3 = 57.71 Hz
Fill = minimal
--Vents--
No. of Vents = 4
Vent shape = round
Vent ends = one flush
Dv = 3 in
Lv = 8.803 in
Driver Properties
--Description--
Name: Sigma Pro-18
Type: Standard one-way driver
Company: Eminence Speaker LLC
Comment: Revised NOV 2005
Piston: Paper cone.
Suspension: Cloth surround.
Dust Cap: Solid paper dust cap.
Frame: Diecast aluminum basket.
Voice Coil: 3 inch (76.2 mm) copper.
Magnet: 95 oz ferrite magnet.
--Configuration--
No. of Drivers = 1
--Driver Parameters--
Fs = 28 Hz
Qms = 8.28
Vas = 441.2 liters
Xmax = 6.1 mm
Sd = 1140 sq.cm
Qes = 0.3
Re = 6.29 ohms
Le = 1.9 mH
Z = 8 ohms
Pe = 650 watts

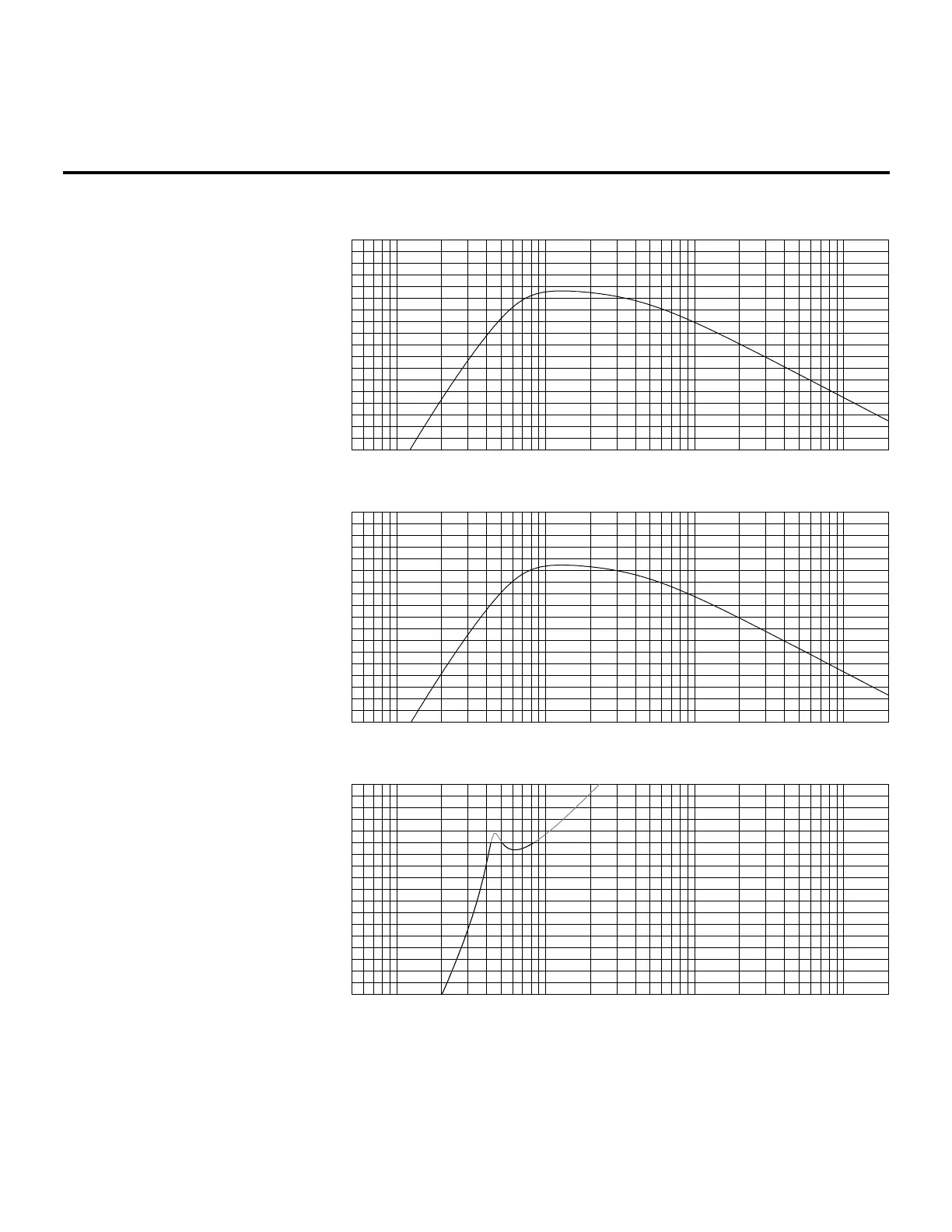

Normalized Amplitude Response (dB-SPL/Hz)
Eminence Designer
dB
6
0
-6
-12
-18
-24
-30
-36
5 Hz 10 50 100 500 1 K 5 K 10 K 20 K
Custom Amplitude Response (dB-SPL/Hz at 1 m) with 650 watts
Eminence Designer
dB
133
127
121
115
109
103
97
91
5 Hz 10 50 100 500 1 K 5 K 10 K 20 K
Maximum Acoustic Power (dB-SPL/Hz at 1 m)
Eminence Designer
dB
131
125
119
113
107
101
95
89
5 Hz 10 50 100 500 1 K 5 K 10 K 20 K
