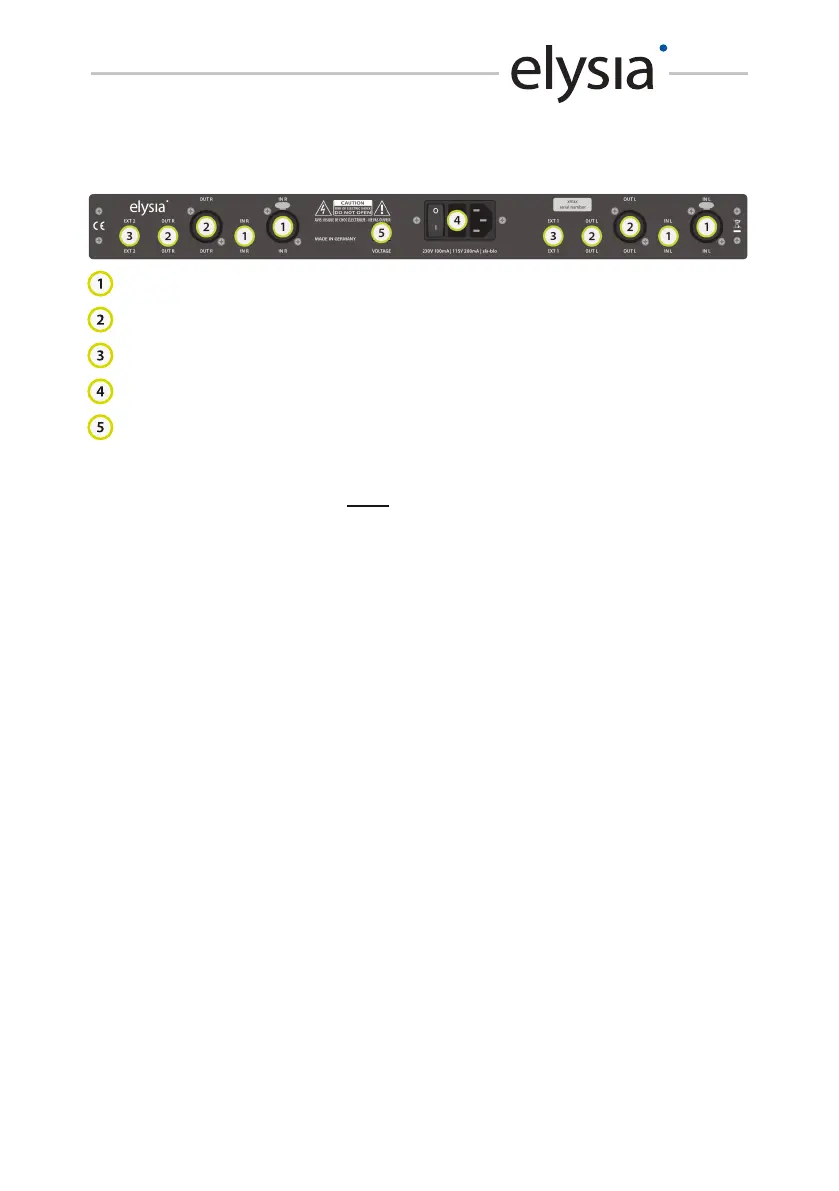

Connectors
Audio inputs (XLR and ¼” TRS)
Audio outputs (XLR and ¼” TRS)
Additional audio outputs (¼” TRS)
Mains connector/power switch/fuse holder
Voltage selector
Made for Stereo operation only: Connect both inputs to either the XLR
or the TRS inputs labeled IN L & IN R. The TRS inputs will be prefered by
the unit, if you connect to both stereo inputs (TRS and XLR) at the same
time.
Stereo Outputs: Connect your interface or following devices to OUT L &
OUT R. You can use all of the two stereo outputs (TRS and XLR) at the same
time.
Inputs (+4dBu)
XLR balanced: Pin 1: ground Pin 2: hot (+) Pin 3: cold (-)
XLR unbalanced: Pin 1: ground Pin 2: hot (+) Pin 3: ground
TRS balanced: Sleeve: ground Tip: hot (+) Ring: cold (-)
TRS unbalanced: Sleeve: ground Tip: hot (+) Ring: ground
Outputs (+4dBu)
XLR balanced: Pin 1: ground Pin 2: hot (+) Pin 3: ground
XLR unbalanced: Pin 1: ground Pin 2: hot (+) Pin 3: idle
TRS balanced: Sleeve: ground Tip: hot (+) Ring: ground
TRS unbalanced: Sleeve: ground Tip: hot (+) Ring: idle
Fuses (2 pieces)
230V operation: 200mA slo-blo
115V operation: 200mA slo-blo
