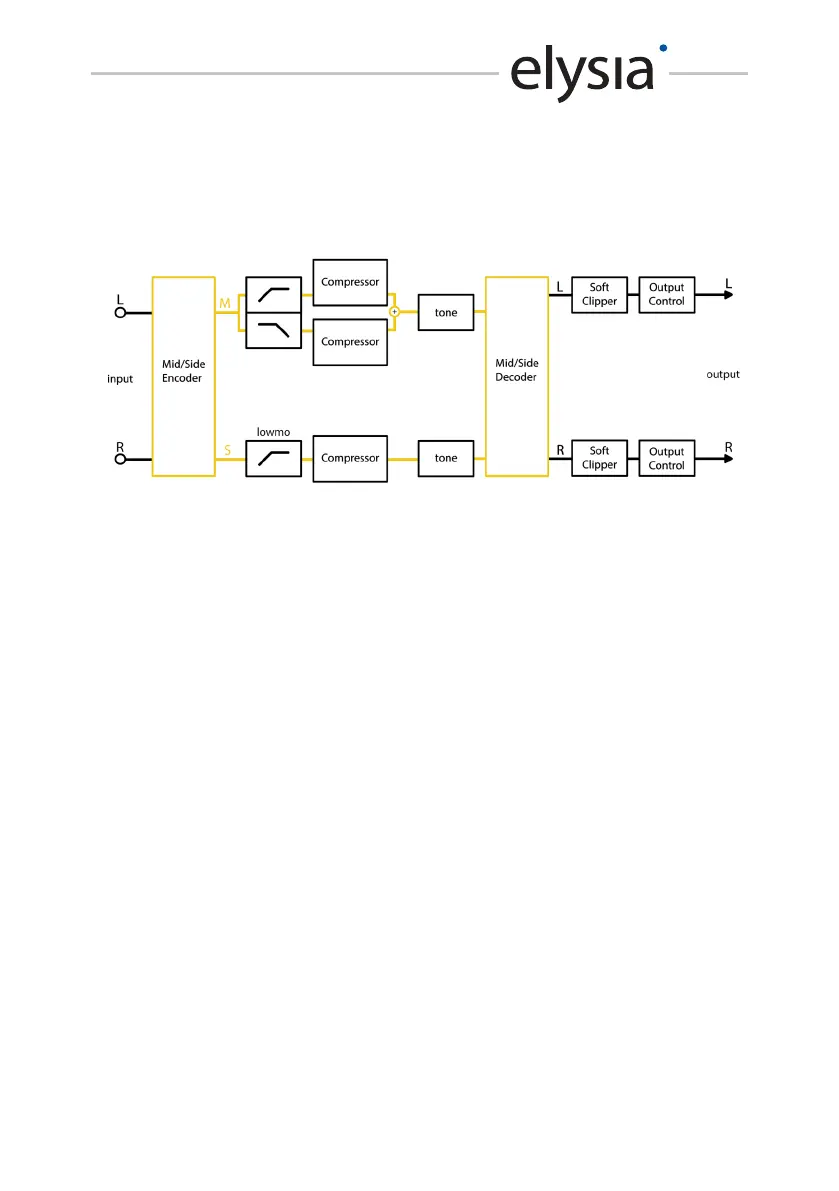

Signal Flow
The xmax processes audio using Mid/Side (M/S) encoding, allowing pre-
cise control over dynamics, tone, and stereo imaging.
A stereo input (Left/Right) is converted into Mid (M) and Side (S) signals.
The Mid signal represents the sum of both channels, containing center-
panned elements, while the Side signal captures the dierence, deter-
mining stereo width.
The Mid and Side signals are processed separately. The Mid signal passes
through a low-frequency lter to control the low band and a high-fre-
quency lter to control the mid band. The Side signal includes a low-fre-
quency control lter ("lowmo") to reduce unwanted stereo width in the
bass range. Independent compressors shape the dynamics of all three
signals without aecting the overall stereo balance. The tone control en-
hances character and clarity.
After processing, the signals are decoded into a stereo signal . The nal
output stage includes a soft clipper to prevent peaks and ensure smooth
limiting, followed by an output control for nal level adjustment.
This unique processing chain ensures balanced dynamics, rened tone,
and controlled stereo imaging for a nalized masterbus sound.
