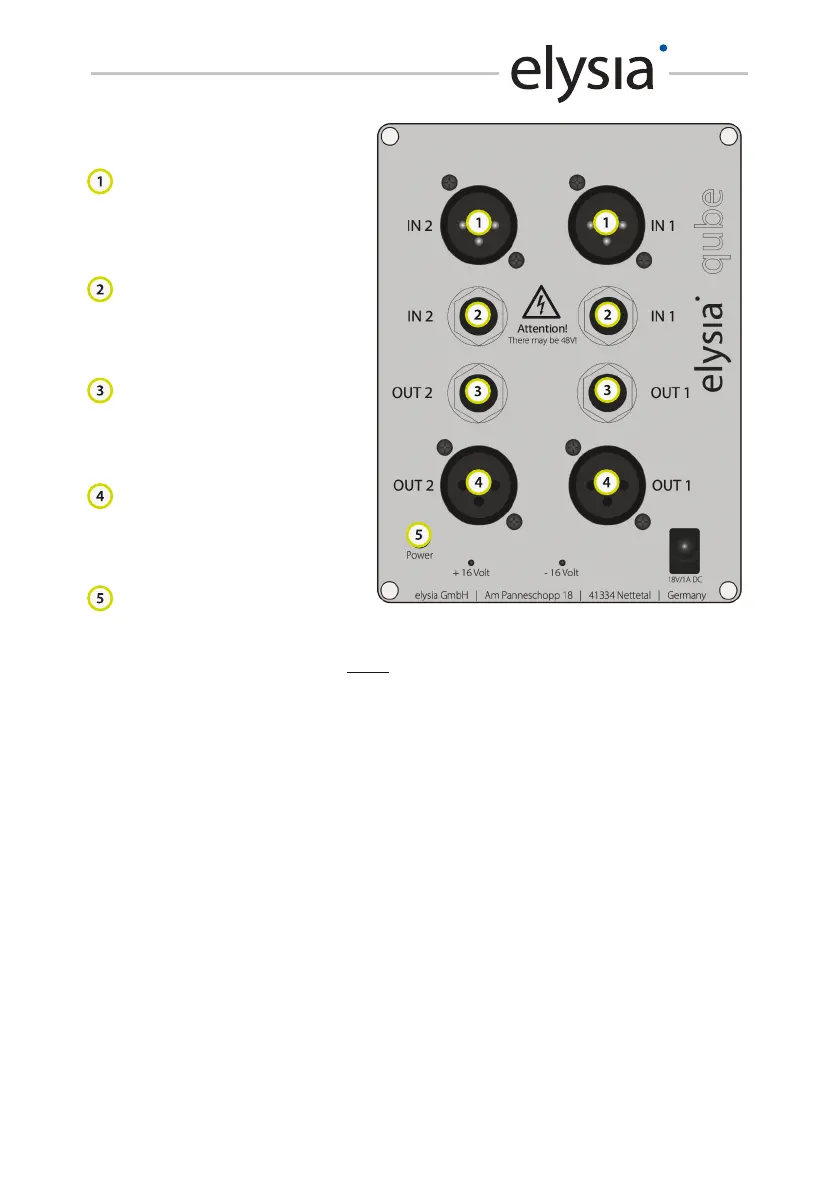

Connectors (elysia xmax)
Audio inputs
(XLR jack)
Audio inputs
(¼” TRS phone jack)
Audio outputs
(¼” TRS phone jack)
Audio outputs
(XLR jack)
Power switch
Made for Stereo operation only: Connect both inputs to either the XLR
or the TRS inputs labeled IN 1 & IN 2. The TRS inputs will be prefered by
the unit, if you connect to both stereo inputs (TRS and XLR) at the same
time.
Stereo Outputs: Connect your interface or following devices to OUT 1 &
OUT 2. You can use all of the two stereo outputs (TRS and XLR) at the same
time.
Inputs
Jack balanced: Sleeve: ground Tip: hot (+) Ring: cold (-)
Jack unbalanced: Sleeve: ground Tip: hot (+) Ring: ground
Outputs
XLR balanced: Pin 1: ground Pin 2: hot (+) Pin 3: ground
XLR unbalanced: Pin 1: ground Pin 2: hot (+) Pin 3: idle
Jack balanced: Sleeve: ground Tip: hot (+) Ring: ground
