9 Commissioning
Sensor KNX VOC/TH-UP Touch as of software 0.1.0 • Version: 30.11.2021 • Technical changes and errors excepted.
To ensure a correct VOC measurement, the device must be installed in a windproof
socket.
2.2. Composition
2.2.1. Housing
2.3. Assembly of the sensor
First of all fit the windproof socket with connection. Also seal inlet pipes to avoid
infiltration.
Screw the base plate onto the socket and position the frame of the switching
programme. Connect the bus line +/- to the black-red plug.
Pin the housing with the notches on to the metal frame, so that device and frame are
fixed.
3. Commissioning
Never expose the device to water (e.g. rain) or dust. This can damage the electronics.
You must not exceed a relative humidity of 95%. Avoid condensation.
4
6
5
7
1
2
3
4

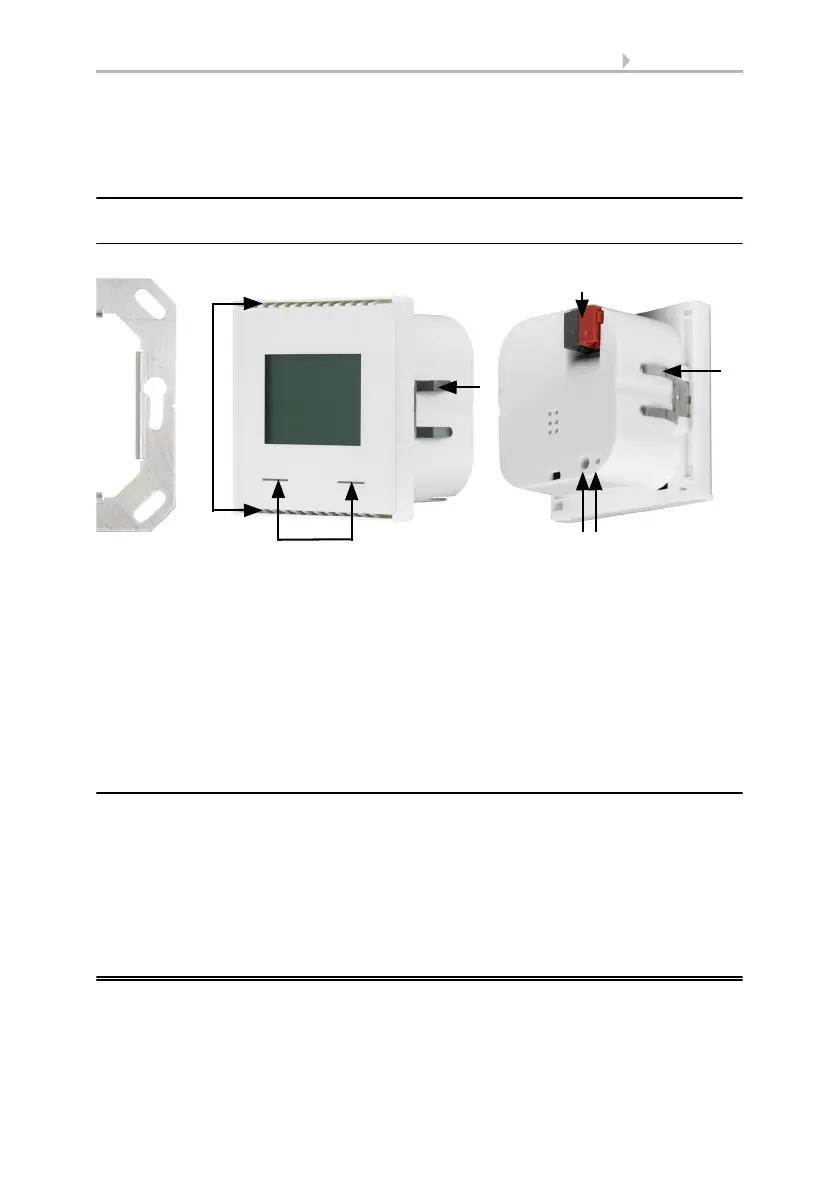

Fig. 2
1 Base plate
2 Openings for air circulation
3 Touch sensitive buttons
4 Catches
5 KNX terminal BUS +/-
6 Programming button (recessed) for teaching device
7 Programming LED (recessed)
