8 Installation and commissioning

Sensor KNX VOC/TH-UP Touch as of software 0.1.0 • Version: 30.11.2021 • Technical changes and errors excepted.

• Comply with the locally applicable directives, regulations and provisions for

electrical installation.

• Immediately take the device or system out of service and secure it against

unintentional switch-on if risk-free operation is no longer guaranteed.

Use the device exclusively for building automation and observe the operating

instructions. Improper use, modifications to the device or failure to observe the

operating instructions will invalidate any warranty or guarantee claims.

Operate the device only as a fixed-site installation, i.e. only in assembled condition and

after conclusion of all installation and operational start-up tasks, and only in the

surroundings designated for it.

Elsner Elektronik is not liable for any changes in norms and standards which may occur

after publication of these operating instructions.

2.1. Installation position

The Sensor KNX VOC/TH-UP Touch is installed on a device socket.

May be installed and operated in dry interior rooms only.

Avoid condensation.

When selecting an installation location, please ensure that the measurement results

are affected as little as possible by external influences. Possible sources of interference

include:

• Direct sunlight

• Drafts from windows and doors

• Draft from ducts which lead from other rooms or from the outside to the

junction box in which the sensor is mounted

• Warming or cooling of the building structure on which the sensor is mounted,

e.g. due to sunlight, heating or cold water pipes

• Connection lines and ducts which lead from warmer or colder areas to the

sensor

Measurement variations from permanent sources of interference can be corrected in

the ETS in order to ensure the specified accuracy of the sensor (offset).

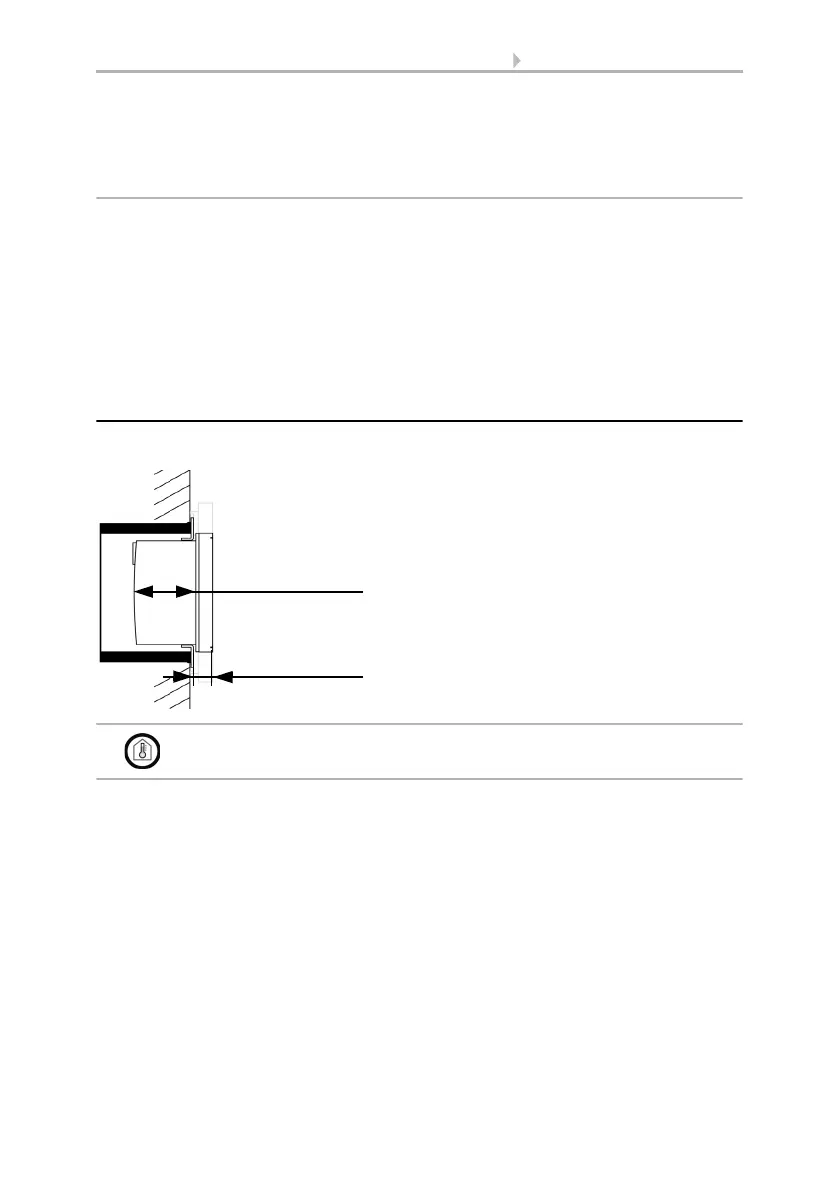

Fig. 1: Sectional drawing.

The Sensor KNX VOC/TH-UP Touch fits into a standard

socket (Ø 60 mm, depth 42 mm).

The frame is not included!

Installation depth

27 mm

Mounting depth

8 mm
