33 Installation
Room Controller KNX Touch One Style • Status: 30.07.2020 • Errors excepted. Subject to technical changes.
• Warming or cooling of the building structure on which the device is mounted,
e.g. due to sunlight, heating or cold water pipes
• Connection lines which lead from warmer or colder areas to the device
You can correct temperature and humidity variations from such sources of interference
on the ETS (temperature offset).
Cut-out dimensions for concealed box:
W = 166 mm +1 -0 | H = 116 mm +1 -0 | D = 80 mm
2.1.3. Preparing for installation
2.1.3.1. Wall-fitting

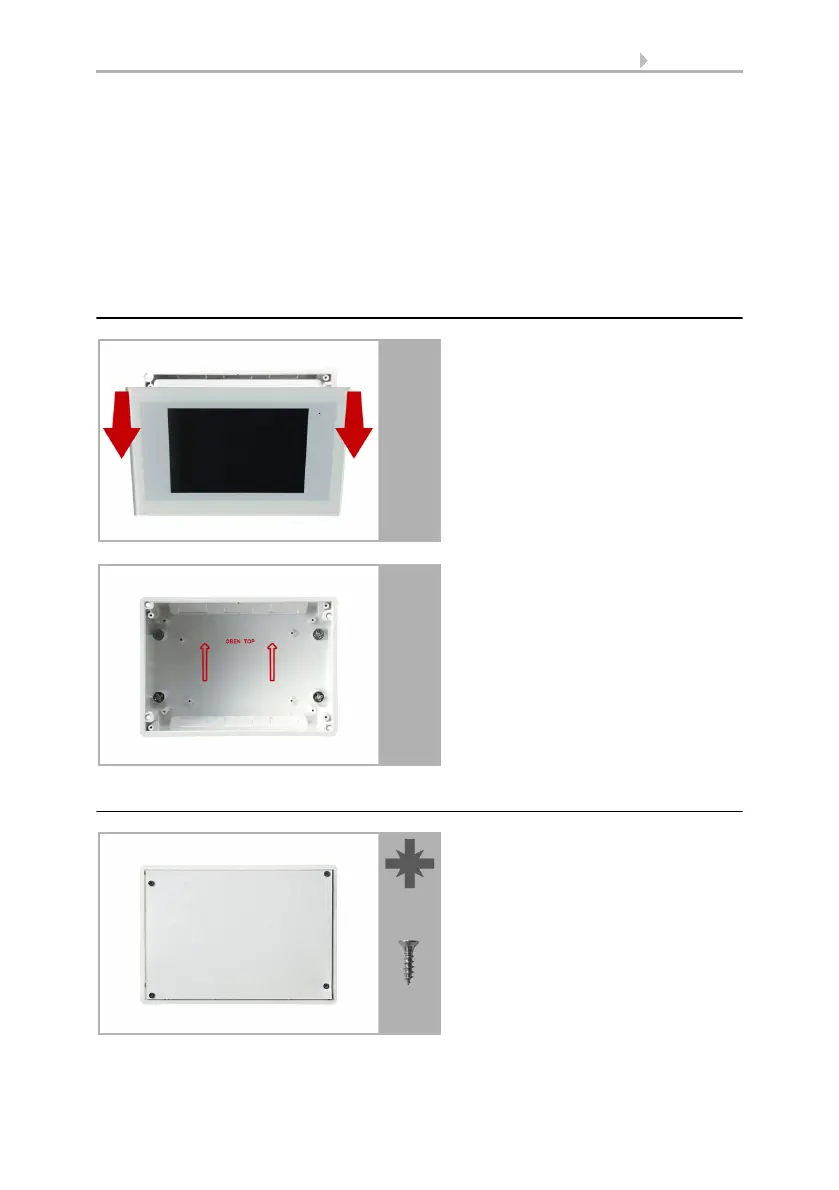

The display unit is held by magnets.
Remove the front part from the con-
cealed box.
Place the concealed box in the wall so
that the arrows point upwards.
For fitting, screw the cover (board) on
to the concealed box with the en-
closed screws.
