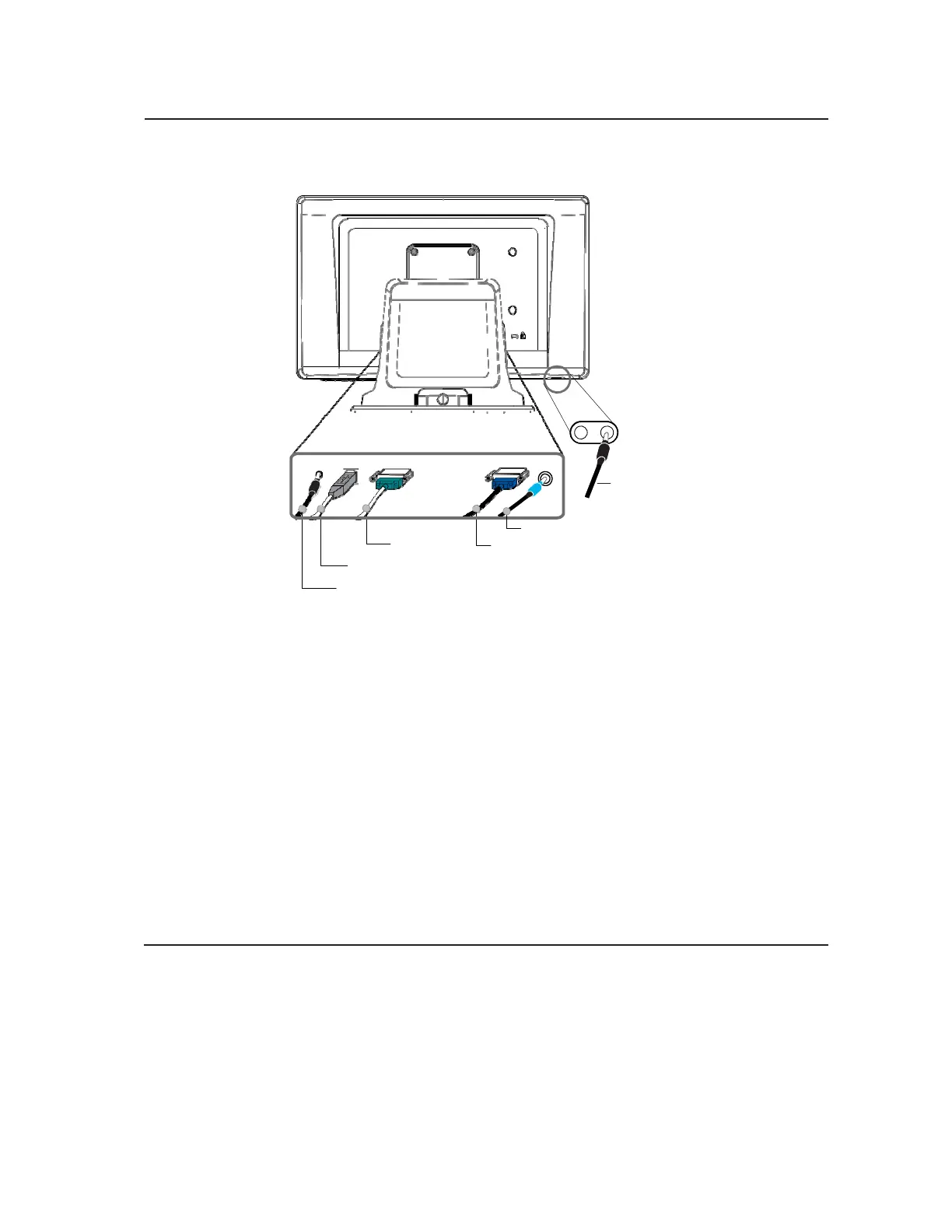

Interface Connection
Note: Before connecting the cables to your touchmonitor and PC, be sure that the computer and
touchmonitor are turned off.
Headphone Cable
1
2
2
3
4
Audio Cable
Serial Cable
VGA Cable
USB Cable
Power Brick
1. Connect DC cable of the power brick to the monitor and the other end through AC power
cable to the AC outlet.
2. Connect one end of either the touchscreen serial (RS232) cable or the touch screen USB
cable (but not both) to the rear side of the computer and the other end to the LCD monitor.
Tighten by turning the two thumb screws clockwise to ensure proper grounding.
3. Connect one end of the VGA cable to the rear side of computer and the other to the LCD
monitor. Tighten by turning the two thumb screws clockwise to ensure proper grounding.
4. Connect one end of the audio cable to the rear side of computer and the other to the LCD
monitor.
5. Facing the monitor, press the power button located on the underside of the botom-right
corner of the monitor.
Speakers and Audio
The touchmonitor includes two built-in speakers. To use the speakers, plug in the audio cable
to the Audio Input port and connect the other end to your computer.
To use headphones, plug in the headphones to the Audio Output port shown above. When
headphones are connected, the sound plays through the headphones only.
The volume and muting of the sound can be adjusted by using the “Audio” choice from the
On-Screen Display (OSD) Control panel menu as described on page 3-21.
2-9
