Rear Mounting Using the VES
A
Interface
1 If the display is already connected to a pedestal, remove the four screws that connect the
pedestal to the display (refer to Figure2-1 , item 1 ). Separate the pedestal from the display.
2 Reinstall the four screws into the VESA interface mount. Ensure that the monitor is
positioned with the correct side up.
3 Mount the monitor to the wall according to the template shown in Figure 2-2. Route the
cables through the cable access opening.
1
1

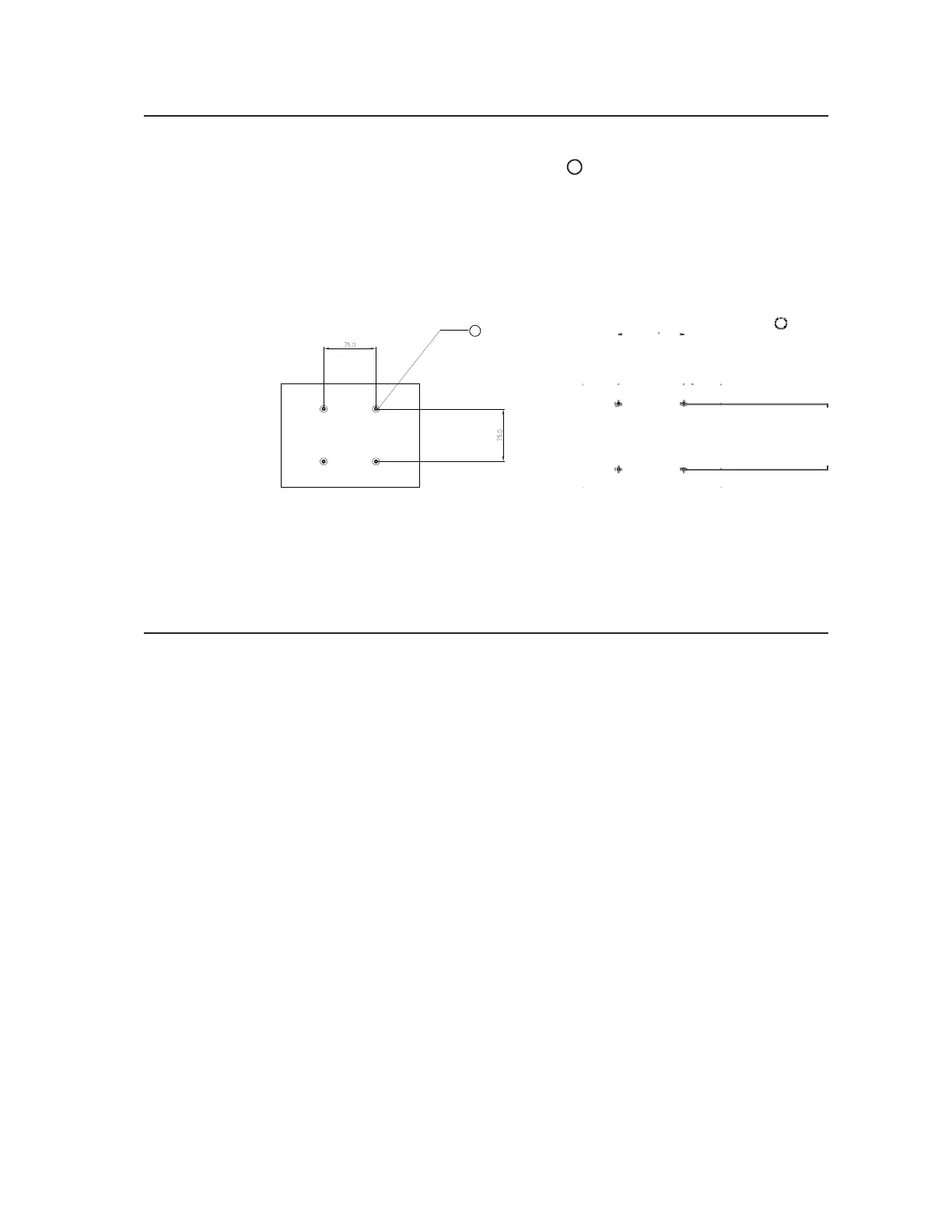

Figure 2-2: Rear mount template (not to scale)
ET1519LM ET1919LM
VESA Mounting
Options
The following companies provide VESA mounting devices compatible with your touchscreen
monitor:
GCX
800-228-2555
707-773-1100
www.gcx.com
Ergotron
800-888-8458
651-681-7600
www.ergotron.com
Innovative Office Products
800-524-2744
610-253-9554
www.innov-office-prod.com
MRI
800-688-2414
www.mediarecovery.com
2-13
