Interface Connection
NOTE: Before connecting the cables to your touchmonitor and PC, be sure that the computer and touchmonitor are
turned off.
1. Connect one end of the power adapter to the monitor and the other end to the connector of the
power cord.
2. Connect one end of either the touchscreen serial (RS232) cable or the touchscreen USB cable
(but not both) to the rear side of the computer and the other end to the LCD monitor. Tighten by
turning the two thumb screws clockwise to ensure proper grounding (USB cable does not have
thumb screws).
3. Connect one end of the video cable to the rear side of computer and the other to the LCD monitor.
Tighten by turning the two thumb screws clockwise to ensure proper grounding.
4. Press the power button on the rear panel to turn the monitor power on.
5. Connect one end of OSD remote control key(option) to the monitor.
Power Requirements
NOTE: This monitor operates at 12V 4A
DC Input:
Plug shape: Tuning Fork Type
Plug polarity: (+) ) (-)
Outside dimension: Ø 5.5 ± Ø.1
Inside dimension: Ø 2.1 ± Ø.1
2-3
3
2
2
1

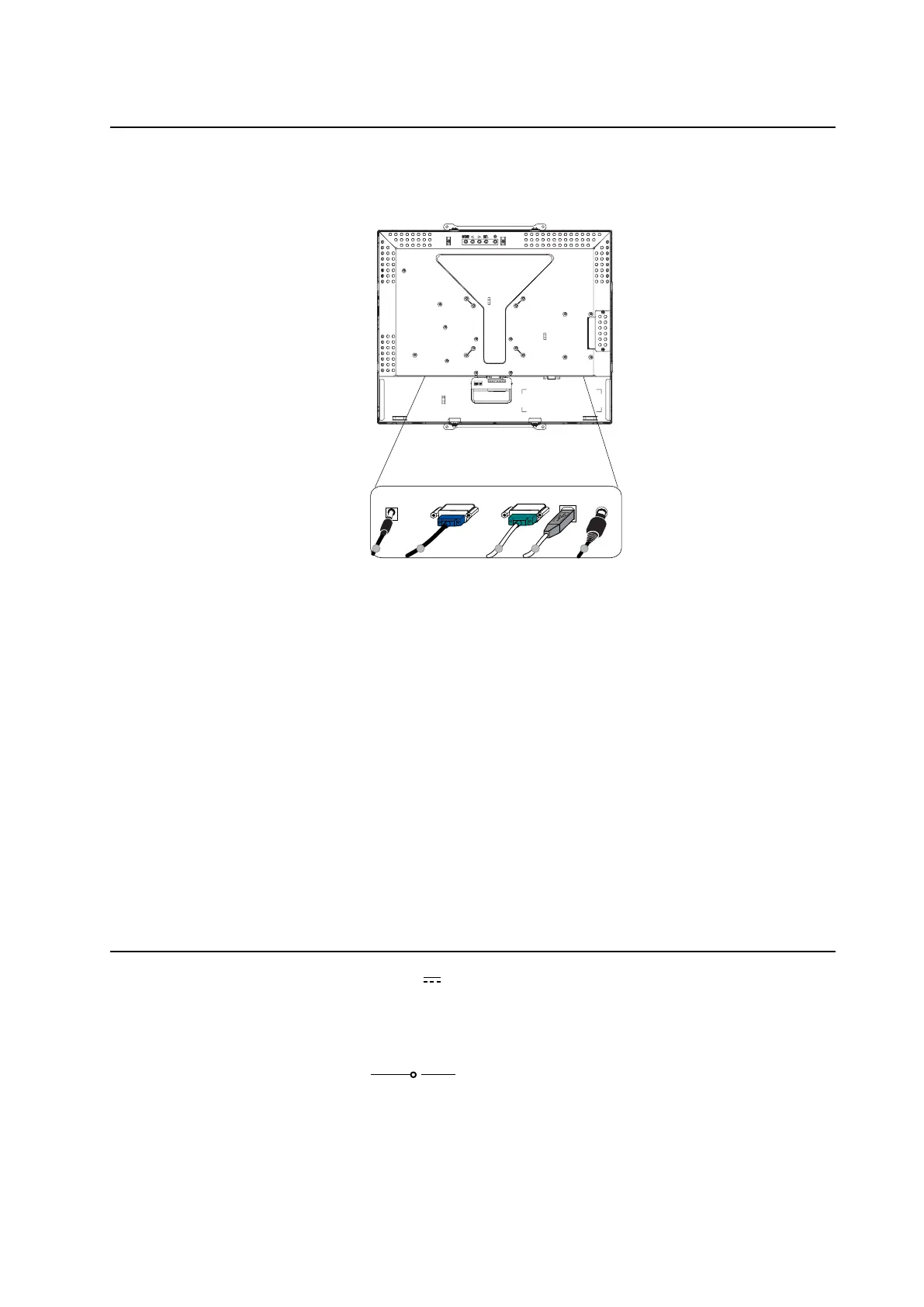

Adapter Video Cable Serial Cable USB Cable
5
OSD Remote Control Key
(option)
