User Manual: 90 Series RevB
UM600129 Rev G, page 5 of 30

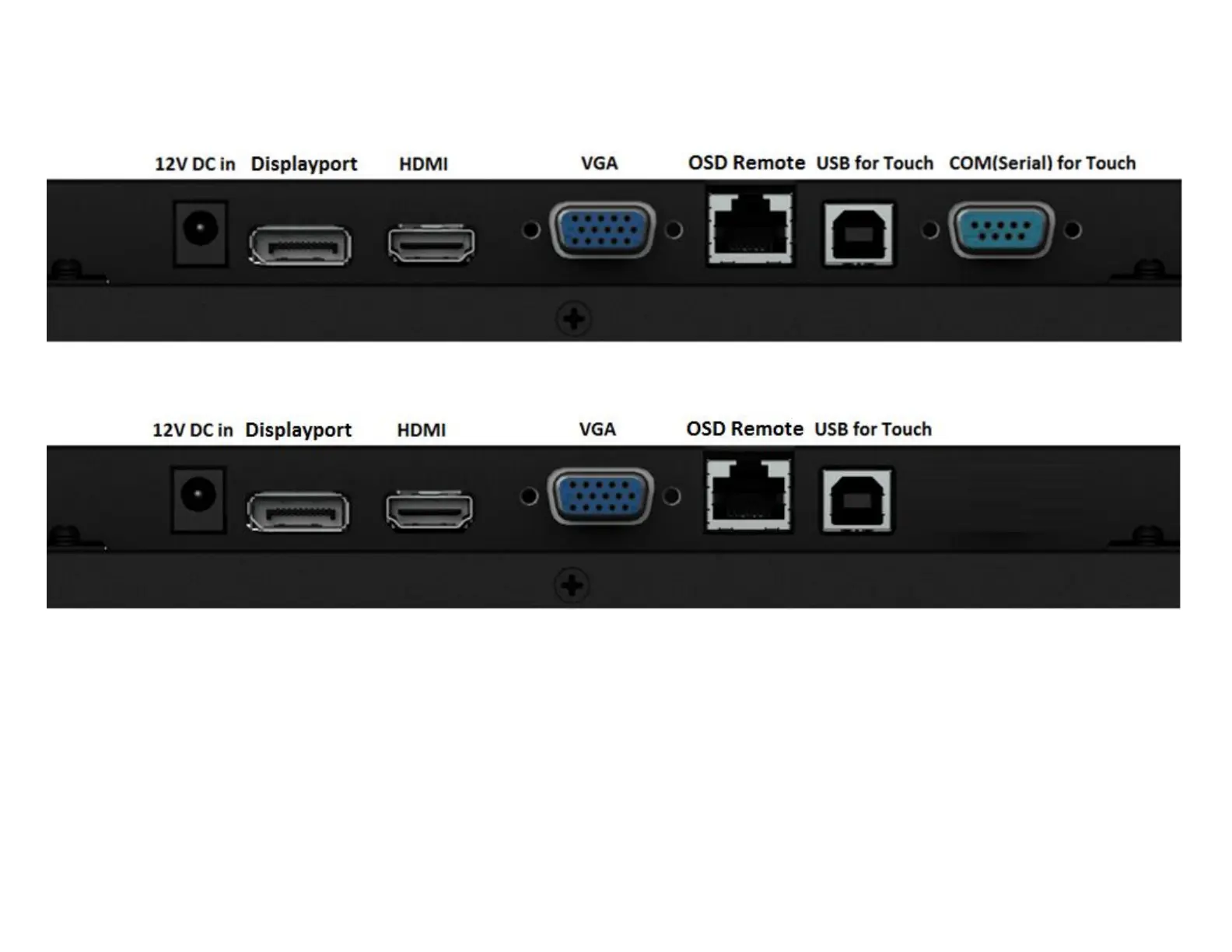

Connector Panel & Interfaces
*Please note the COM (Serial) port for touch is only applicable for EXX9XL-XCXX models and removed for the rest models.
With COM (Serial) port
Without COM (Serial) port
Touchscreen Display Connections
1.
Connect the HDMI/DP/VGA video cables between the monitor’s HDMI/DP/VGA input connectors and
your HDMI/DP/VGA video source. Tighten the video cable’s screws for best performance on VGA
connector.
2.
Connect the USB touch cable between the monitor’s USB connector and your PC’s USB port.
* Or Connect the Serial touch cable between the monitor’s COM (Serial) connector and your PC’s COM (Serial) port. (Only applicable for EXX9XL-XCXX
models)
3.
Connect a 12VDC power supply to the monitor’s input power jack.
4.
The touchscreen display ships in an ON state, video should be displayed on your monitor already.
