User Manual: ET1099L Touchscreen
UM600770 Rev A, page 8 of 30
Section 3: Mounting
Flush Mount

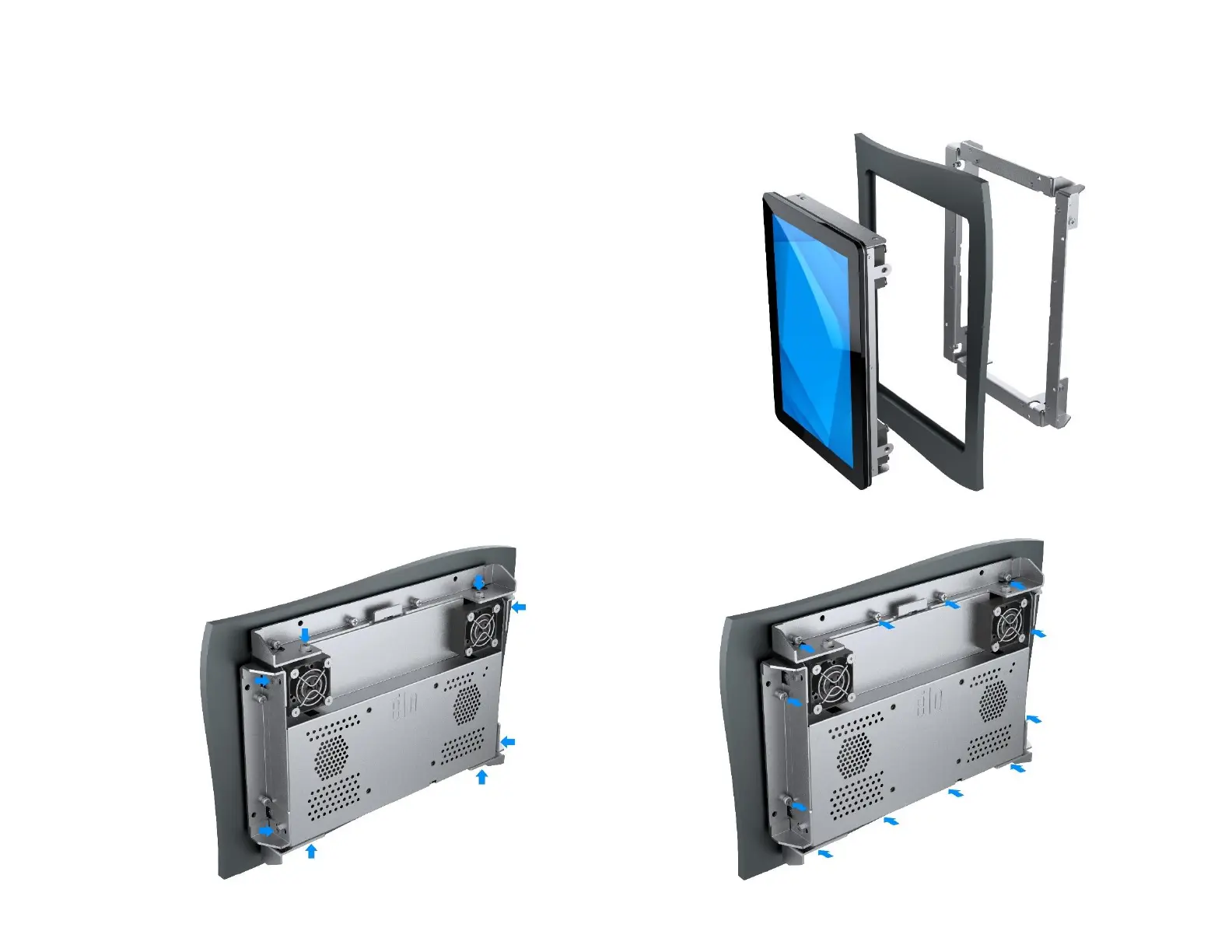

Flush-mount Bracket Installation Notes:
See dimensional drawing for the exact details of the recommended enclosure panel
opening dimensions.
1.
Place the 10.1-inch 1099 touchscreen display into your enclosure panel opening.
2.
Attach flush mounting brackets (all four sides) with M4-5mm bracket screws (included)
to secure the touchscreen onto the enclosure panel. Adjust the touchscreen as close
as possible to flush with the front of the enclosure panel before tightening M4 bracket
screws. A socket wrench is recommended if clearance is limited.
3.
Tighten the M4-6mm clamping screws on the short mounting brackets to bring the
touchscreen glass completely flush with the customer panel, then tighten the M4-6
clamping screws on the long mounting brackets, compressing the sealing gasket, and
ensuring a watertight seal to IP66 and NEMA4x standards.
Please ensure 2” clearance behind the touch screen display for airflow.
