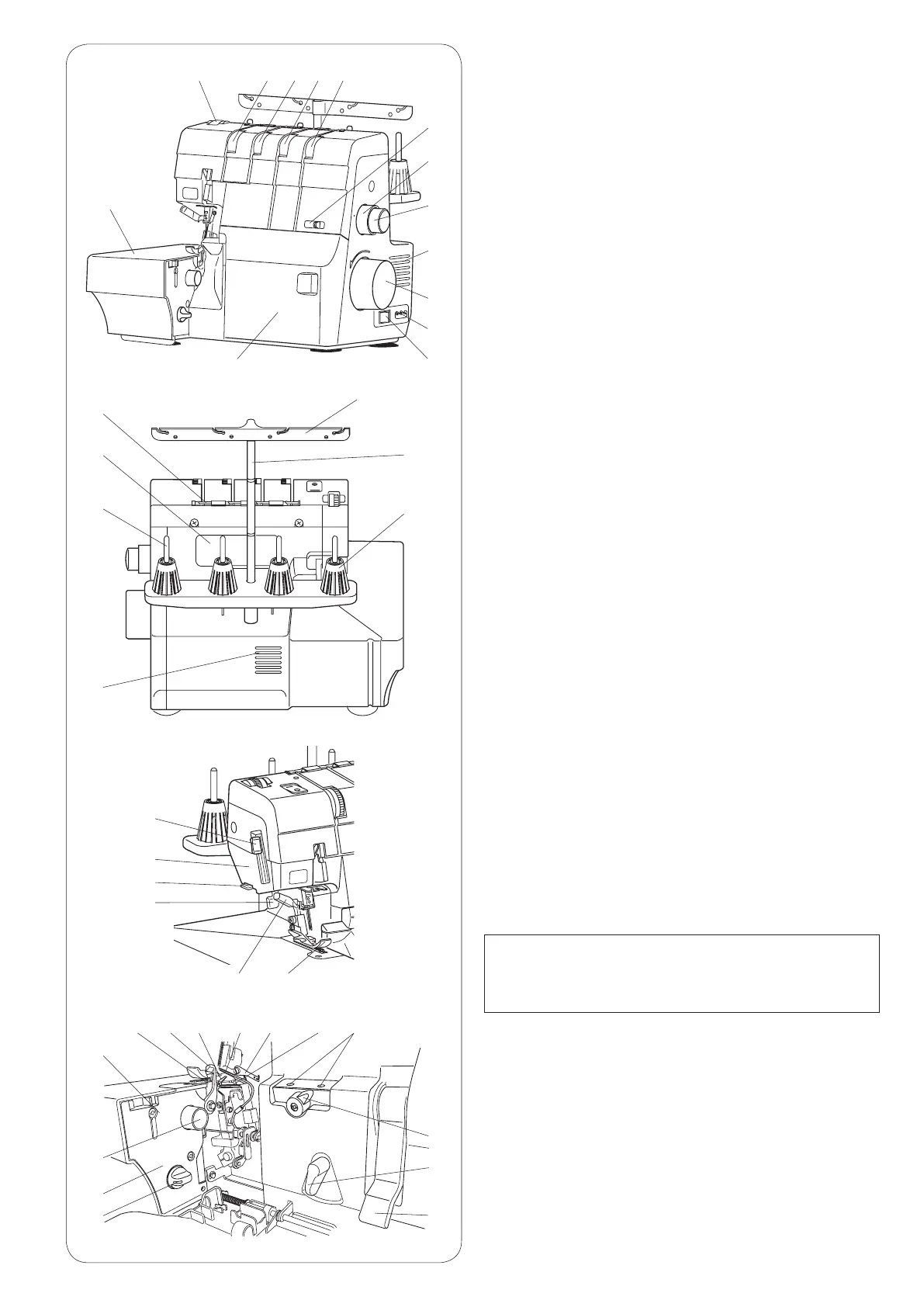

ESSENTIAL PARTS
Names of Parts
Left needle thread tension dial
Right needle thread tension dial
Upper looper thread tension dial
Lower looper thread tension dial
Lower looper pre-tension setting slider
Stitch length dial
Differential feed dial
Ventilation openings
Handwheel
Machine socket
Power switch
Looper cover
Side cover
Presser foot pressure dial
Thread guide
Thread guide bar
Spool holder
Ventilation openings
Spool pin
Hole of rear arm
Top cover thread guide
Needle threader lever
Face plate
Thread cutter
Presser foot lifter
Needle threader switch lever
Presser foot
Upper looper
Spreader
Lower looper
Looper threader hole
Looper selection lever
Looper threader switch lever
Looper threader lever
Upper knife release knob
Looper cover guide
Cutting width adjusting dial
Chaining nger switch knob
Lower knife
Upper knife
Chaining nger
