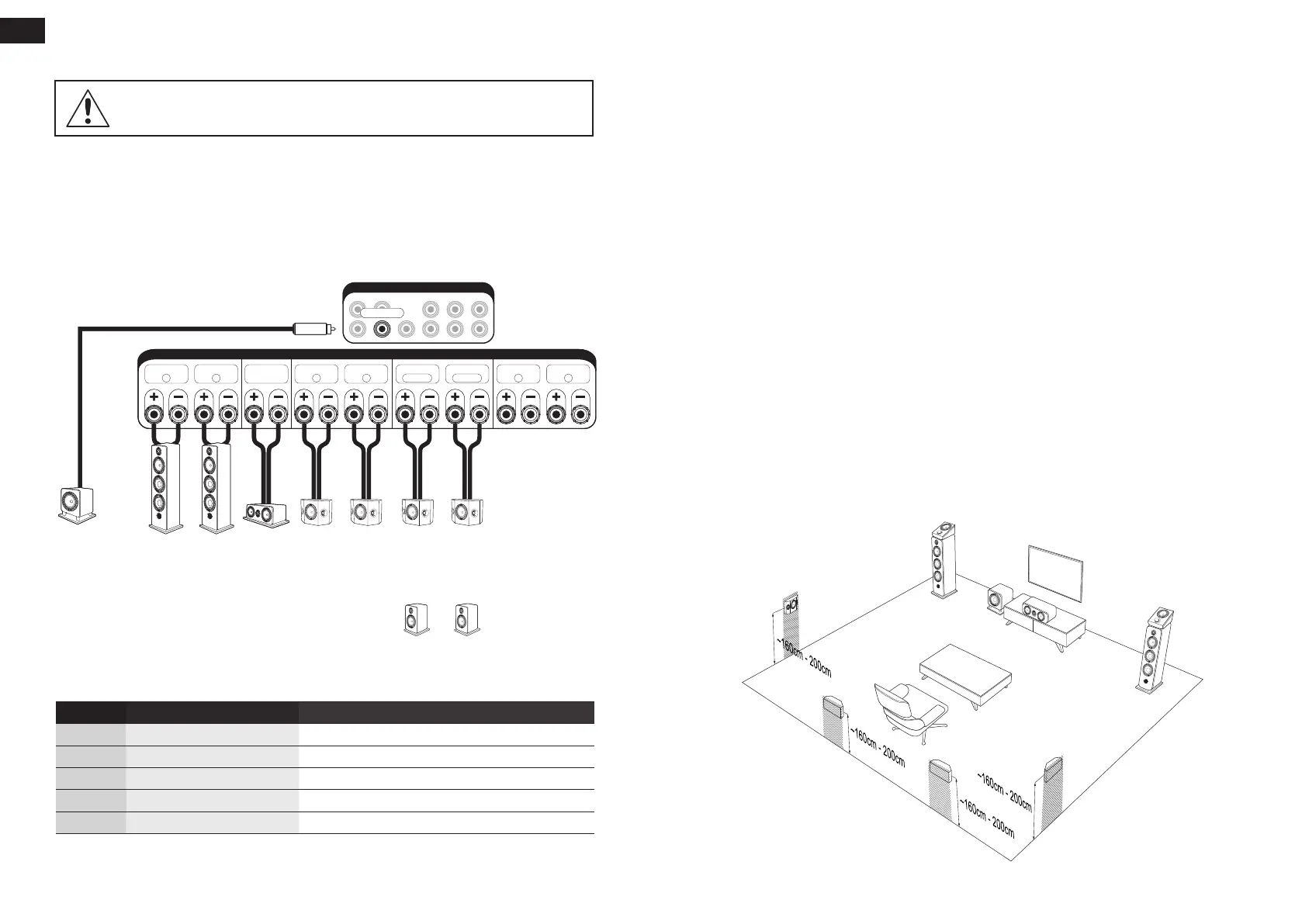

3. Connections on Home-Cinema amplier and Home-cinema preamplier
It is essential to connect the speakers using the correct polarity. Make sure to connect the
“ + ” terminal of the speaker (Red) to the “ + ” output terminal of the amplier. Then, make
sure to connect the “ - ” terminal of the speaker (Black) to the “ - ” output terminal of the
amplier. A wrong connection would cause a cribled stereo image and loss of bass. Use
high quality speaker cable. Elipson speakers are supplied congured for use in a single
wired mode or bi-wiring. Bi-amp is also possible (see page 31).
ALL THE CONNECTIONS MUST BE MADE WITH THE EQUIPMENT TURNED OFF.
*Depending your model
FRONT
R
FRONT
L
SPEAKERS
RCA SUB
PRE OUT
SUBWOOFER
HEIGHT
R
HEIGHT
L
SPEAKERS
RCA SUB
PRE OUT
SUBWOOFER
SURROUND
L
SURROUND
R
SURROUND
BACK L
SURROUND
BACK R
CENTER
•SW
SUB8
or
SUB10*
or
SUB12*
•SR
7SR
or
14LCR*
•SBR
7SR
or
14LCR*
•SBL
6B
or
8B*
•C
11C
or
14C*
or
14LCR*
•SL
7SR
or
14LCR*
•SBR
6B
or
8B*
•SBL
7SR
or
14LCR*
Speaker Enter
Description
•FR/FL FRONT RIGHT/LEFT
Speaker Front right (R) /Left (L)
•C CENTER
Central Speaker
•SR/SL SURROUND RIGHT/LEFT
Surround speaker right (R) /Left (L)
•SBR/SBL SURROUND BACK RIGHT/LEFT
Surround back speaker right (R) /Left (L)
•SW SUBWOOFER
Subwoofer
•FR
24F
or
14F*
or
34F*
or
14LCR*
•FL
24F
or
14F*
or
34F*
or
14LCR*
VI. EXTENSION INSTALLATION HOME - 7.1.2
1. Position of the Atmos speakers FHL/FHR (PF6ATM)
The Prestige Facet Atmos speakers are placed on top of the oor or bookshelf speakers.
DOLBY ATMOS® is a new technology meant to reproduce surround sound for cinema and
home cinema. This DOLBY ATMOS
®
process creates vertical sound channels in addition to the
Dolby 5.1 or 7.1 format (horizontal plane) and thus offers a totally immersive audio experience.
In order to have access to this technology and experience the emotion of DOLBY ATMOS
®
,
you have to equip yourself, in addition to your 5.1 or 7.1 system, with dedicated loudspeakers
in order to emit sound vertically. There are speakers that are positioned directly in the
ceiling, but these require a considerable amount of time and effort to install. There are also
specic speakers that direct the sound to the ceiling from the oor. It is this second solution,
certied DOLBY ATMOS
®
, that Elipson has adopted, simplifying the installation process. These
loudspeakers, whose drivers are specically ltered and tilted, emit a sound eld towards the
ceiling which must imperatively be reective. The sound waves are thus reected off of the
ceiling to allow the listener to benet from this vertical sound dimension. The rendering is ultra
realistic, for a completely immersive experience in the heart of your movie. You can buy one
or two pairs of ATM speakers, placed at the front (1st pair) and also at the back (2nd pair) of
your dedicated home cinema room, directly on your main speakers or surround speakers. You
can also opt for the IXATM oorstanding loudspeaker with a built-in DOLBY ATMOS
®
module.
In order to fully enjoy the DOLBY ATMOS
®
sound, your amplier must be compatible with this
technology, and have enough channels and the associated digital processing technology.
Caution : A Dolby Atmos compliant amplier is essential to the proper use of the speakers.
Contact your dealer for more informations.
•FR
•FHR
•FHL
•FL
•C
•SW
•SL
•SBL
•SBR
•SR
