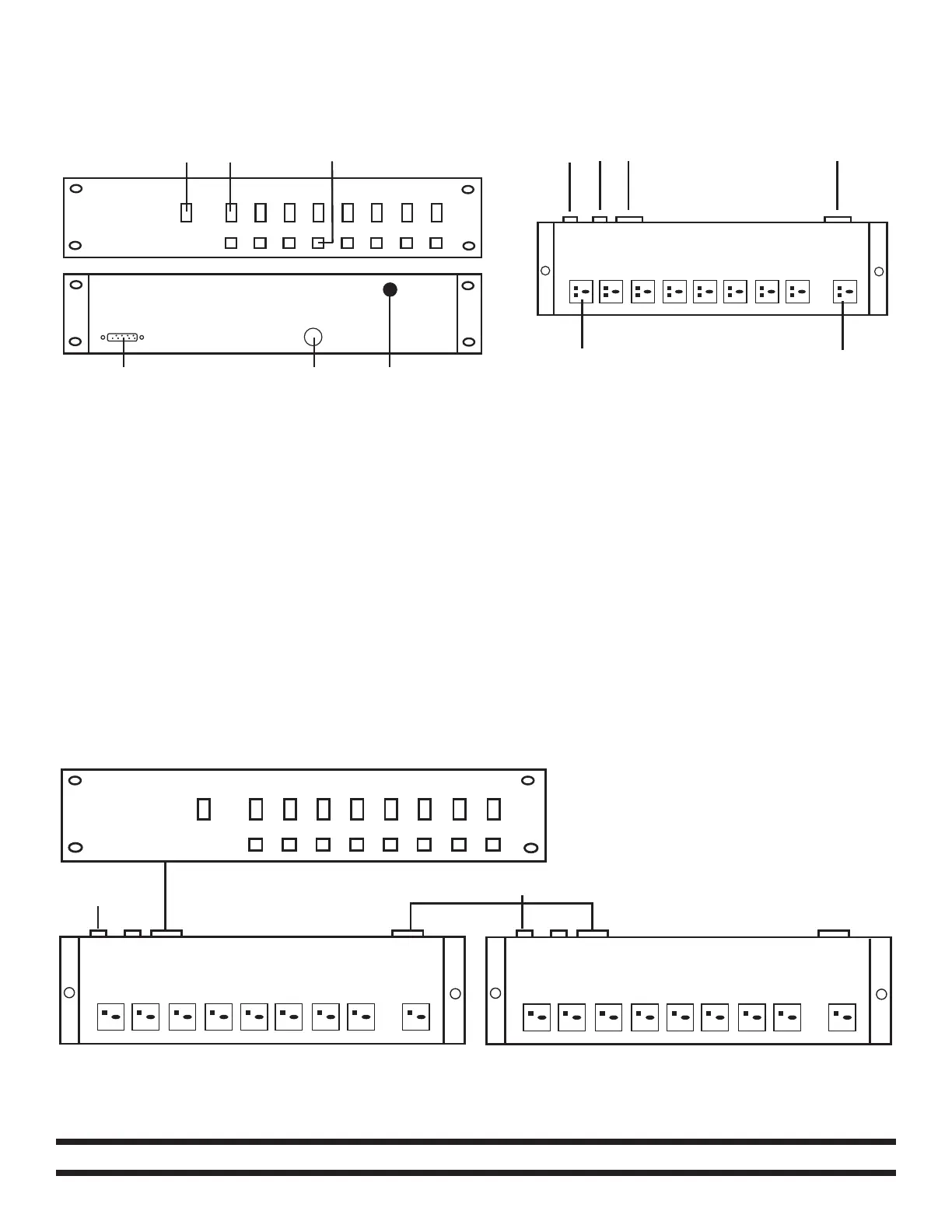

CONTROLS AND COMPONENTS:
1. MASTER ON/OFF SWITCH.
2. INDIVIDUAL CHANNEL SWITCHES.
3. FLASH ON BUTTON FOR EACH INDIVIDUAL CHANNEL.
4. 9 PIN LINE OUT CONNECTOR.
5. 12V POWER SUPPLY
6. FUSE
7. CHANNEL 1-8 110V SWITCHED SOCKETS.
8. UNSWITCHED 110V SOCKET FOR CONSTANT ON ITEM OR LINKING AC
TO ANOTHER RELAY PACK.
9. 9 PIN LINE OUTPUT FOR LINKING PACKS.
10. 9 PIN LINE INPUT FROM SC-8FC OR FROM ANOTHER SC- RP8.
11. 15 AMP CIRCUIT BREAKER.
12. A/C CORD AND PLUG.
1 2
4
65
7
3
12
11
10 9
8
Important Notice: Never attempt to run more than 2 power packs per a controller -
More than 2 power packs can cause damage to the controller and power packs!
A/C
A/C
SAMPLE SET UP
