10

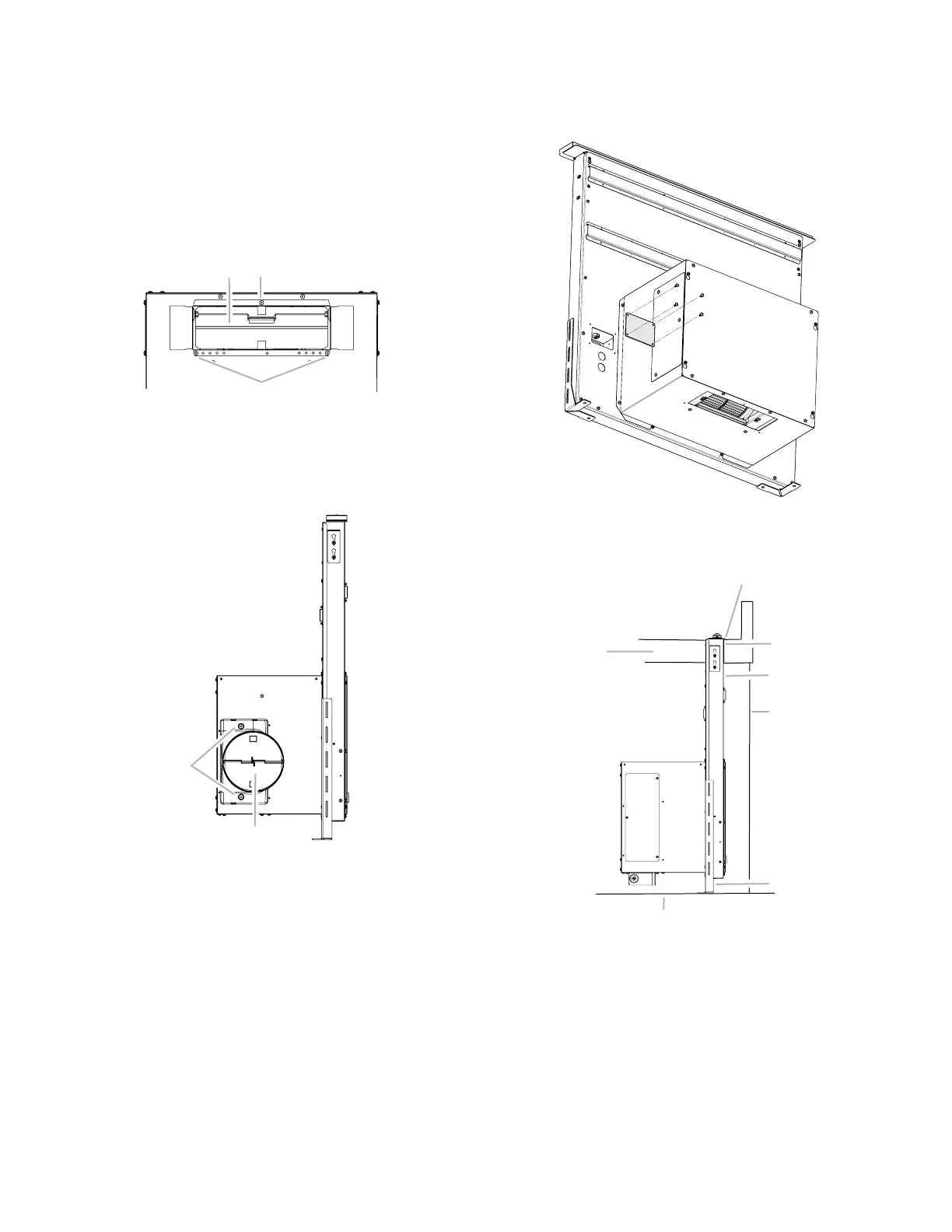

Complete Installation
NOTE: The downdraft vent system is supplied with a 3
1
⁄4” x 10”
(8.3 x 25.4 cm) rectangular vent transition and a 6” (15.2 cm) round
vent transition with damper. Refer to “3
1
⁄4” x 10” (8.3 x 25.4 cm) back
draft damper” or “6” (15.2 cm) round vent transition with
damper,” depending upon the type of venting you are using.
3
1
⁄4” x 10” (8.3 x 25.4 cm) back draft damper
1. Attach the 3¼” x 10” (8.3 x 25.4 cm) back draft damper to the
vent opening in the blower motor box, using three 3.5 x 9.5 mm
screws.
A
AB
A. 3.5 x 9.5 mm screws
B. 3¼” x 10” (8.3 x 25.4 cm) back draft damper
6” (15.2 cm) round vent transition with damper
2. Attach the 6” (15.2 cm) round vent transition to vent opening
(left or right side venting only is recommended), using two
3.5 x 9.5 mm screws.
A
B
A. 3.5 x 9.5 mm screws
B. 6” (15.2 cm) round vent transition with damper
3. Remove 4 screws attaching the terminal box cover.
4. Determine which direction (front or rear) the home power supply
cable will enter the terminal box. Remove the appropriate
knockout from the front or rear panel and install a ½” (12.7 mm)
UL listed or CSA approved conduit connector.
5. Using 2 or more people, insert the downdraft vent into the
countertop cutout. Position downdraft vent so it is centered in the
cutout with the rear ange over the edge of the cutout and the
rear of the vent box against the edge of the cutout.
A
B
G
C
D
E
F
A. Rear ange of downdraft vent
B. Edge of cutout in countertop
C. Rear of downdraft vent
D. Cabinet back
E. Lower support leg
F. Cabinet oor
G. Countertop
