15
Installation
• The minimum distance between the supporting surface for the cooking
equipment on the hob and the lowest part of the range hood must be
not less than 60cm from electric cookers and 70cm from gas or mixed
cookers.
If the instructions for installation for the gas hob specify a greater
distance, this must be adhered to.
• This appliance is marked according to the European directive
2012/19/EC - UK SI 2013 No.3113 on Waste Electrical and Electronic
Equipment (WEEE).
• By ensuring this product is disposed of correctly, you will help prevent
potential negative consequences for the environment and human
health, which could otherwise be caused by inappropriate waste
handling of this product.
• The symbol on the product, or on the documents
accompanying the product, indicates that this appliance may not be
treated as household waste. Instead it should be taken to the
appropriate collection point for the recycling of electrical and electronic
equipment. Disposal must be carried out in accordance with local
environmental regulations for waste disposal.
• For further detailed information regarding the process, collection and
recycling of this product, please contact the appropriate department of
your local authorities or the local department for household waste or the
shop where you purchased this product.
Appliance designed, tested and manufactured according to:
• Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233.
• Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168;
EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN
50564; IEC 62301.
• EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC
61000-3-2; EN/IEC 61000-3-3. Suggestions for a correct use in order to
reduce the environmental impact: Switch ON the hood at minimum
speed when you start cooking and kept it running for few minutes after
cooking is finished. Increase the speed only in case of large amount of
smoke and vapor and use boost speed(s) only in extreme situations.
Replace the charcoal filter(s) when necessary to maintain a good odor
reduction efficiency. Clean the grease filter(s) when necessary to
maintain a good grease filter efficiency. Use the maximum diameter of
the ducting system indicated in this manual to optimize efficiency and
minimize noise.
Use
The hood is designed to be used solely as a FILTER version.
The aspirated air will be degreased and deodorised before being fed
back into the room.
In order to use the hood in this version, you have to install a system of
additional filtering based on activated charcoal.
Operation

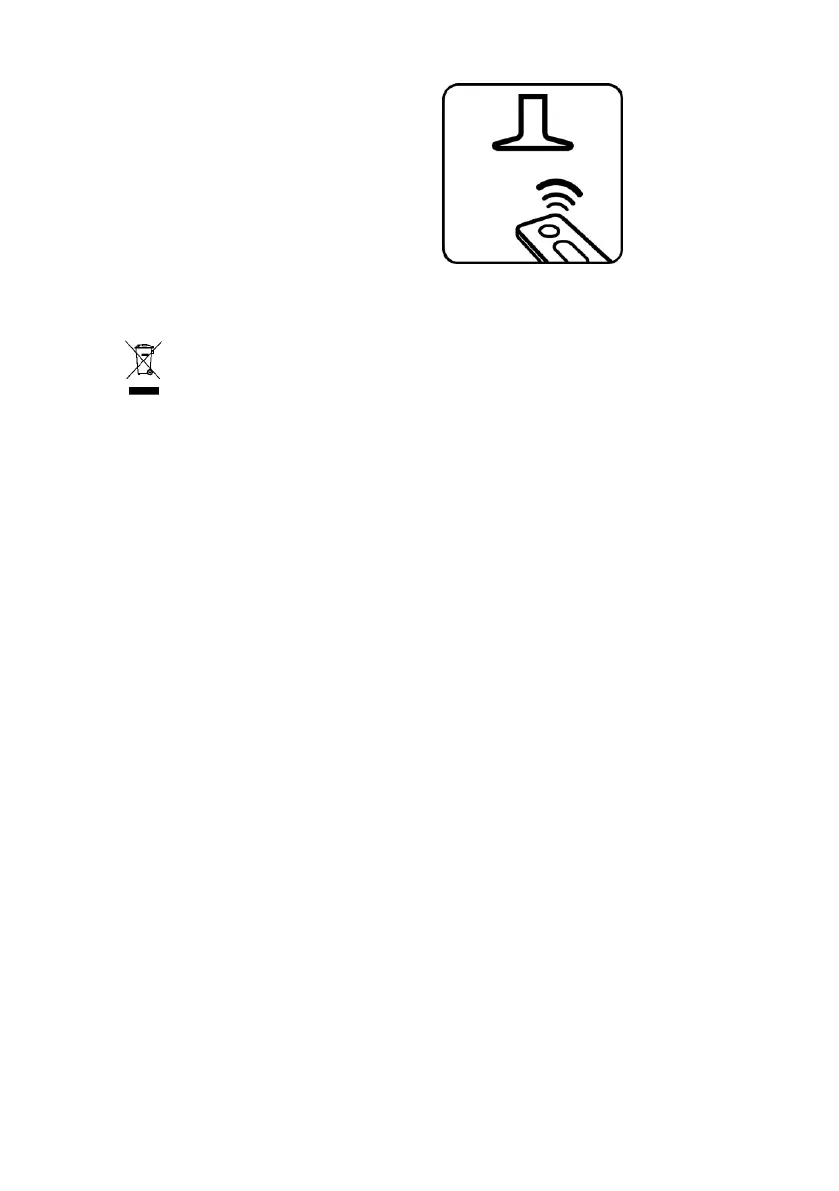

This product is designed to work with an Elica remote control, either
supplied with the product or purchased separately as an optional.
To control the hood via remote control, the affiliation procedure must be
carried out.
CAUTION!
To begin, the hood must be disconnected and then reconnected to the
power supply and the affiliation procedure must be carried out within the
first minute of connection to the power.
Read the instructions supplied with the remote control, which provide
detailed instructions on affiliation and correct use.
Note: the Speed 4 (and the Speed 5, where applicable) if selected, will
activate for a limited period of time after which Speed 2 is automatically
enabled.
Remote control connection (if applicable)
Once the remote control has been connected, this will be displayed on
the hood:
both LEDs flash.
Note: Using the remote control, delayed shut-down can be
programmed based on the aspiration speed (power) enabled at that
moment:
Speed 1 (low aspiration): 20 minutes
Speed 2 (medium aspiration): 15 minutes
Speed 3 (high aspiration): 10 minutes
Filter Saturation indicator lights
At regular intervals, the LEDs on the hood indicate the need to carry out
filter maintenance.
Note: The filter saturation signal is visible for a few seconds when the
hood is switched on; within this time, the saturation indicator lights must
be reset.
Flashing Green LED: carry out maintenance on the grease filter.
Red flashing LED: carry out maintenance on the charcoal filter (only for
hoods operating in "Filtration Version").
Note: Run the "RESET FILTRES" command via the remote control.
Activating/deactivating the filter saturation indicator light
Note: Run the procedure with the hood switched off. The charcoal filter
saturation indicator light is usually deactivated.
If no control is given within maximum 10 sec, the hood automatically
exits this function, at any time, and returns to the previous state.
Press and hold the B+C keys (Simultaneously) to enter the setup menu:
Briefly press button C to select the filter to be set up:
