38
Installation manual

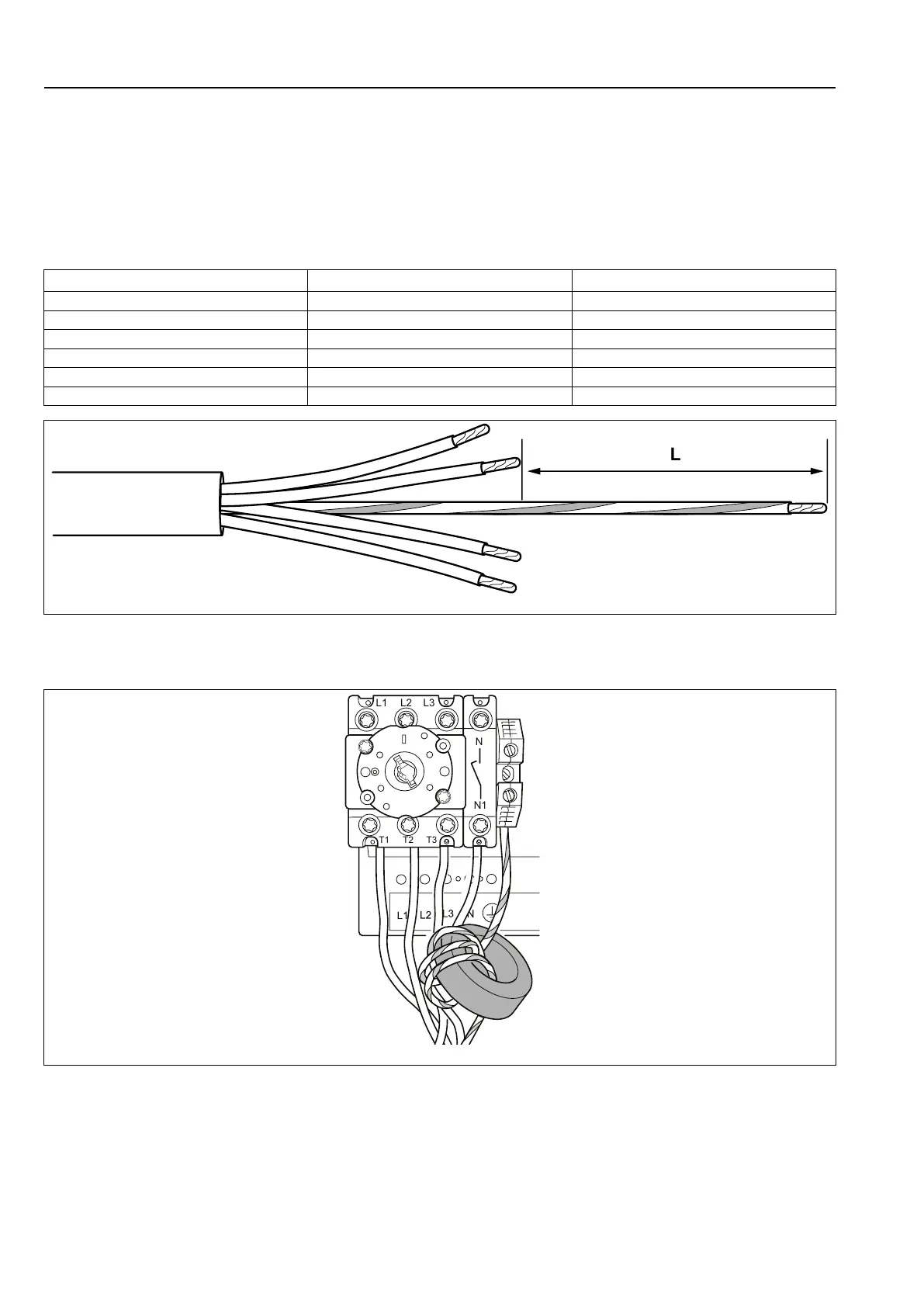

9.4 Machine connection with ferrite
9.4.1 WS6–28, WS6–35
To obtain approved level of EMC, it is mandatory to use the ferrite which is enclosed with above listed models. (Note
that this is only valid for those models).
Before connecting to the machine, the protective earth (PE) wire shall be wrapped around the ferrite.
Prepare the power cord by making sure the protective earth (PE) wire is longer than the other wires according to the
table.
Wire size L x times through
AWG14 or 2.5 mm
2
230 mm x 4
AWG12 or 4 mm
2
250 mm x 4
AWG10 or 6 mm
2
270 mm x 4
AWG8 or 10 mm
2
290 mm x 4
AWG6 or 16 mm
2
330 mm x 4
AWG4 or 25 mm
2
490 mm x 4
L
fig.X01516
When the power cord has been prepared according to the table, wrap the protective earth (PE) wire through the fer-
rite and then connect all wires according to the “Machine connection” section.
T1
T2
T3
N1
N
L1
L2
L3
fig.X01360A
