Installation manual
7.2.2 Machine without connectors
Connect the external dosing system to the I/O board, which is located to the right of the incoming power supply.
The I/O board has edge connectors for connecting external dosing systems.
Edge connectors on the I/O board can be loosened for connecting cables.

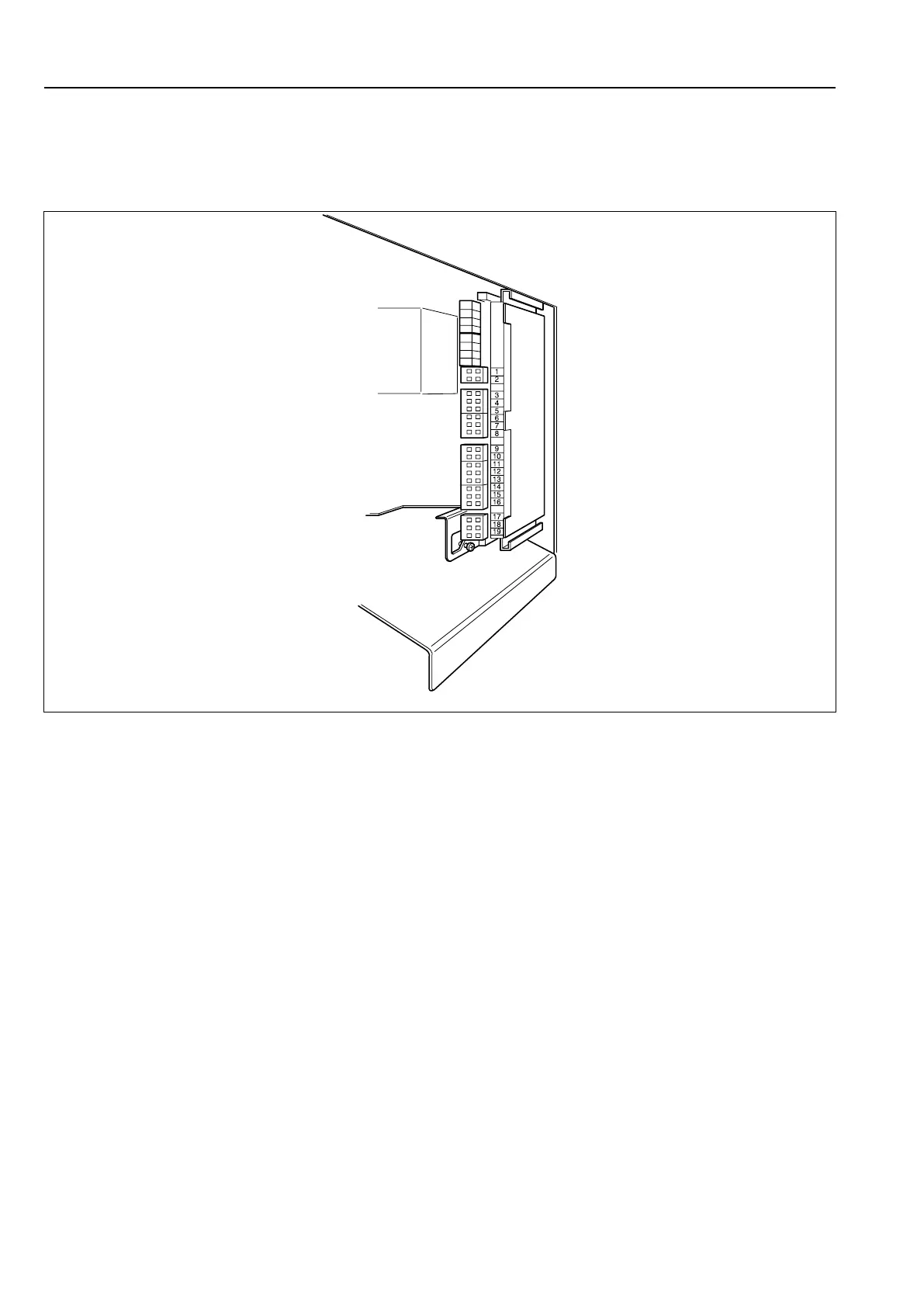

fig.6572
11 = N
18 = Program run
12 = Signal 1
13 = Signal 2
14 = Signal 3
15 = Signal 4
16 = Signal 5
