Installation manual
19

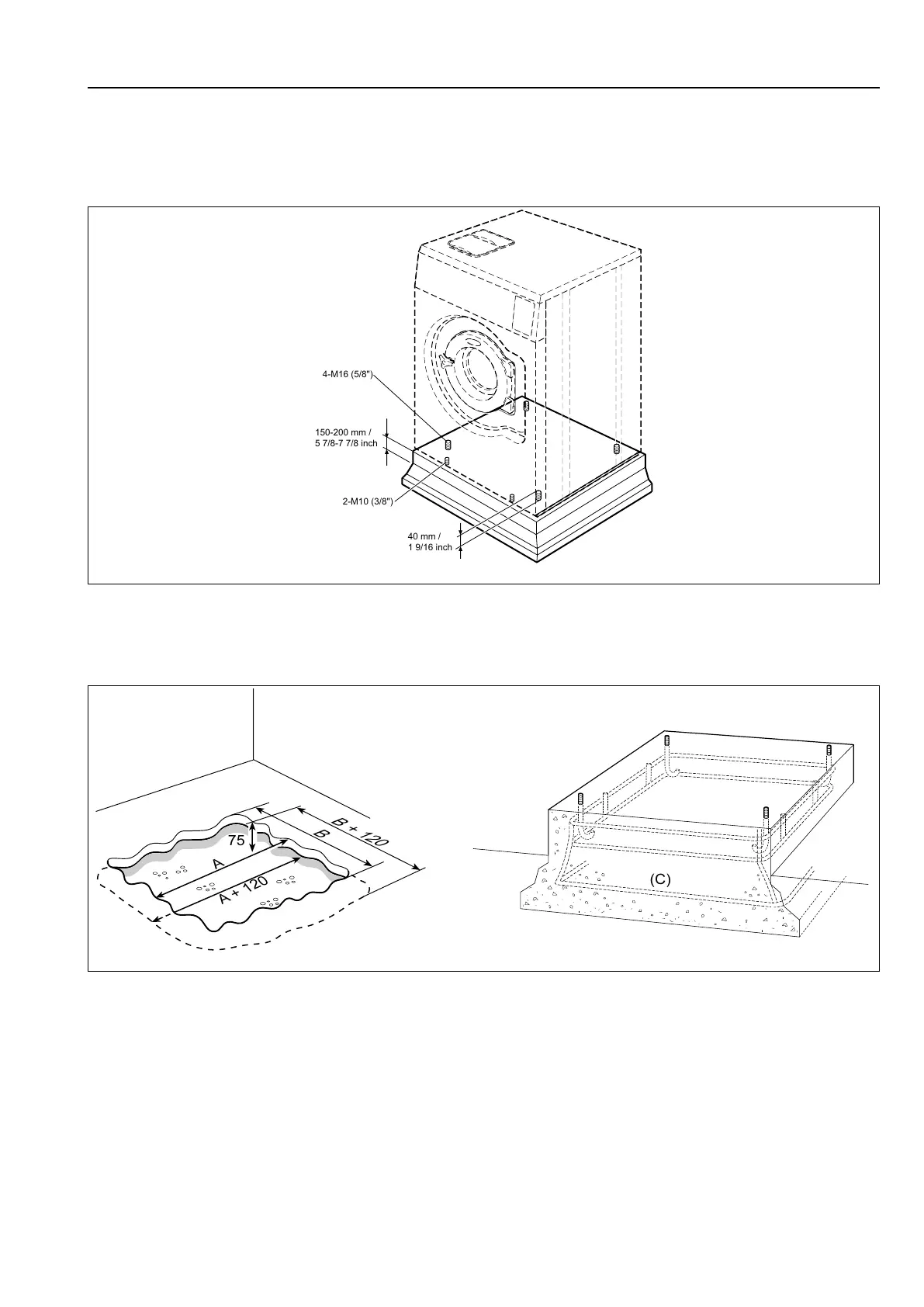

4.4.1 Casting a plinth
A plinth should be used where the existing floor is less than 150 mm thick or in order to ensure that the machine is
above the level of any water leakages.
The plinth should be approximately 150 - 200 mm in height.
150-200 mm /
5 7/8-7 7/8 inch
40 mm /
1 9/16 inch
4-M16 (5/8")
2-M10 (3/8")
fig.5462A
Proceed as follows:
• Break up the existing floor to a depth of approx. 75 mm and check that the sides of the hole are tapered outward
so that the longest side at the bottom measures 120 mm more than at the top. (See A and B from previous table).
A + 120
A
75
B
B + 120
(C)
fig.0899B
• Make the mould for the plinth.
• 4 bolts must be set into the concrete of the machine base. The bolts need to project 40 mm out of the base. Pour
the concrete into the prepared base mould and make sure that the surface is level. Check the previous table for
the correct position of the bolts.
• Moisten the hole well and apply concrete to the sides and bottom. Required minimum concrete strength at least
20.7 MPa. Recommend the rebars (C) shall be used around the base. The rebars shall be placed between the
bolts and the edge of the foundation. The bolts shall have the fish plate at the bottom or equivalent (bent at the
bottom).
• The concrete must be set and strength at least 20.7 MPa before mounting the machine on the plinth.
