Installation manual
17
4.4 Mechanical installation
Foundation requirement
In this type of machine, the drum is attached directly to the frame. As a result the floor under the machine must be
stable enough to absorb the dynamic forces generated during spin cycles. For that reason, the mounting bolts must
be cast into the floor material itself.
When securing the machine to an existing concrete floor, it must be at least 200 mm thick, with a minimum concrete
strength of 20.7 MPa. The floor must be free of seams and cracks.
If the floor is less than 200 mm, an alternative might be to cast a plinth. The floor must be able to withstand the loads
indicated in the table in the Technical data section.
If an existing concrete floor (of 200 mm minimum thickness) is to serve as the foundation, but it is not possible to cast
“J” bolts into the concrete, an alternative is to use so called chemical anchor bolts.
The machine must be securely fastened to a suitable foundation using 4–M16 (5/8 inch) threaded rod, heavy duty flat
washers and lock nuts or lock washers. Also two M10 (3/8 inch) expansion bolts (1) MUST be installed at the
front of the machine. If all six anchors are not properly installed, large vibrations in the machine’s cabinet
may occur.
Failure to properly secure the machine to its foundation, or securing the machine to an inadequate foundation, will re-
sult in severe vibration, damage to the machine, and will void the manufacturer’s warranty.

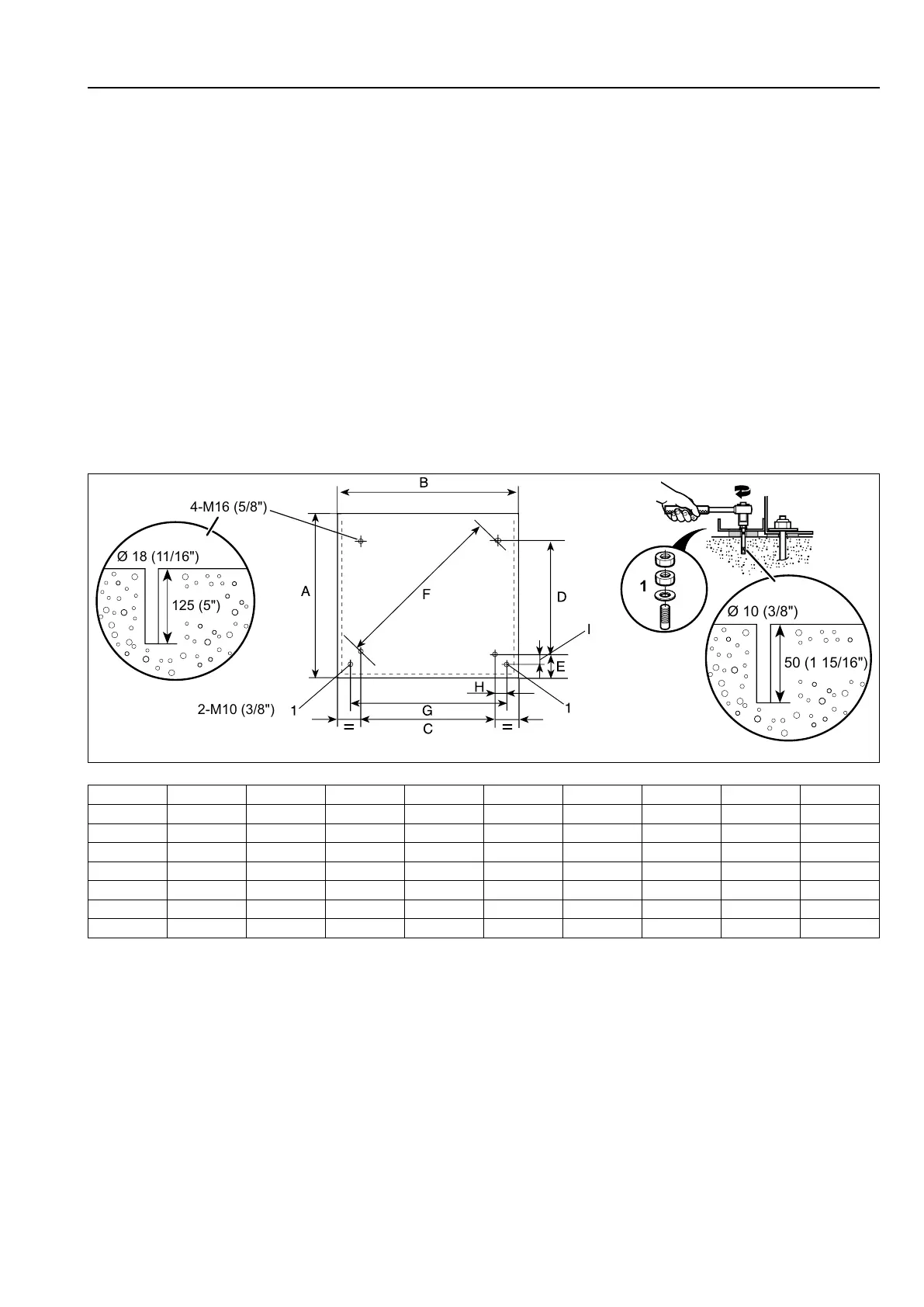

The following table shows the drilling points.
4-M16 (5/8")
2-M10 (3/8")
1
50 (1 15/16")
Ø 10 (3/8")
125 (5")
Ø 18 (11/16")
fig.5989E
mm
A B C D E F G H I
WS6–8 685 660 496 394 115 633.4 496
-
74.5
WS6–9 725 660 496 443 115 665 496
-
74.5
WS6–11 700 720 575 387 120 693.1 595 10 79
WS6–14 785 720 575 495 120 758.7 595 10 79
WS6–20 875 750 636.5 569.5 120 854.1 657.5 10.5 83.3
WS6–28 950 830 716 633 125 955.7 738 11 86.3
WS6–35 1035 910 789.5 696 135 1052.5 811.5 11 94.5
Mark and drill all holes for bolts in the positions shown.
Fix the thread rod M16 to the floor.
