Installation manual
13
4.3 Siting
Install the machine close to a floor drain or open drain.
The machine should be positioned so that there is plenty of room for working, both for the user and service personnel.

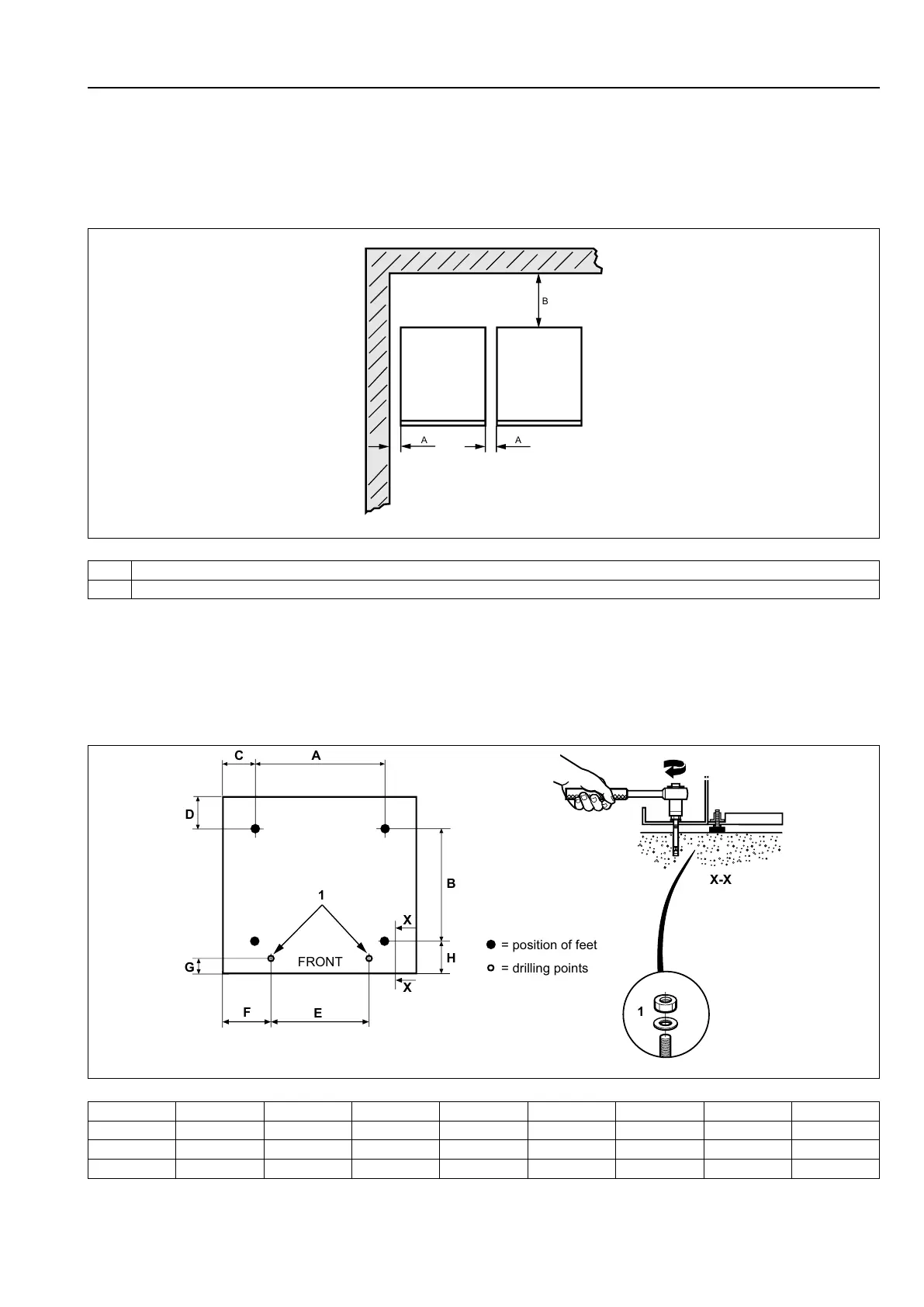

The figure shows minimum distance to a wall and/or other machines. Failure to respect the prescribed distances will
prevent easy access for maintenance and service operations.
A A
B
fig.X00959
A 25 mm
B 500 mm
4.4 Mechanical installation
If the machine is not to be mounted on a base the machine must be fastened to the floor with the enclosed expansion
bolts.
The table shows the correct position of feet and drilling points.
Mark and drill two holes (⌀ 10 mm) about 50 mm deep in position (1).
C A
D
G
F
E
B
H
FRONT
= drilling points
= position of feet
1
1
X
X
X-X
fig.5989C
mm
A B C D E F G H
WH6–20LAC 715 545 125 205 595 185 65 125
WH6–27LAC 790 615 115 180 670 175 65 125
WH6–33LAC 900 835 60 140 670 175 60 80
