Installation manual
31
6.3 Three-phase connection

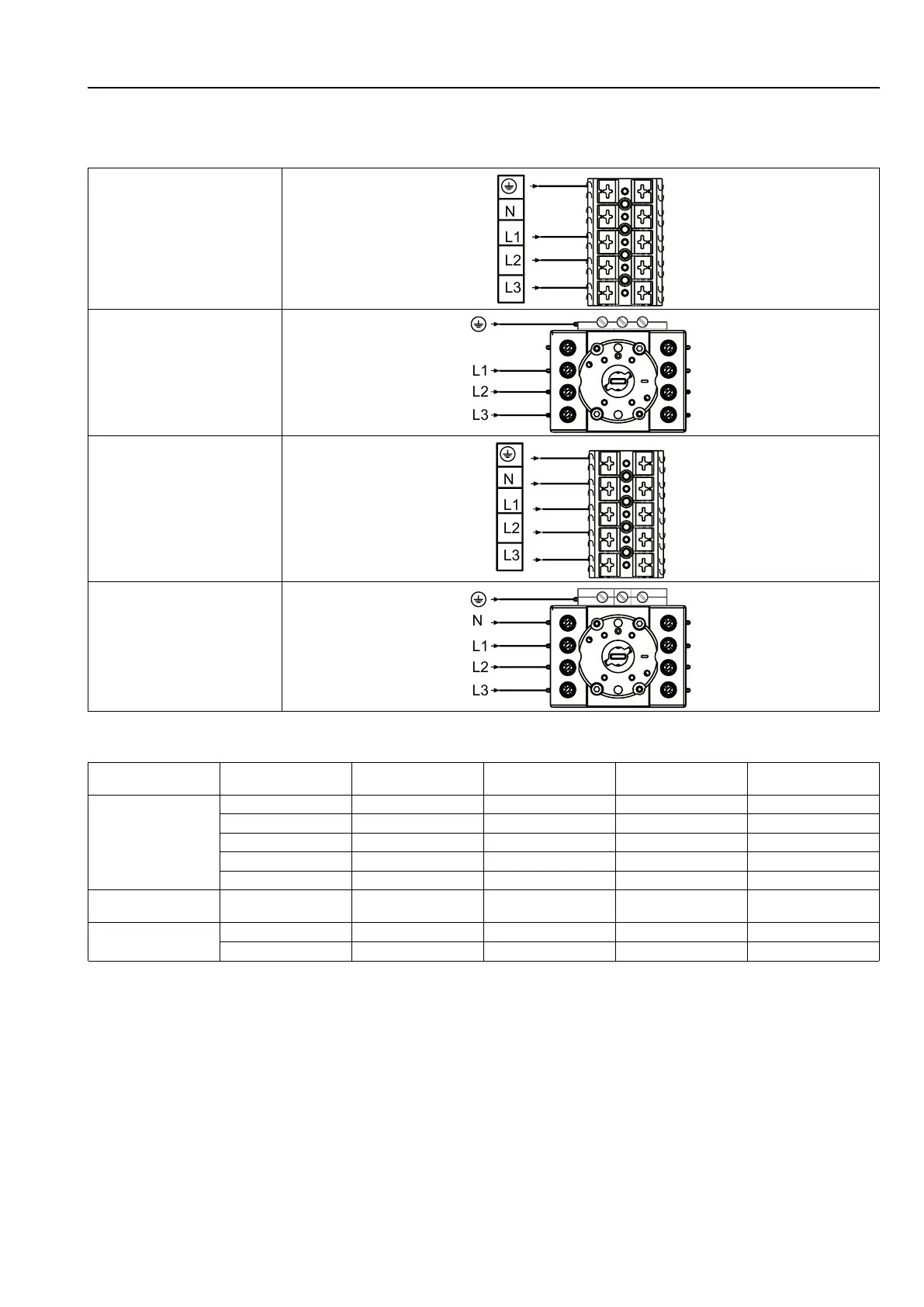

Demount the cover panel from the supply unit. Connect the earth and other wires as shown.
3AC
L3
L2
L1
N
3AC
L1
L2
L3
3NAC
L3
L2
L1
N
3NAC
N
L1
L2
L3
6.4 Electrical connections
Heating alternative Main voltage Hz Heating power
kW
Total power
kW
Recommended fuse
A
Electric heated
machines
220–240V 1~ 50/60 6.0 6.3 32
220–230V 3~ 50/60 6.0 6.3 20
240V 3~ 50/60 6.0 6.3 16
380–400V 3~ 50/60 6.0 6.3 10
415/440/480V 3~ 60 6.0 6.3 10
Gas heated
machines
220–480V 1/3~ 50/60 * 0.3 10
Machines with heat
pump
220-240V 1/1N 3~ 50/60 * 2.3 10
380-415V 3N~ 50/60 * 2.3 10
* Total power and recommended fuse does not depend on the heating power in those cases.
