Installation manual
27
Measure when the machine is running with a program without heat and with an empty drum.
To be able to adjust the air flow for an optimal drying process it is recommended to install a damper in the ducting
system. By opening and closing the damper the pressure in the hole (A) is either lowered or raised, thus the flow is
raised or lowered.

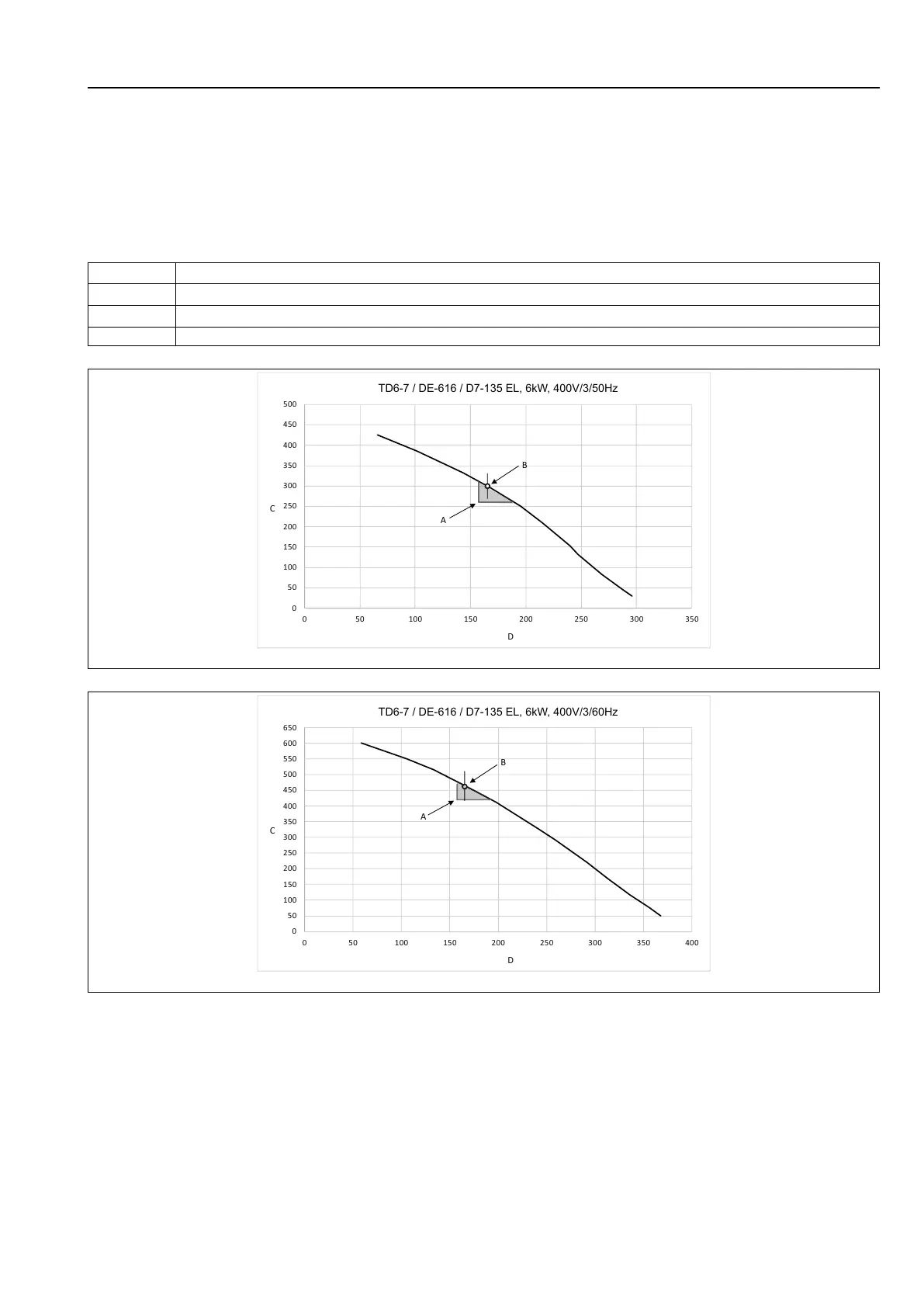

Diagram with pressure drop curve
The grey area (A) illustrates the optimal working area.
A Working area
B Optimum airflow cold empty machine
C Static back pressure, Pa
D Air flow m
3
/h
0
50
100
150
200
250
300
350
400
450
500
0 50 100 150 200 250 300 350
C
D
TD6-7 EL ,6kW ,400V/3/50Hz
A
B
TD6-7 / DE-616 / D7-135 EL, 6kW, 400V/3/50Hz
fig.X01556A
0
50
100
150
200
250
300
350
400
450
500
550
600
650
0 50 100 150 200 250 300 350 400
C
D
TD6-7 EL ,6kW ,400V/3/60Hz
A
B
TD6-7 / DE-616 / D7-135 EL, 6kW, 400V/3/60Hz
fig.X01557A
