Installation manual
19
5.6 Adjusting the dryer
Adjusting the air flow may only be carried out by authorized personnel.
The dryer is pre-set for optimal air flow with up to 15 m equivalent pipe length. For longer pipes it is necessary to ad-
just the dryer according to the following instructions.
For default settings from factory, check the label attached on the damper.
Adjust the dryer by demounting the lower back panel and measure the pressure in the fan housing.
Demount the lower back panel.
From machine number 4512020301-; also demount the cover positioned over the heating sensor.

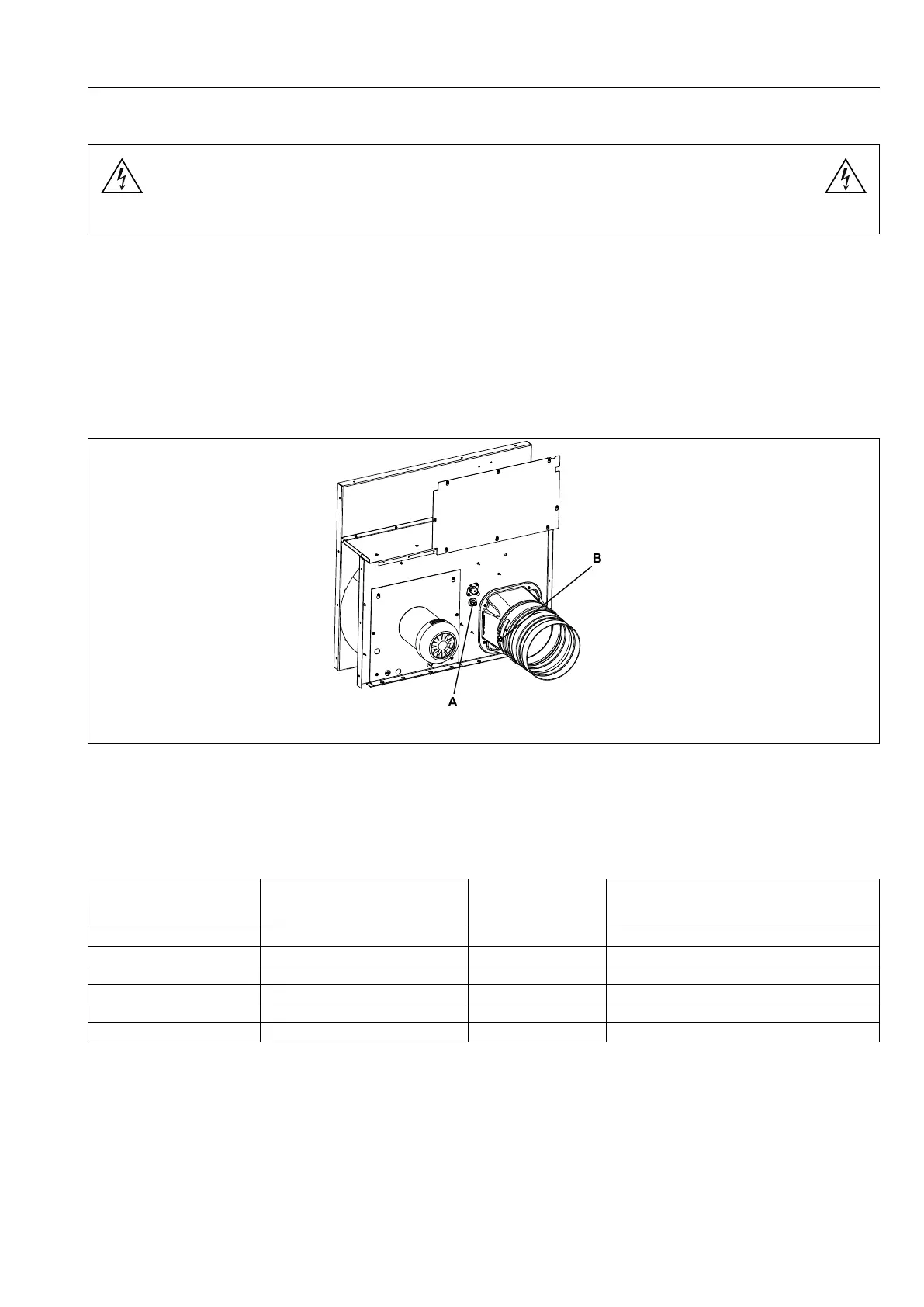

Demount the heating sensor (NTC sensor) (A) and insert the measuring device. Make sure the connection is tight to
prevent air leakage.
Loosen the screws on the damper and open the damper (B) as much as possible.
A
B
fig.7525
Measure with a pressure measuring instrument (manometer) with an empty drum and with a program without heat.
By opening and closing the damper (B) the pressure at the heating sensor (NTC sensor) (A) is either lowered or
raised.
The optimum drying performances are achieved when the measured static pressure correspond to the value listed in
the following table.
Model name Heating / Frequency Static pressure in
NTC sensor position
(Pa)
Resulting Nominal air flow cold empty ma-
chine (m
3
/h)
TD6–16 Electric / 50 Hz 400 550
TD6–16 Electric / 60 Hz 850 550
TD6–16 Gas / 50 Hz 400 610
TD6–16 Gas / 60 Hz 850 610
TD6–16 Steam / 50 Hz 600 690
TD6–16 Steam / 60 Hz 1100 690
