Installation manual
29
4.8 External connections

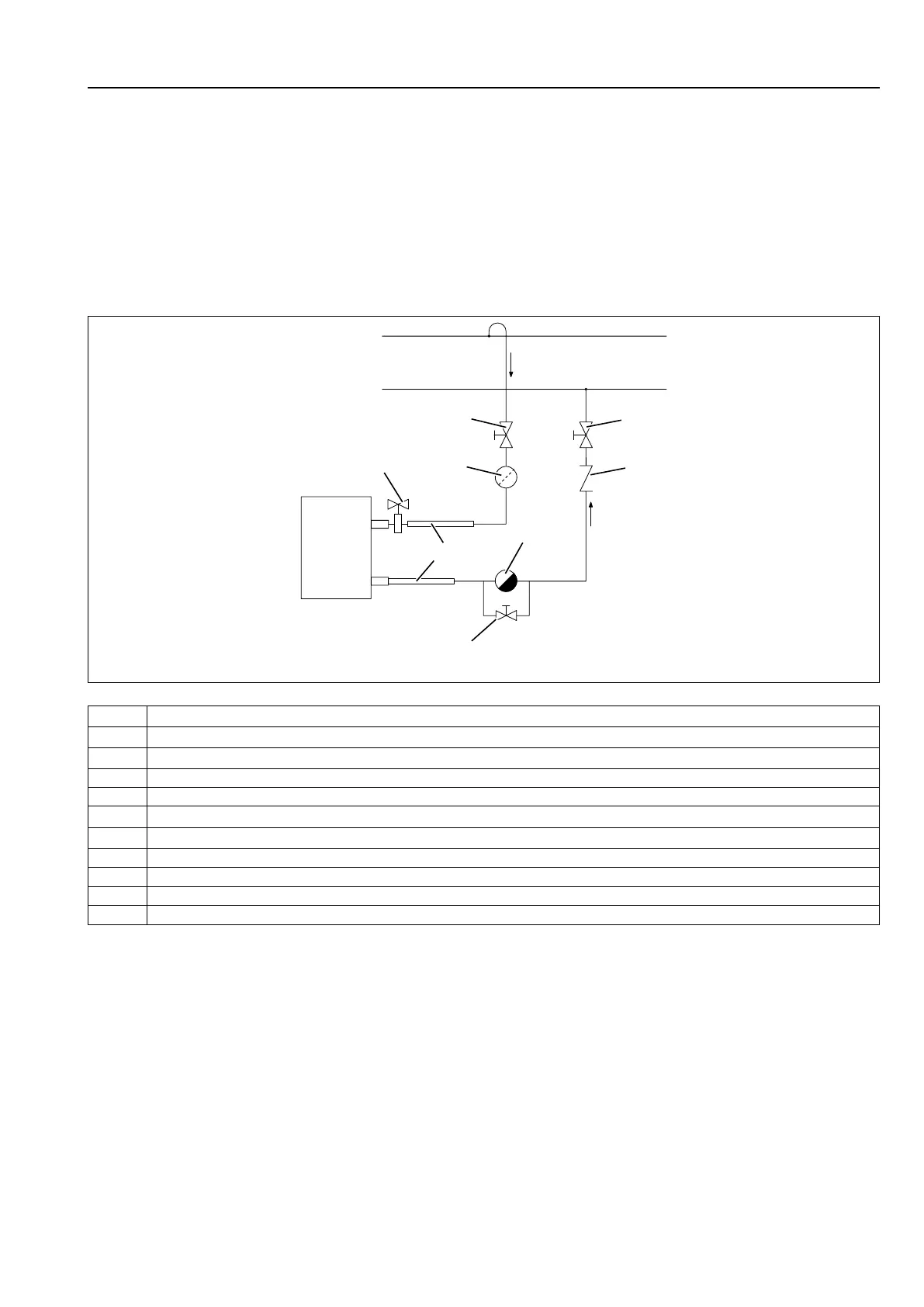

4.8.1 Steam installation (only steam heated machines)
The steam line must be connected to the upper side of the main steam line in order to prevent condensate running
down to the tumble dryer.
The branch line must be installed with a slope angle and must terminate higher than the inlet connection.
It is important that the condensate line is installed lower than the outlet connection and maintains a slope angle all
the way to the main condensate line.
Install flexible steam hoses between the branch lines and the machine's steam battery (hoses not supplied).
Steam hoses must not hang freely.
A
B
2
3
4
8
9
1
5
6
7
fig.6802A
1 Steam valve (enclosed with the machine)
2 Shut-off valve, steam
3 Shut-off valve, condensate
4 Steam fliter
5 Flexible steam hoses
6 Steam trap
7
Shut-off valve, steam
8 Non-return valve
9 Steam unit
A Steam
B Condensate
4.8.2 Pipe insulation
All pipes must be insulated to minimise the risk of burns. The insulation also reduces heat loss to the surroundings.
