3.2 Built-in hobs
Only use the built-in hobs after you assemble
the hob into correct built-in units and work
surfaces that align to the standards.
During installation in combustible matter, NIN
SEV 1000 and fire protection guidelines and
regulations of the Association of Cantonal
Fire Insurance shall be strictly adhered to.
3.3 Connection cable
• The hob is supplied with a connection
cable.
• To replace the damaged mains cable, use
the cable type: H05V2V2-F which
withstands a temperature of 90 °C or
higher. A single wire must have a minimal
cross section in accordance with the table
below. Speak to your local Service Centre.
The connection cable may only be
replaced by a qualified electrician.
WARNING!
All electrical connections must be made
by a qualified electrician.
CAUTION!
Connections via contact plugs are
forbidden.
CAUTION!
Do not drill or solder the wire ends. It is
forbidden.
CAUTION!
Do not connect the cable without cable
end sleeve.

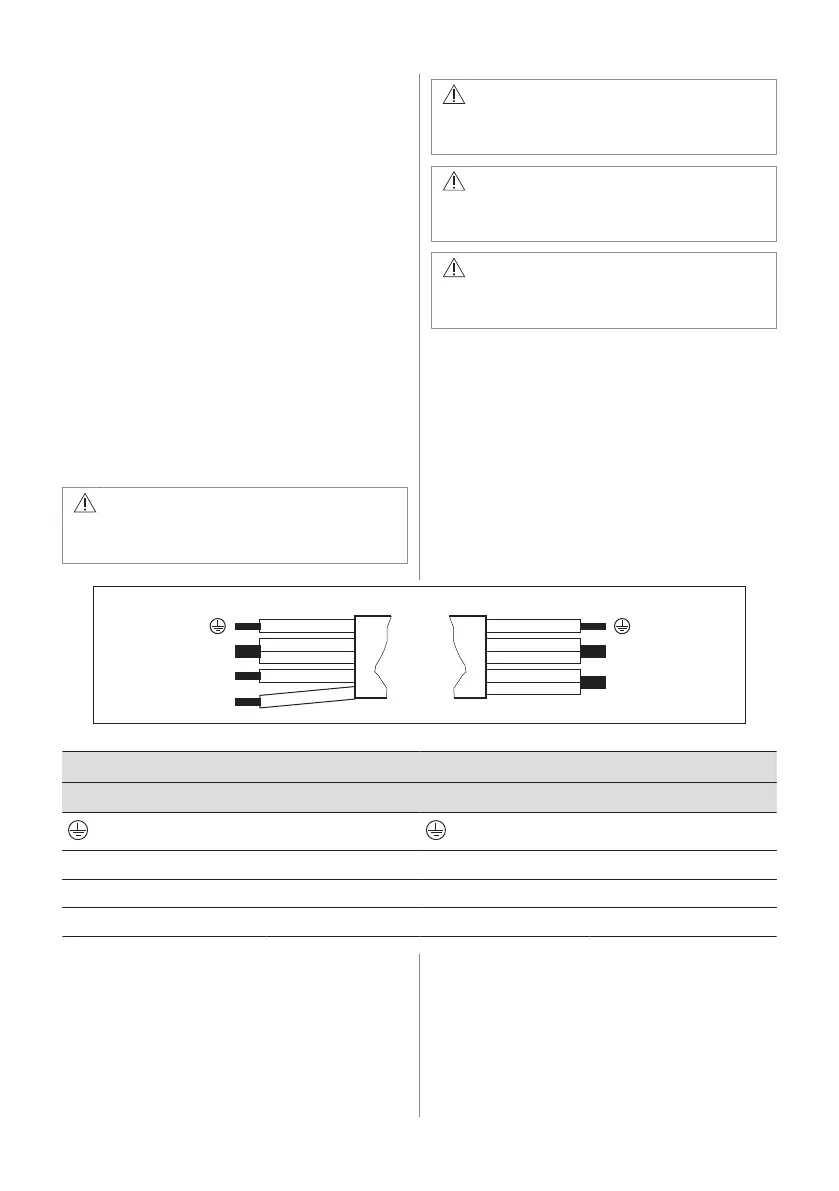

One-phase connection
1. Remove the cable end sleeve from black
and brown wires.
2. Remove a part of the insulation of the
brown and black cable ends.
3. Connect the ends of black and brown
cables.
4. Apply a new wire end sleeve on the
shared wire's end (special tool required).
N
L1
N
L
220-240 V~400V2N~
L2
Two-phase connection: 400 V2N~ One-phase connection: 220 - 240 V~
5x1,5 mm² or 4x2,5 mm² 5x1,5 mm² or 3x4 mm²
Green - yellow Green - yellow
N Blue and blue N Blue and blue
L1 Black L Black and brown
L2 Brown
3.4 Electrical connection
Install the hob with a socket supply line. If
there is no socket supply line, the fixed home
electrical system must include an isolating
device with at least a 3 mm-contact
separation to enable a simultaneous and all-
pole cut off from the mains (according to NIN
SEV 1000).
3.5 Attaching the seal - Integrated
installation
1. Clean the rabbets in the worktop.
ENGLISH 7
