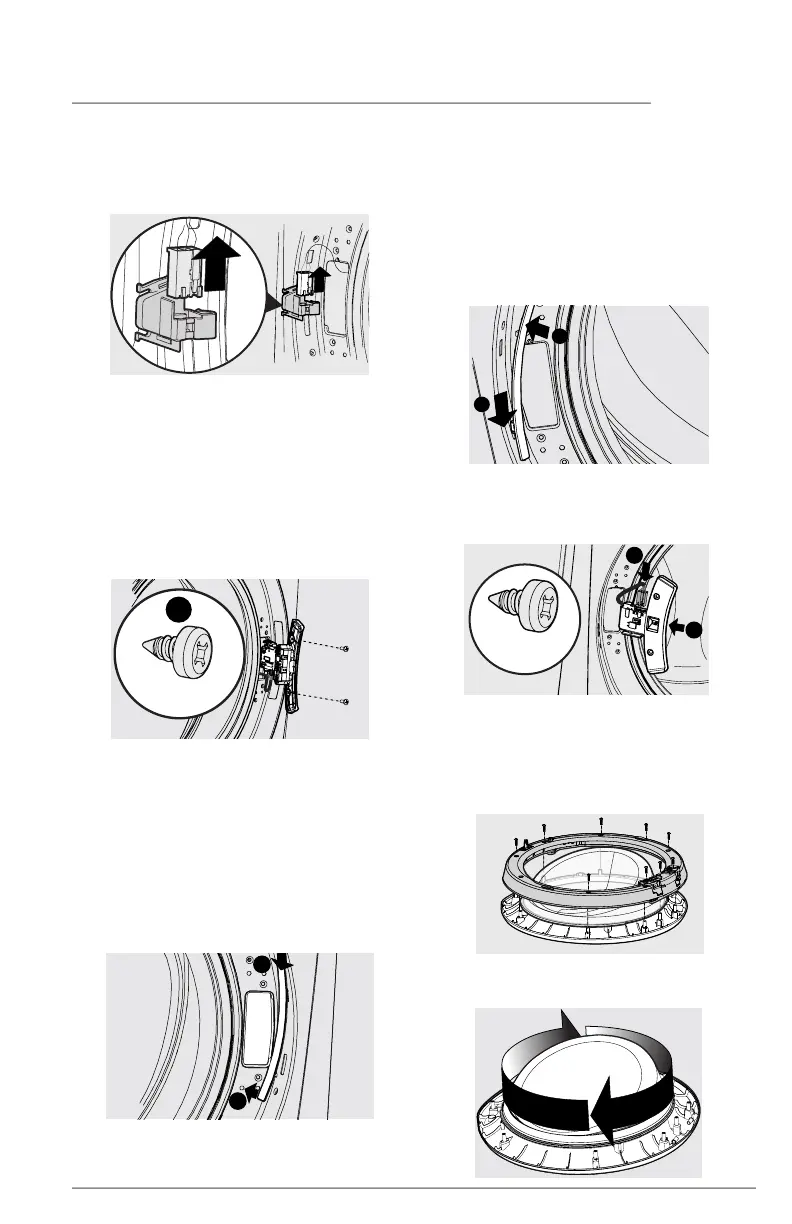

INSTALLATION
2
1
Reinstalling door lock and hole
cover
1. Move the plastic cover to the other side
of the front panel. Position the cover so
the “hook” is at the bottom. Insert hook
into lower slot, slide the cover down,
and press upper retention tabs into
opening until they snap into place.
2
1
2. Insert wiring harness into door lock.
3. Insert door lock into front panel and
reinstall door lock screws.
Reversing door assembly
1. Locate nine screws on inner door
ring. Remove each and save for
reinstallation later. Remove inner door
(with hinge) and carefully set aside.
2. Lift door bowl slightly and rotate 180
degrees, setting it back onto outer door.
Removing door lock and plastic
hole cover
1. Locate and remove both screws from
door lock. Save screws for later.
2. Rotate the lock as you pull it out
through the front panel. Take care not
to pull too hard or too far as the lock is
still attached to the wiring harness.
3. Disconnect the wiring harness
terminal from the door lock. Set the
door lock aside for reinstallation later.
4. Pry the bottom of the plastic hole
cover upward to release it from the
front panel. You may have to use a
non-scratching plastic knife if you are
unable to release it manually. Then,
slide the cover down slightly and
remove it from the front panel.
1
2
Coarse
Thread
2
1
x2
Coarse
Thread
6. Release wiring harness from retainer
on plastic terminal cap. Then release
terminal from terminal cap. Save the
cap to reinstall later.
