24
Installation manual

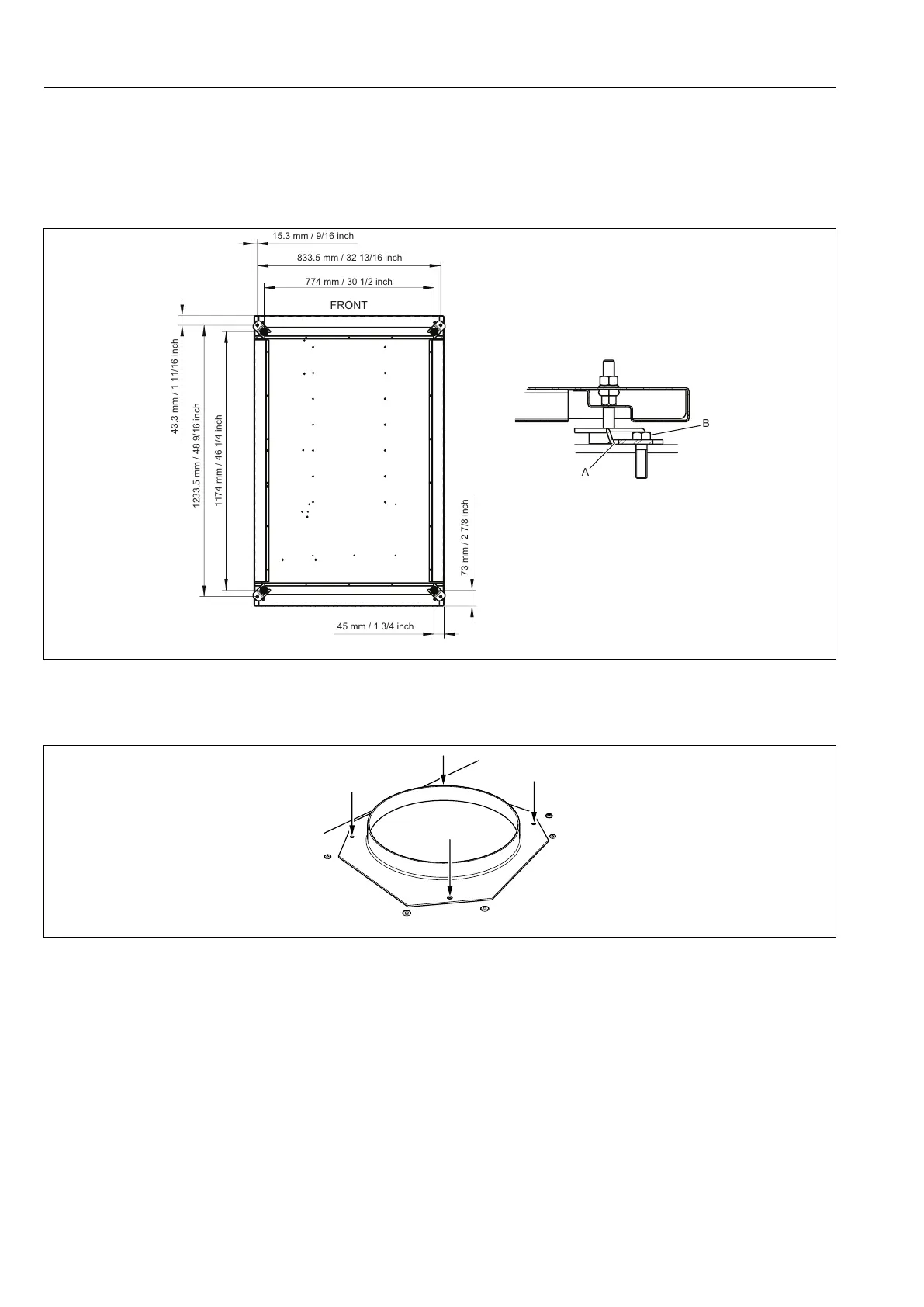

4.6.1 Securing the machine
To ensure steadiness of the machine it is important to fasten the machine to the foundation.
Fasten the four fittings (A) to the foundation using four x M10 set screws (B). If the four fittings are not supplied, order
kit No. 487193544.
Fasten the machine to the fittings.
A
B
15.3 mm / 9/16 inch
833.5 mm / 32 13/16 inch
774 mm / 30 1/2 inch
43.3 mm / 1 11/16 inch
1233.5 mm / 48 9/16 inch
1174 mm / 46 1/4 inch
45 mm / 1 3/4 inch
73 mm / 2 7/8 inch
FRONT
fig.X00161
4.6.2 Connection branch
Mount the enclosed branch at the top of the exhaust plenum with four screws.
fig.7655
