ELECTRO-VOICE

®

Zx5 Owner’s Manual

Suspending Zx5 Speaker Systems (cont’)

Suspending the Zx5 using optional Electro-Voice Single-Stud Rigging Kits

The Zx5 is shipped with three single-stud anchor plates for rigging with single-stud rigging. There

are two more locations on the bottom to mount single-stud anchor plates for flying the Zx5 upside-

down or horizontally. All of these locations can

facilitate M8 Eyebolts if desired as well.

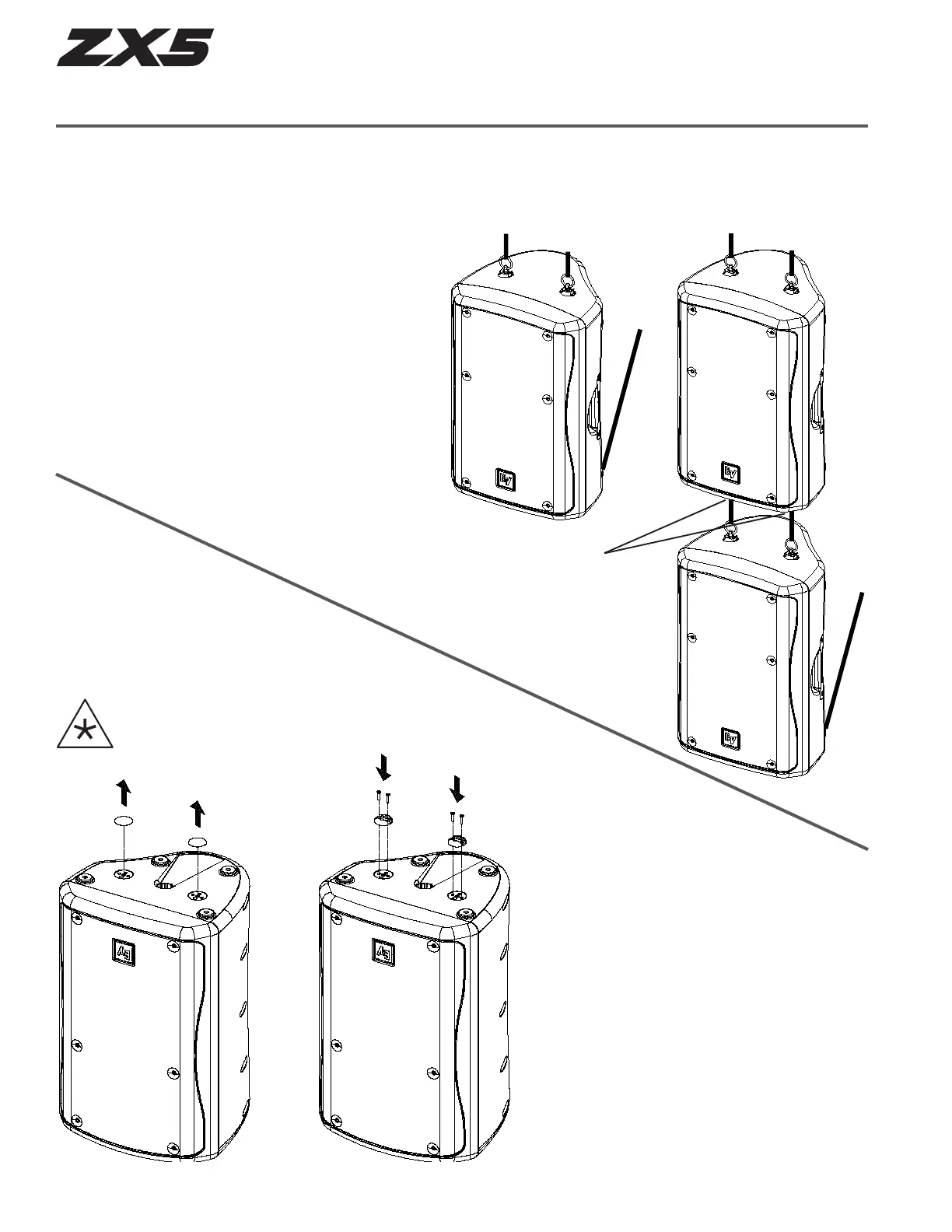

Figure 4:

Suspending the Zx5 Using Included Single-Stud

Anchor Plates

Kit Used (Left View) -

SSK-1 Single-Stud Rigging Kit (x1)

Kits Used (Right View) -

SSK-1 Single-Stud Rigging Kit (x2)

EBK-3 Forged M8 Eyebolt Kit (x1)*

Figure 5:

Suspending the Zx5 Upside-Down Using

Included Single-Stud Anchor Plates and Single-

Stud Rigging Kit

Kits Used -

RK-Z Single-Stud Anchor Plate Kit (x1)

SSK-1 Single-Stud Rigging Kit (x1)

Step 1: Remove Decals

Step 2: Attach Single-Stud Anchor Plates

Removed from the Top of the Enclosure or

optional RK-Z Kit (shown) or Eyebolts (not

shown)

7

*EBK-3 on Bottom of Top

Enclosure

(not shown, see Figure 3b)
