Zx5 Owner’s Manual

Suspending Zx5 Speaker Systems (cont’)

Arraying and Suspending the Zx5 using optional Electro-Voice Mounting or Array Brackets

Figures 10 and 11 show several applications using EV mounting and array brackets. Carefully

follow the instructions in this manual & the user manual packaged with EV brackets, and always

use safe rigging practices when suspending Zx5.

9

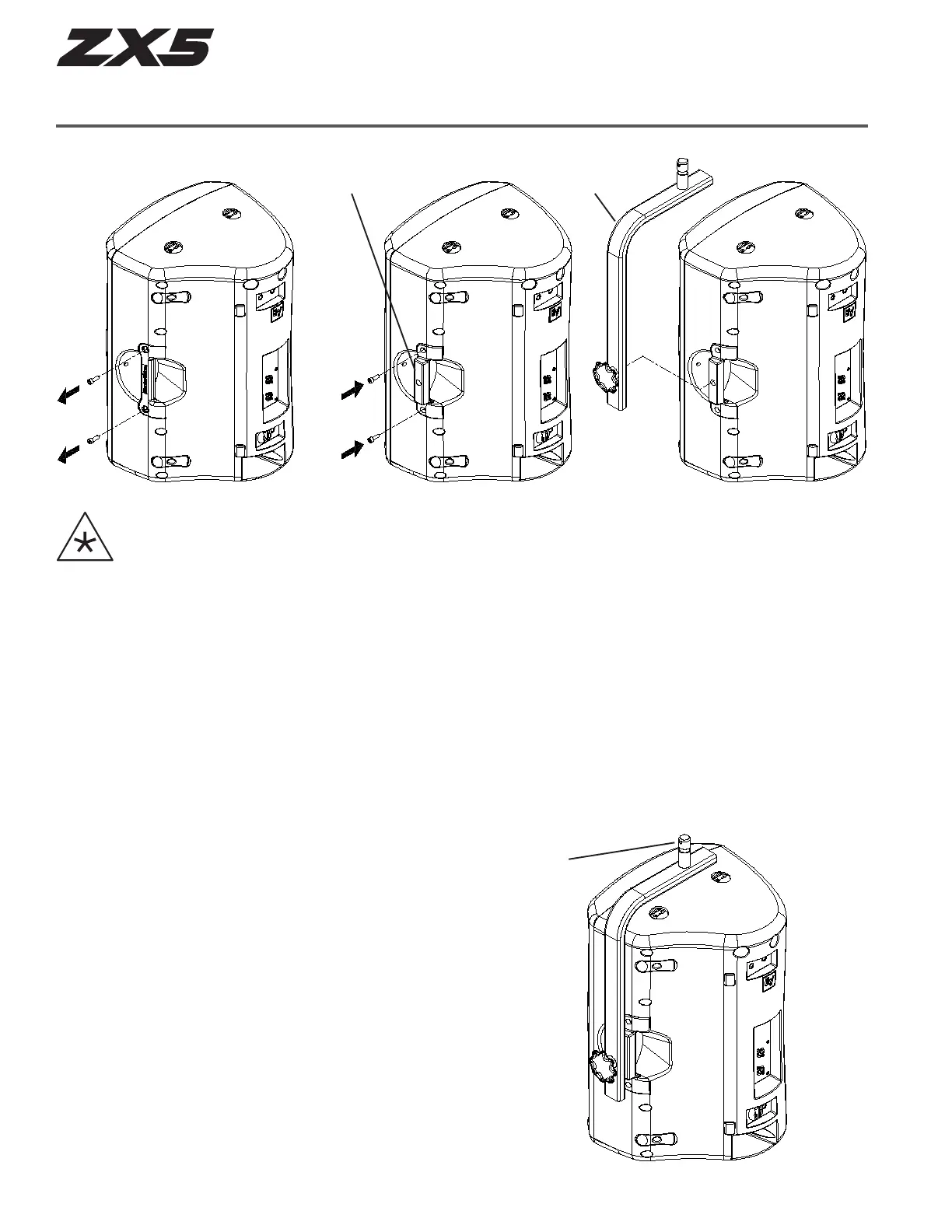

Figure 9:

Assembling HA-5 Adapter for use with PSA-V Strong-Arm Mount

Kits Used -

HA-5 Handle Adapter Kit (x1)

PSA-V Strong-Arm Mount (x1)

Figure 10:

Suspending the Zx5 Vertically from Handle Using Optional

Handle Adapter and Strong-Arm Mount

Kits Used -

HA-5 Handle Adapter Kit (x1)

PSA-V Strong-Arm Mount (x1)

Step 2: Attach HA-5 and Handle Bolts

Step 3: Attach PSA-V Strong-Arm Mount

Spigot to Attach to Beam or

Truss Clamp

*Note - Please consult PSA-V User Manual for additional

information.

HA-5 Handle Mount PSA-V Strong-Arm

Step 1: Remove Handle Bolts

and Handle
