ZLX-G2 Full-range loudspeaker Recommended configurations | en 41
Bosch Security Systems, LLC
User manual
2024-03 | 02 |
9.2.3 Stacking full-range systems with subwoofers
Possible configurations:
– ZLX-12-G2 loudspeaker with EKX-15S subwoofer.
– Dynacord L1800FD amplifier with 35Hz high pass filter from mixer or processor.
OR
– ZLX-15-G2 loudspeaker with EKX-18S subwoofer.
– Dynacord L1800FD amplifier with 30Hz high pass filter from mixer or processor.
This configuration allows a user to increase the low frequency performance without using
additional amplifier channels.

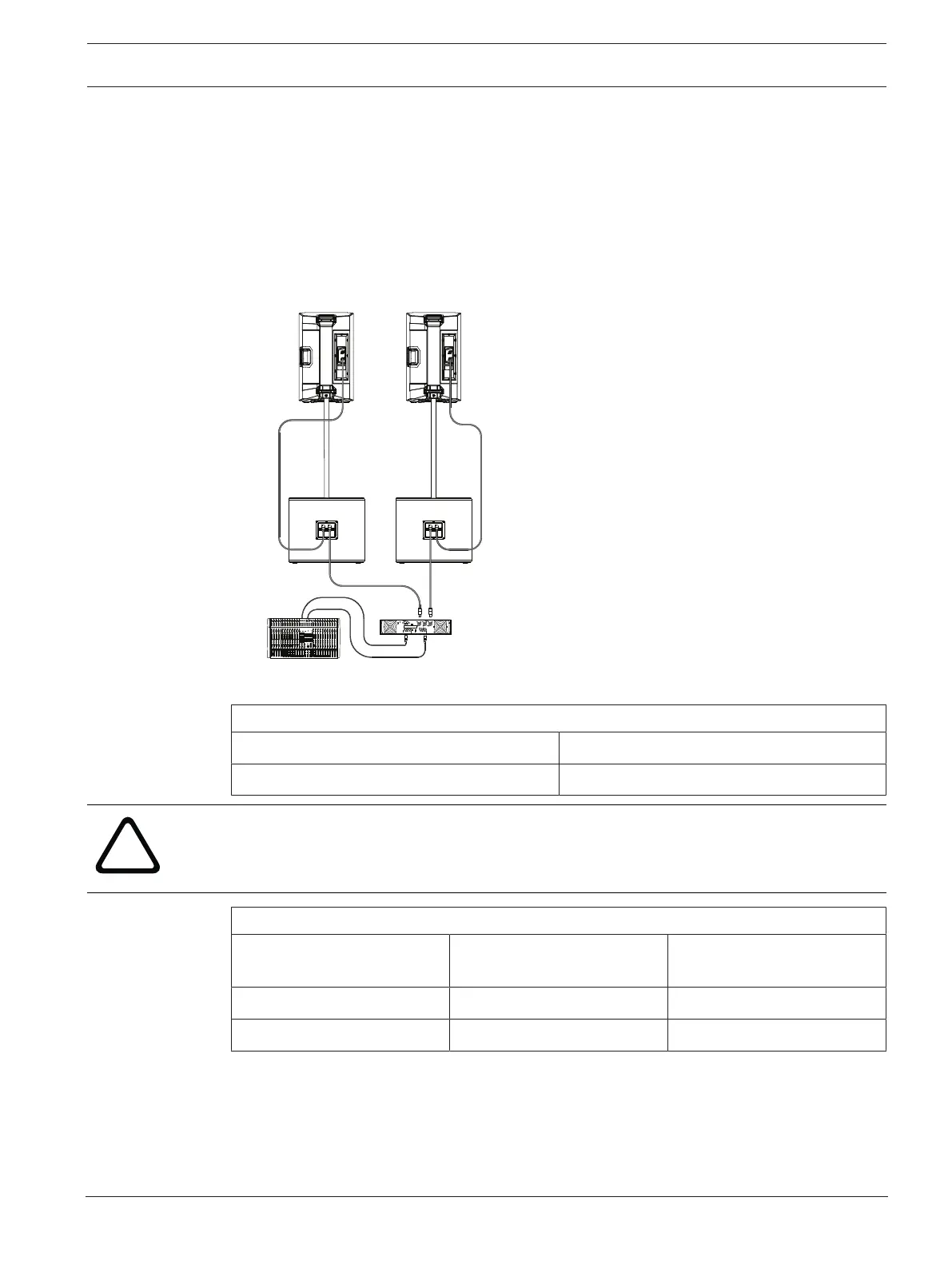

Input A
Input B
Output AOutput B
NL4 Pin Configuration
Pin 1+ and 1- Used
Pin 2+ and 2- Not used (pass-through)
!
Caution!
Do not exceed the maximum load rating of the amplifier.
Amplifier Load (per Output Channel)
# of Subwoofer/Full-Range
Combinations
Nominal Minimum
1 4 Ohms 3.8 Ohms
2 2 Ohms 1.9 Ohms
