MA-606 User Manual

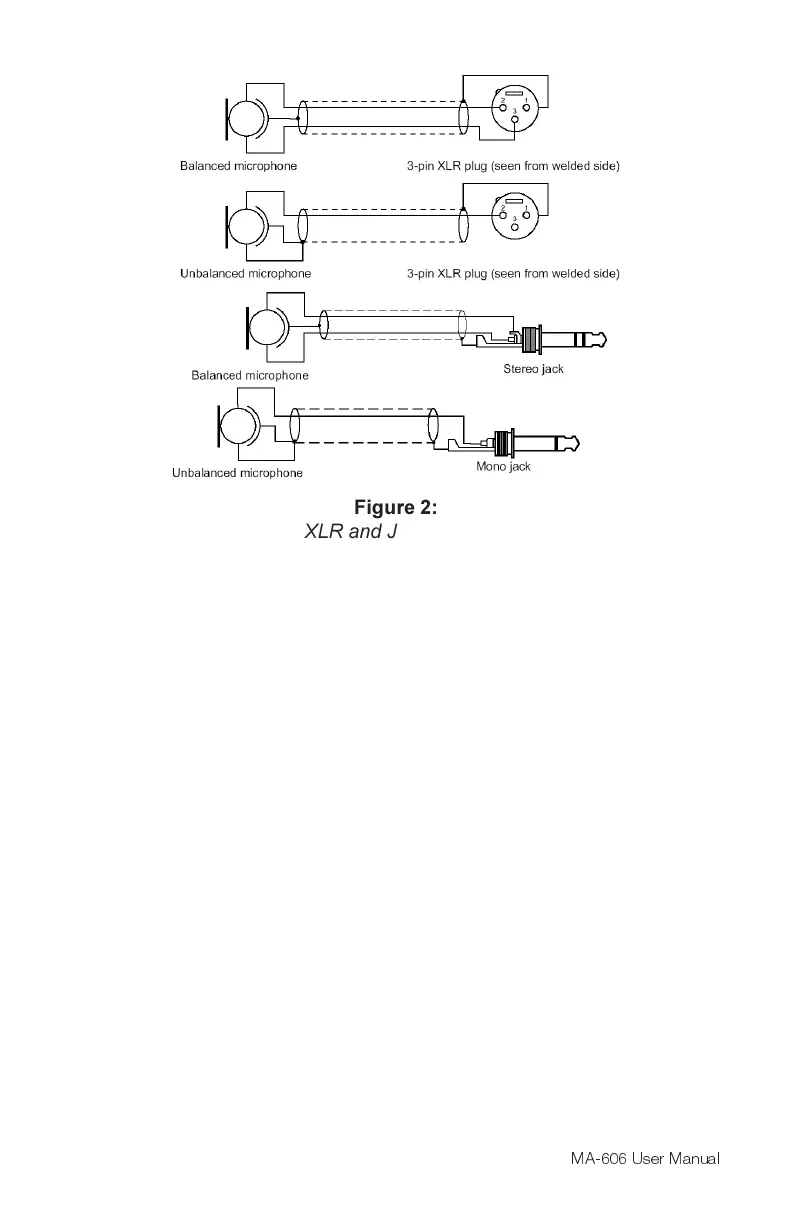

Figure 2:
XLR and Jack Inputs
Figure 2 shows the wiring configurations of both unbalanced and
balanced microphones using either ¼ or XLR type connectors.
Phantom Power: Phantom power allows the use of microphones without
separate power supplies on the Mic inputs. When phantom power is on,
24 V dc is produced at pins 2 and 3 on the Mic inputs. To enable
phantom power simply move the selector switch to the 24v position
above the desired input connector.
Microphone auto muting input: When a microphone or other source is
connected to input 1 and the front panel mute switch in the on position,
advance the threshold control to the point where the typical voice, and
not noise in the room, will operate the mute circuit. The microphones on/
off switch may be on, with the actual voice announcement triggering the
mute. If you want to defeat the muting function, place the mute switch in
the off (defeat) position.
Auxiliary 1 and 2: High-level unbalanced sources may be connected to
the Aux 1 and 2 jacks on the back panel.
Appropriate sources include a tape player, compact-disc player, AM/FM
tuner, mixer-preamplifier, wireless microphone or turntable equipped with
a ceramic or crystal cartridge. Use a single-conductor shielded cable.
Turntables usually have a separate ground wire. Connect this wire to the
ground terminal on the back panel to minimize hum.
Page 5
